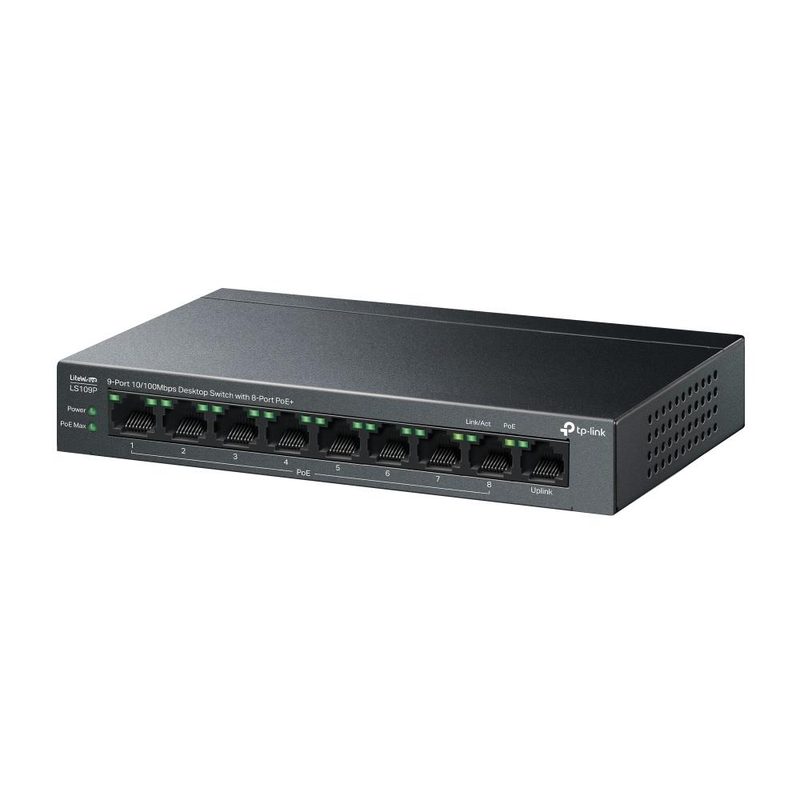

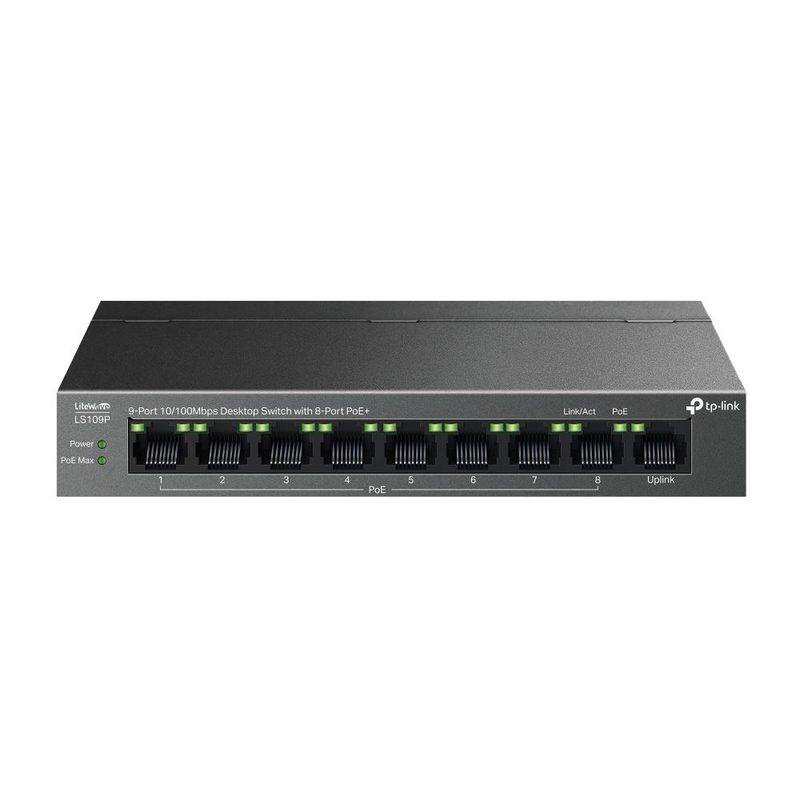

TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-LinkModel LS109P
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Unmanaged
- Certification
- CE, FCC, RoHS
- User guide
- Yes
- Quality of Service (QoS) support
- Yes
Overview
TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Fanless is Yes. User guide is Yes. Heat dissipation is 249 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Unmanaged |
|---|---|
| Certification | CE, FCC, RoHS |
| User guide | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 171 mm |
|---|---|
| Depth | 98 mm |
| Height | 27 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Product colour | Black |
|---|---|
| Number of fans | 0 fan(s) |
| Wall mountable | Yes |
| Heat dissipation | 249 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Power consumption (max) | 73.24 W |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 1.31 A |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.8 Gbit/s |
| Forwarding rate | 1.3392 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
