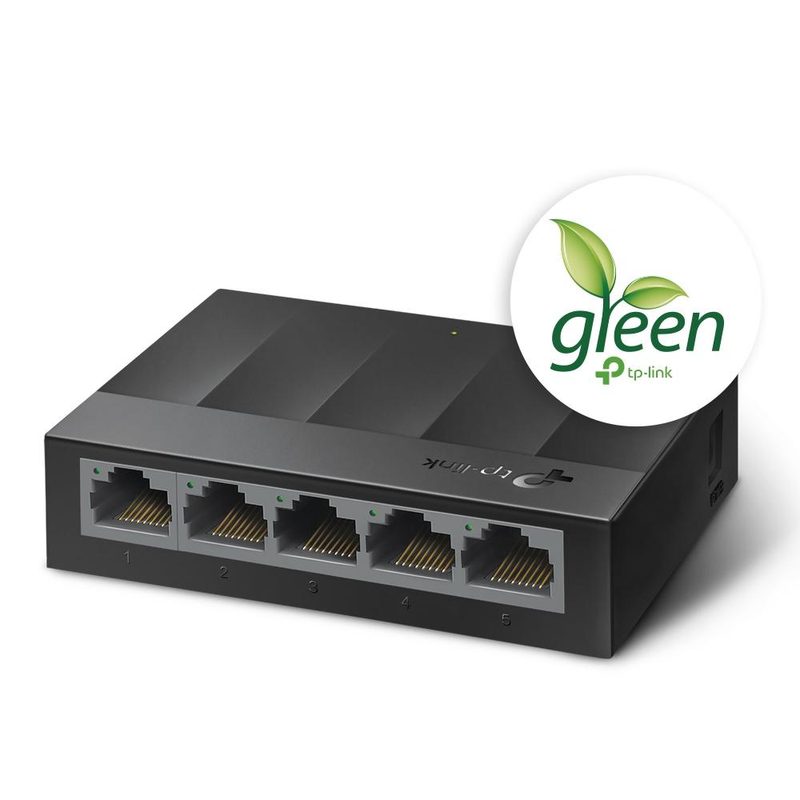

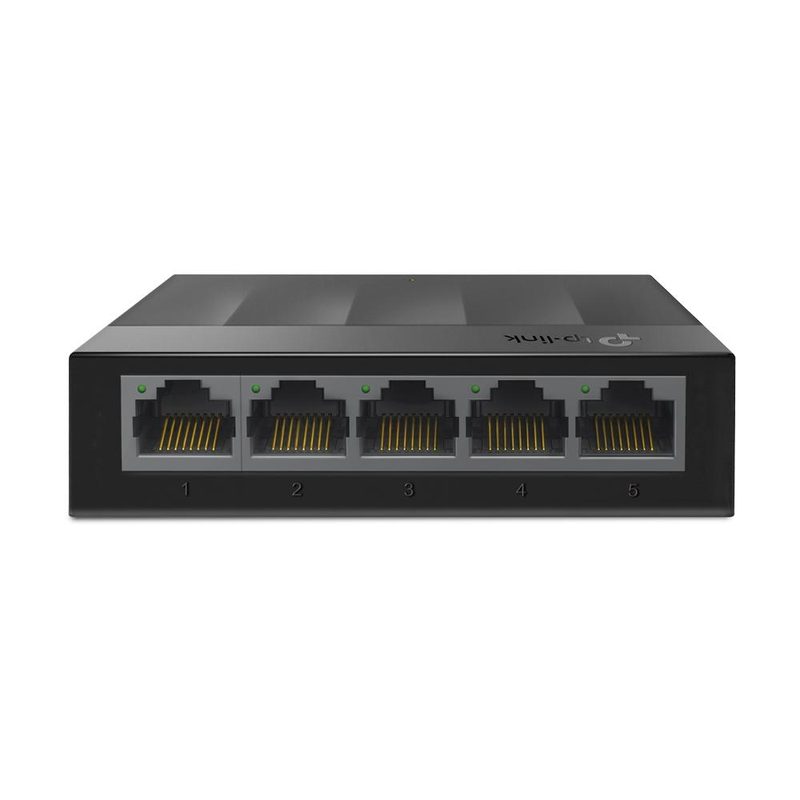

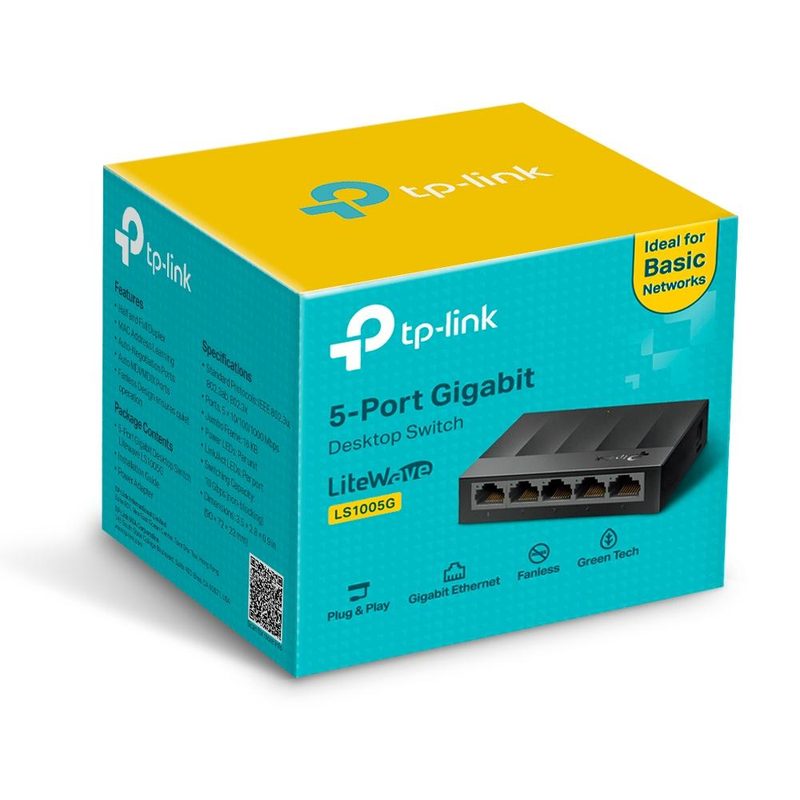

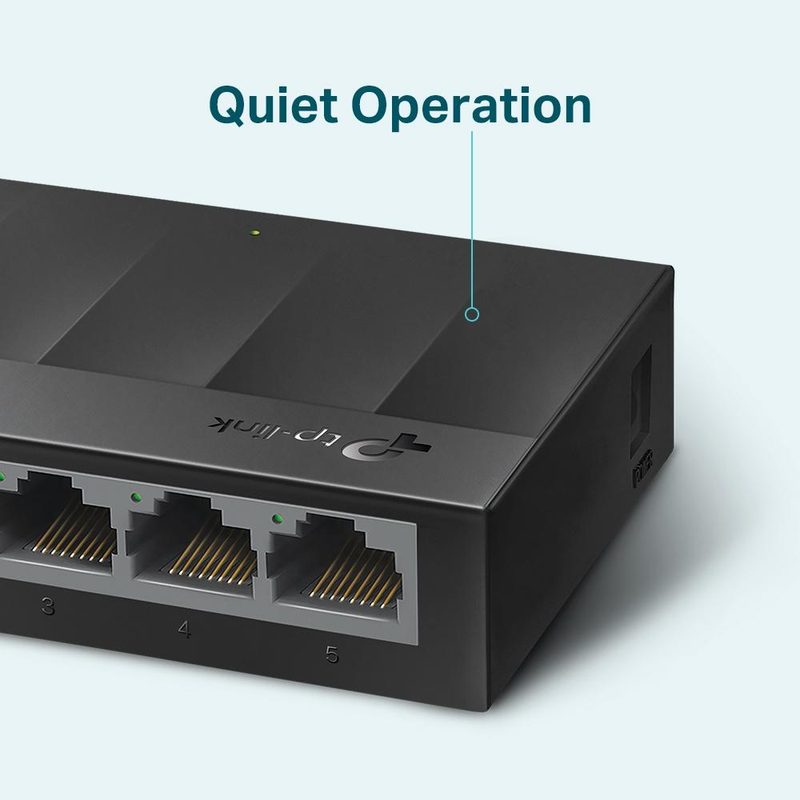

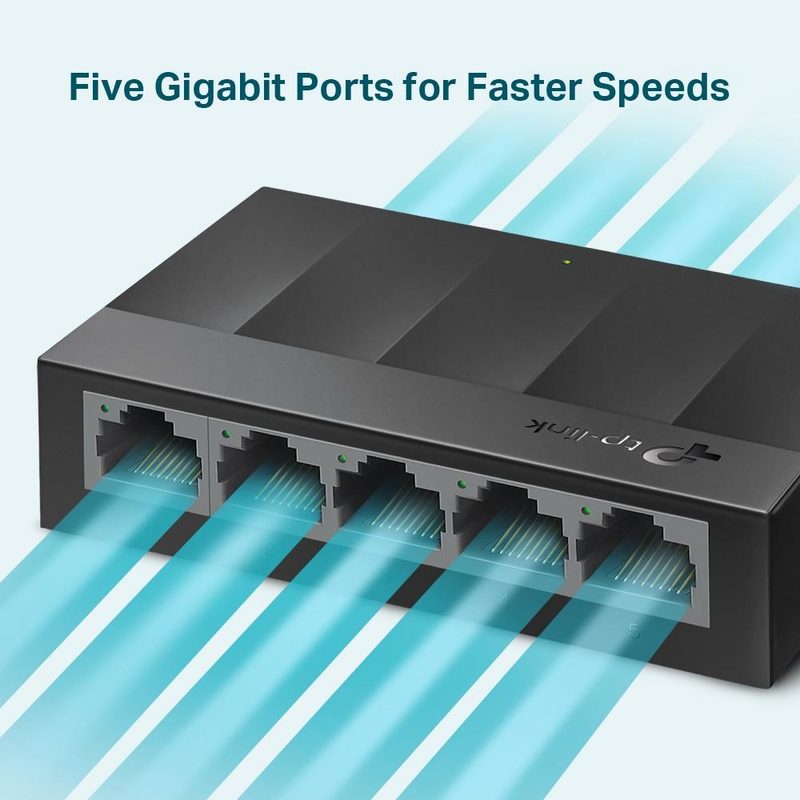

TP-Link LS1005G Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-LinkModel LS1005G(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Switch type
- Unmanaged
- Certification
- CE, FCC, RoHS
- Product colour
- Black
Overview
TP-Link LS1005G Unmanaged Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Harmonized System (HS) code is 85176990. Fanless is Yes. Packet buffer memory is 1.5 MB. International Protection (IP) code is IP20, IP40. Heat dissipation is 12.617 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Switch type | Unmanaged |
|---|---|
| Certification | CE, FCC, RoHS |
| Product colour | Black |
|---|---|
| Housing material | Plastic |
| Rack mounting | No |
| Wall mountable | Yes |
| International Protection (IP) code | IP20, IP40 |
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 90 mm |
|---|---|
| Depth | 72 mm |
| Height | 23 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 12.617 BTU/h |
|---|
| Power consumption (max) | 3.7 W |
|---|---|
| Input current | 0.6 A |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
