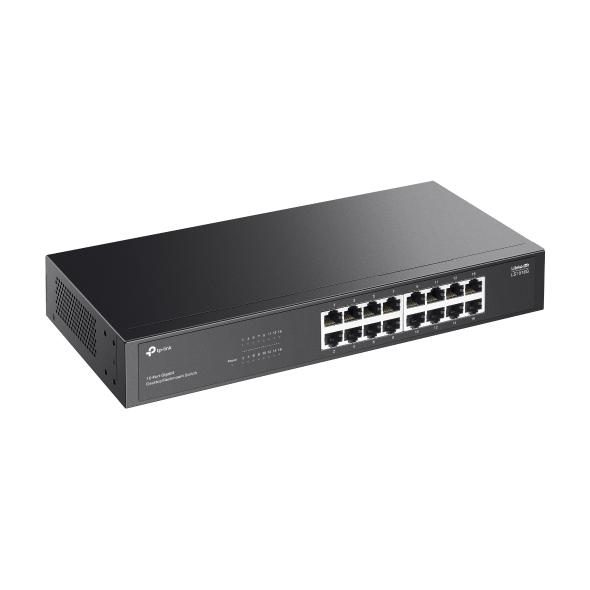

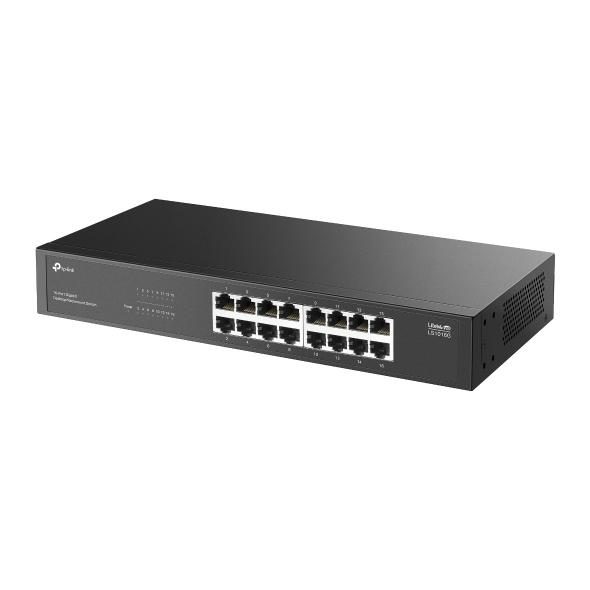

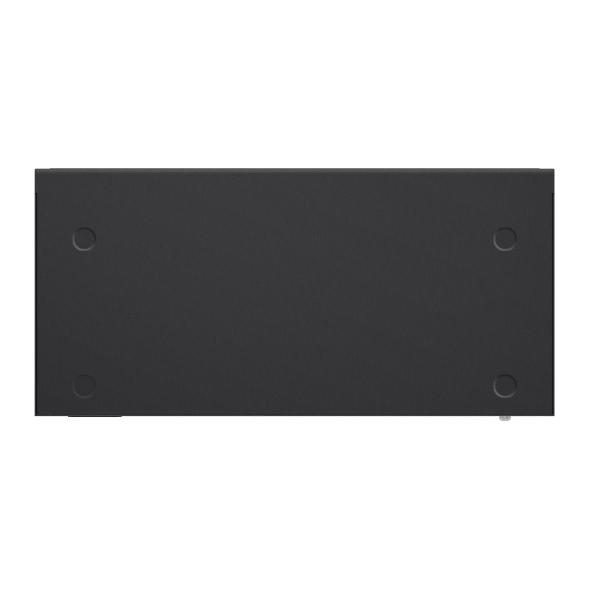

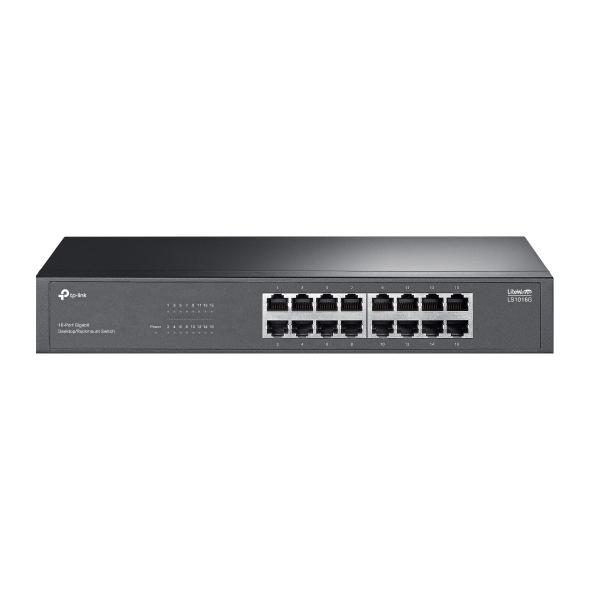

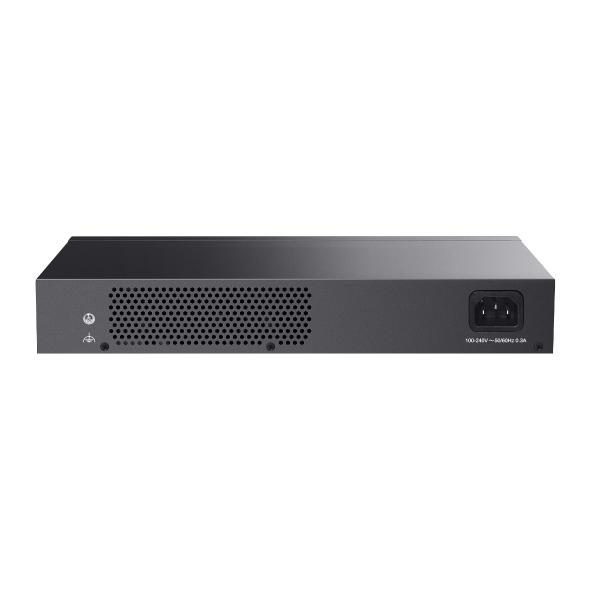

TP-Link LS1016G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-LinkModel LS1016G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Certification
- FCC, CE, RoHs
- Product colour
- Black
Overview
TP-Link LS1016G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a certification of FCC, CE, RoHs and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHs. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. Heat dissipation is 24.42 BTU/h. Switch type is Unmanaged. Auto-negotiation is Yes. Rack mount kit is Yes. Height is 44 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Unmanaged |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, CE, RoHs |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 24.42 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Input current | 0.3 A |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.808 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
