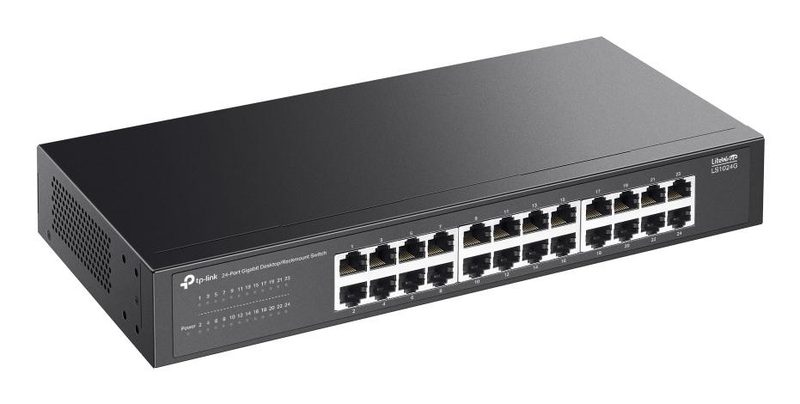

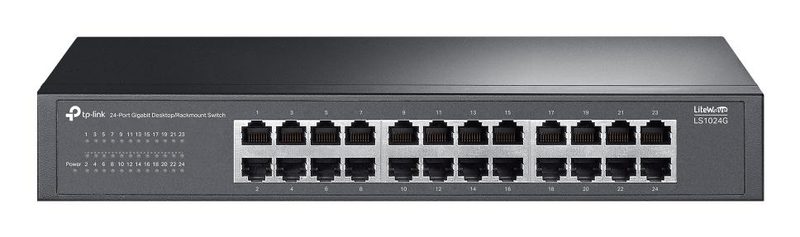

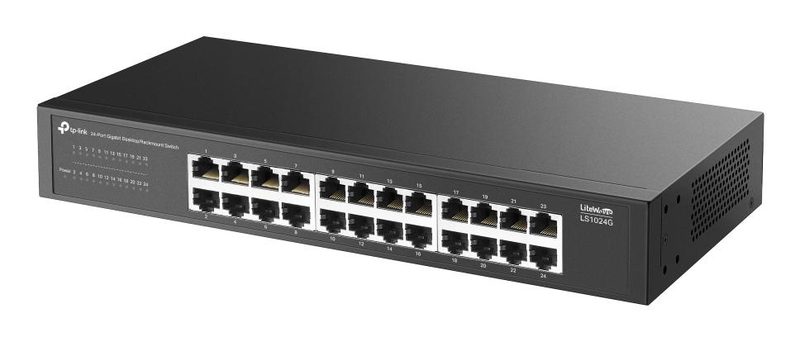

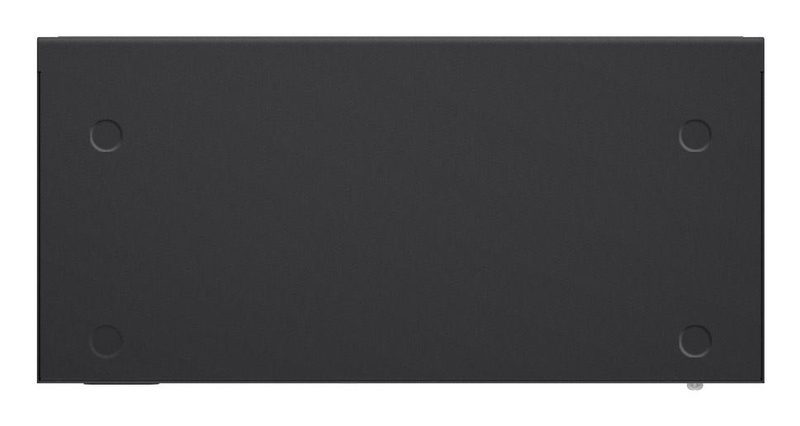

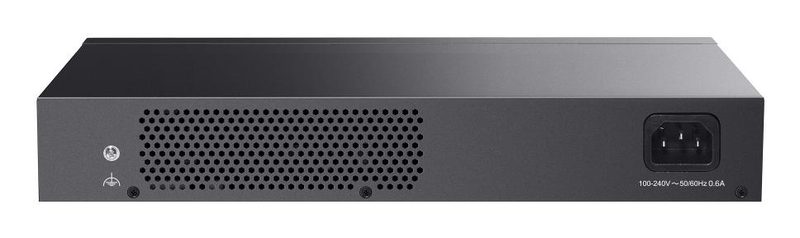

TP-Link LS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-LinkModel LS1024G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Unmanaged
- Product colour
- Black
- Rack mounting
- No
Overview
TP-Link LS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a mean time between failures (mtbf) of 1183684 h and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Mean time between failures (MTBF) is 1183684 h. Fanless is Yes. User guide is Yes. Packet buffer memory is 2 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Heat dissipation is 42.77 BTU/h. Switch type is Unmanaged. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Unmanaged |
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
|---|---|
| Mean time between failures (MTBF) | 1183684 h |
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 42.77 BTU/h |
|---|
| Cables included | Power |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 12.6 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| Power supply included | Yes |
| Power source | AC |
| Fanless | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.712 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
