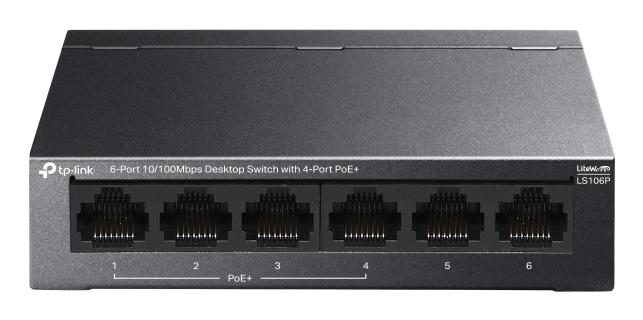

TP-Link LS106P network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Black
TP-LinkModel LS106P
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Unmanaged
- Certification
- CE, ROHS, KC, NTRA
- User guide
- Yes
- Width
- 99.8 mm
Overview
TP-Link LS106P network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Black is a TP-Link switches & adapter with a certification of CE, ROHS, KC, NTRA and a user guide of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, ROHS, KC, NTRA. User guide is Yes. Packet buffer memory is 0.002048 MB. Heat dissipation is 226.19 BTU/h. Switch type is Unmanaged. Total Power over Ethernet (PoE) budget is 65 W. Height is 25 mm. Depth is 98 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Unmanaged |
|---|---|
| Certification | CE, ROHS, KC, NTRA |
| User guide | Yes |
|---|
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Power, PoE, Link |
|---|
| Heat dissipation | 226.19 BTU/h |
|---|
| Power over Ethernet (PoE) ports quantity | 4 |
|---|---|
| Total Power over Ethernet (PoE) budget | 65 W |
| Power consumption (max) | 66.53 W |
|---|---|
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Stackable | No |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| Form factor | Desktop |
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.893 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.002048 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Switch layer | L2 |
|---|
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
