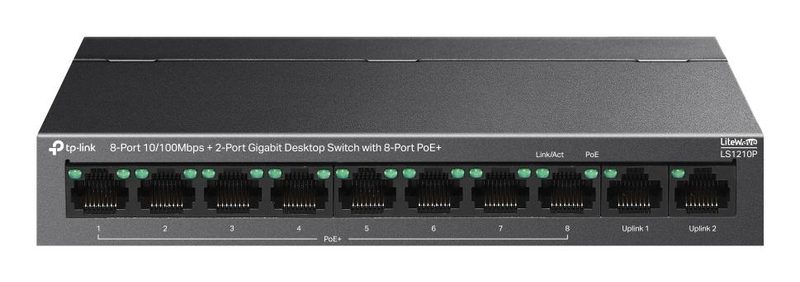

TP-Link LS1210P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
TP-LinkModel LS1210P
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Unmanaged
- Certification
- CE, RoHS
- User guide
- Yes
- Width
- 171 mm
Overview
TP-Link LS1210P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black is a TP-Link switches & adapter with a certification of CE, RoHS and a user guide of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, RoHS. User guide is Yes. Packet buffer memory is 2 MB. Heat dissipation is 338.368 BTU/h. Switch type is Unmanaged. Total Power over Ethernet (PoE) budget is 96 W. Height is 27 mm. Depth is 98 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Unmanaged |
|---|---|
| Certification | CE, RoHS |
| User guide | Yes |
|---|
| Width | 171 mm |
|---|---|
| Depth | 98 mm |
| Height | 27 mm |
| LED indicators | Link, PoE, Power |
|---|
| Heat dissipation | 338.368 BTU/h |
|---|
| Total Power over Ethernet (PoE) budget | 96 W |
|---|
| Power consumption (max) | 99.52 W |
|---|---|
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1.92 A |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Stackable | No |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| Form factor | Desktop |
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 5.6 Gbit/s |
| Forwarding rate | 4.1664 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Switch layer | L2 |
|---|
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
