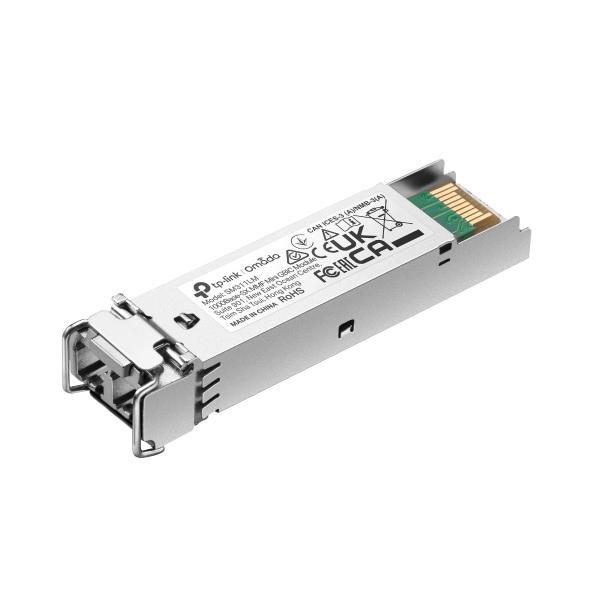

TP-Link Omada 1000-Base-SX MMF Mini GBIC Module (8-Pack)
TP-LinkModel SM311LM(8-PACK)
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Interface type
- mini-GBIC/SFP
- Certification
- FCC, CE
- Harmonized System (HS) code
- 85369010
Overview
TP-Link Omada 1000-Base-SX MMF Mini GBIC Module (8-Pack) is a TP-Link switches & adapter with a certification of FCC, CE and a harmonized system (hs) code of 85369010. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE. Harmonized System (HS) code is 85369010. User guide is Yes. Compliance certificates is RoHS. Interface type is mini-GBIC/SFP. Height is 12.9 mm. Depth is 13.7 mm. Width is 55.4 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 2 year. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Interface type | mini-GBIC/SFP |
| Certification | FCC, CE |
| Harmonized System (HS) code | 85369010 |
|---|
| Quantity per pack | 8 pc(s) |
|---|---|
| User guide | Yes |
| Networking standards | IEEE 802.3z |
|---|
| Maximum data transfer rate | 1250 Mbit/s |
|---|
| Width | 55.4 mm |
|---|---|
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Package width | 148 mm |
|---|---|
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Input voltage | 3.3 V |
|---|
| Product colour | Metallic |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum transfer distance | 550 m |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Wavelength | 850 nm |
| Fiber optic connector | LC (UPC) |
|---|
Warranty
2 year
