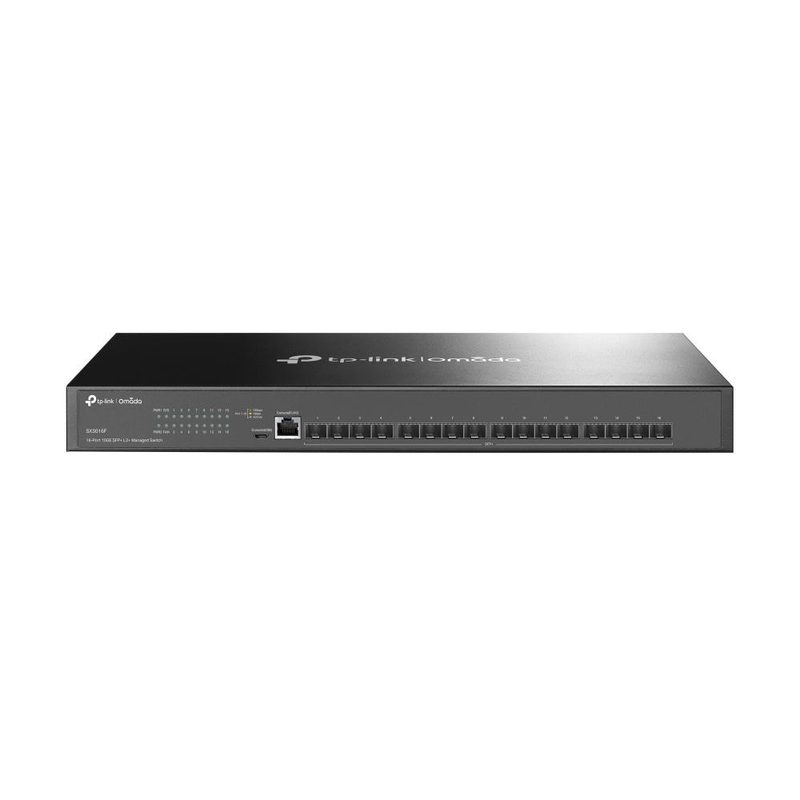

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
TP-LinkModel SX3016F
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Product colour
- Black
- Rack mounting
- Yes
Overview
TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch is a TP-Link switches & adapter with a power connector of DC-in jack and a certification of CE, FCC, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Certification is CE, FCC, RoHS. Management protocols is SNMPv1/v2c/v3, SNTP. MIB support is RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213. IPv4 & IPv6 features is IPv6 Telnet, IPv6 ping, IPv6 tracert. Number of VLANs is 4000. Virtual LAN features is Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 24 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 111.71 BTU/h |
|---|
| Manual | Yes |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power consumption (max) | 32.74 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| IP-MAC-Port binding | Yes |
|---|---|
| MAC address filtering | Yes |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 320 Gbit/s |
| Forwarding rate | 238.08 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| Port mirroring | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/Micro-USB |
| Power connector | DC-in jack |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2+/L3 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
