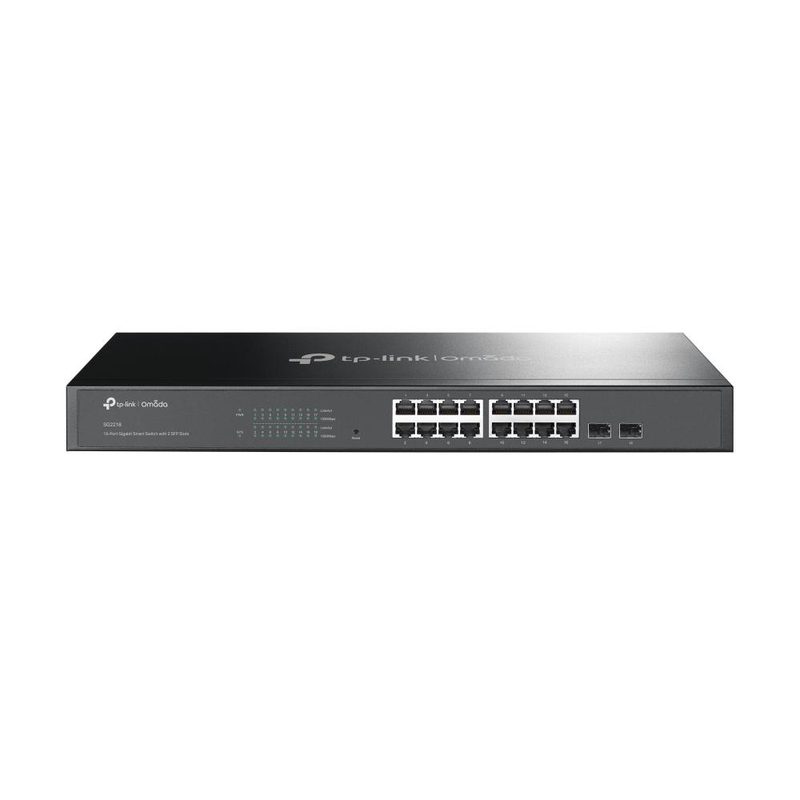

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
TP-LinkModel SG2218
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Certification
- CE, FCC, RoHS
- Product colour
- Black
Overview
TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a management protocols of SNMPv1/v2c/v3, SNTP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Management protocols is SNMPv1/v2c/v3, SNTP. MIB support is Yes. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. Number of VLANs is 4000. Virtual LAN features is Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 4.1 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, RoHS |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 41.97 BTU/h |
|---|
| Power consumption (max) | 12.3 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
|---|---|
| System event log | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.8 Mpps |
| Store-and-forward | Yes |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
