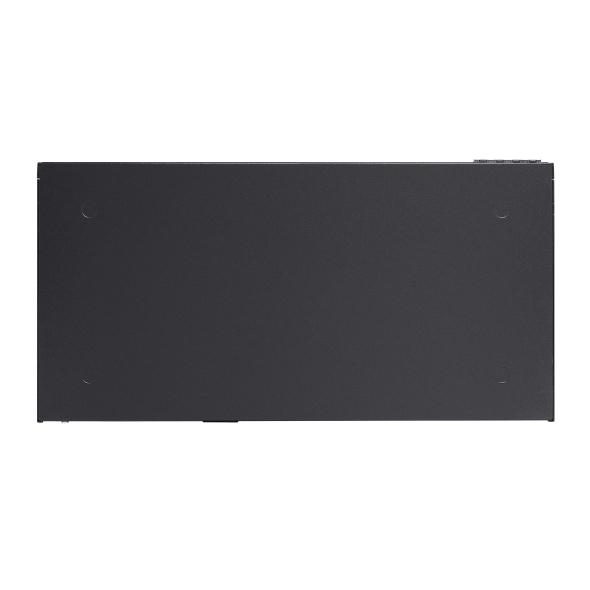

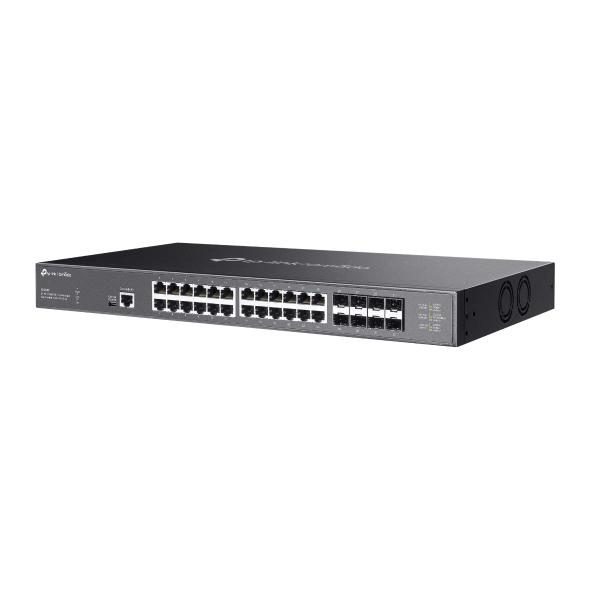

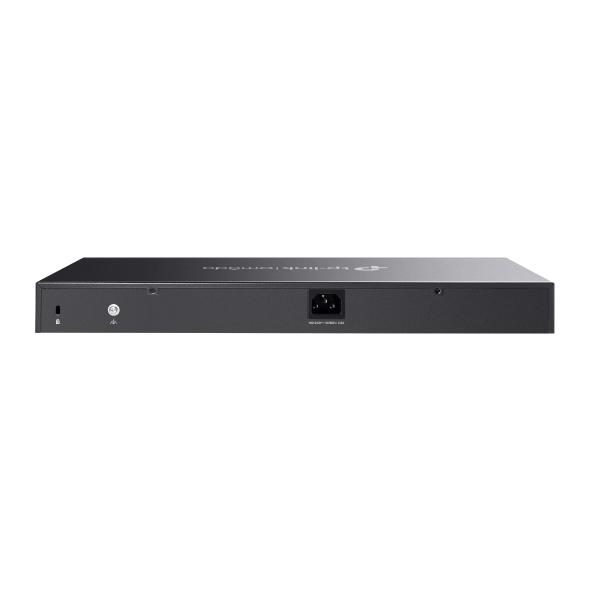

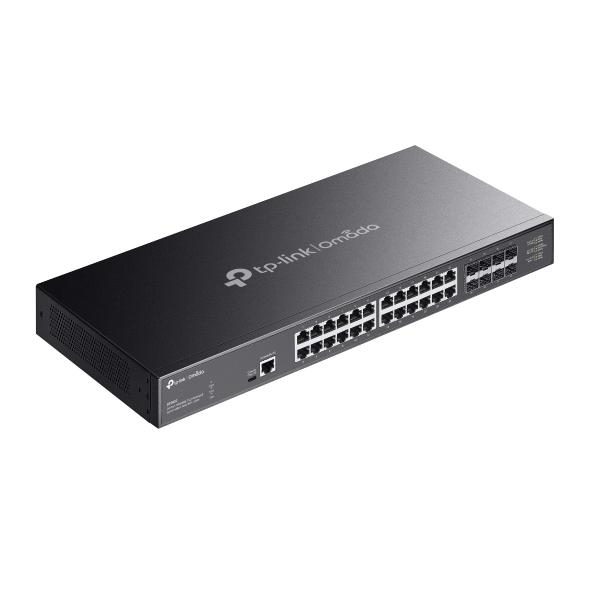

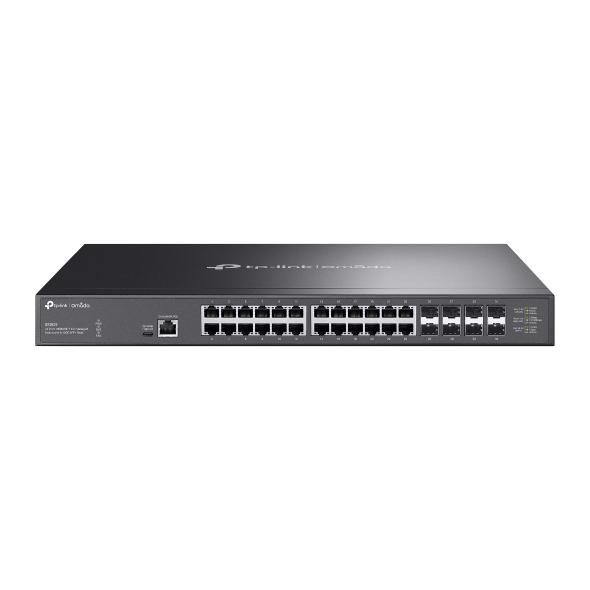

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
TP-LinkModel SX3832
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100 Mbit/s
- Rate limiting
- Yes
- Width
- 440 mm
Overview
TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots is a TP-Link switches & adapter with a ethernet lan data rates of 10,100 Mbit/s and a virtual lan features of MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN data rates is 10,100 Mbit/s. Virtual LAN features is MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN. Packet buffer memory is 24 MB. Heat dissipation is 363.23 BTU/h. Switch type is Managed. Flow control support is Yes. Rack mount kit is Yes. Authentication is Auto VLAN, MAC-based authentication, Port-based authentication. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 363.23 BTU/h |
|---|
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Power consumption (max) | 106.5 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Multicast support | Yes |
|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
|---|---|
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.3az |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB Type-C ports quantity | 1 |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
