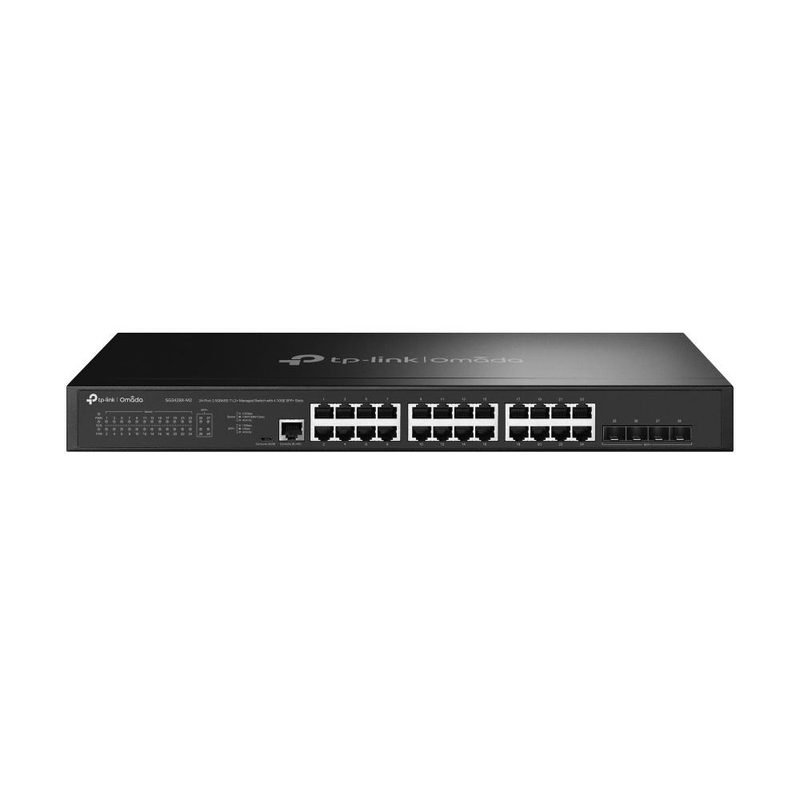

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
TP-LinkModel SG3428X-M2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Cables included
- LAN (RJ-45)
Overview
TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots is a TP-Link switches & adapter with a power connector of AC-in jack and a certification of CE, FCC, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Certification is CE, FCC, RoHS. Management protocols is SNMP v1/v2c/v3, SNTP. MIB support is Yes. IPv6 FIB entries is 100. IPv4 FIB entries is 100. IPv4 & IPv6 features is IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert. Virtual LAN features is Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Managed |
| Certification | CE, FCC, RoHS |
| Cables included | LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Product colour | Black |
|---|---|
| Number of fans | 1 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 154.38 BTU/h |
|---|
| Power consumption (max) | 45.1 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| IPv4 FIB entries | 100 |
| IPv6 FIB entries | 100 |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 200 Gbit/s |
| Forwarding rate | 148.8 Mpps |
| Store-and-forward | Yes |
| Number of static routes | 48 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Head-of-line (HOL) blocking | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
