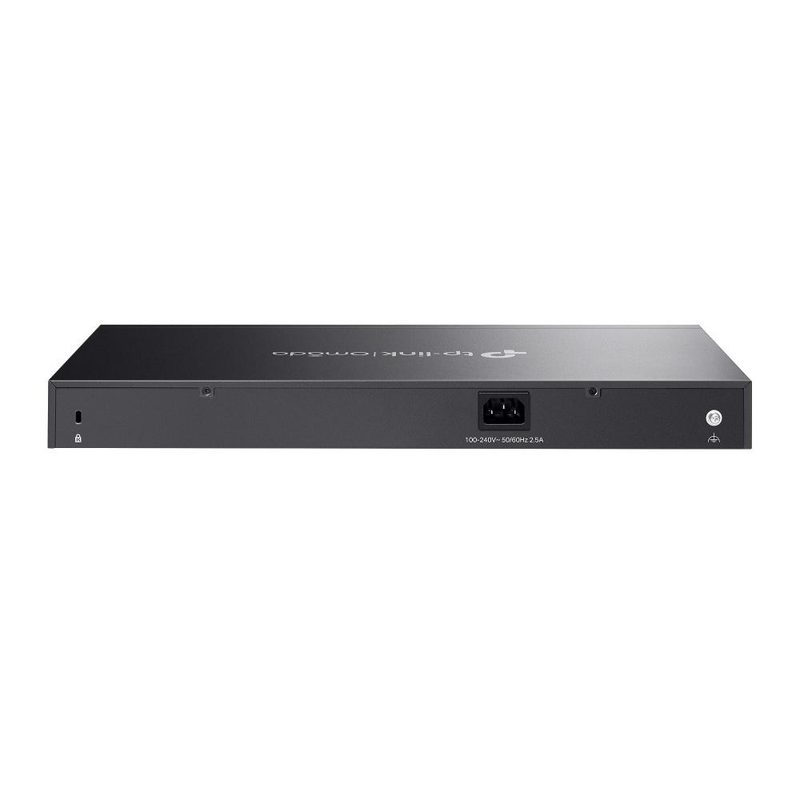

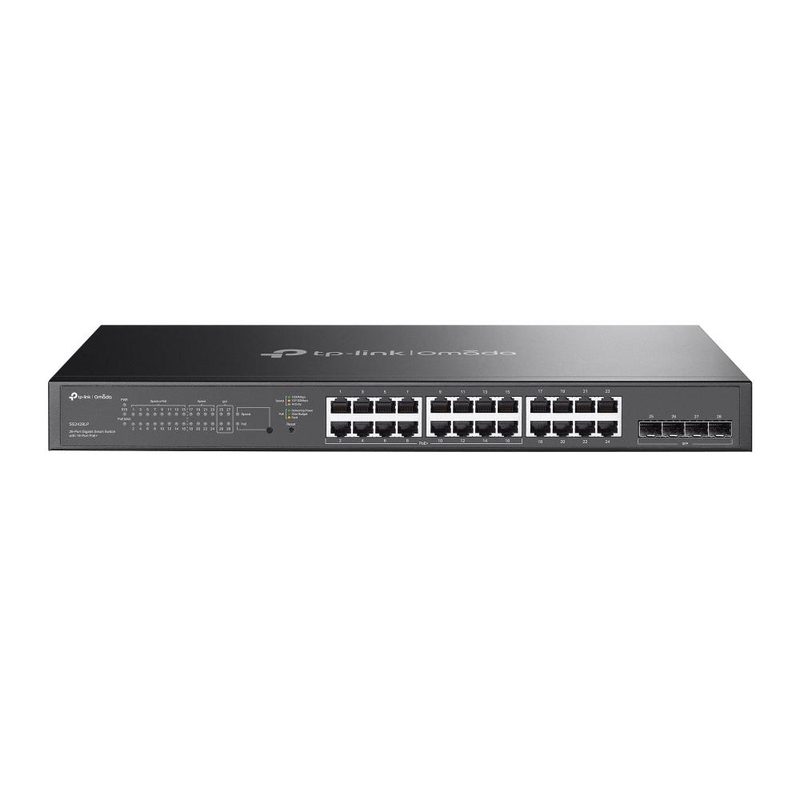

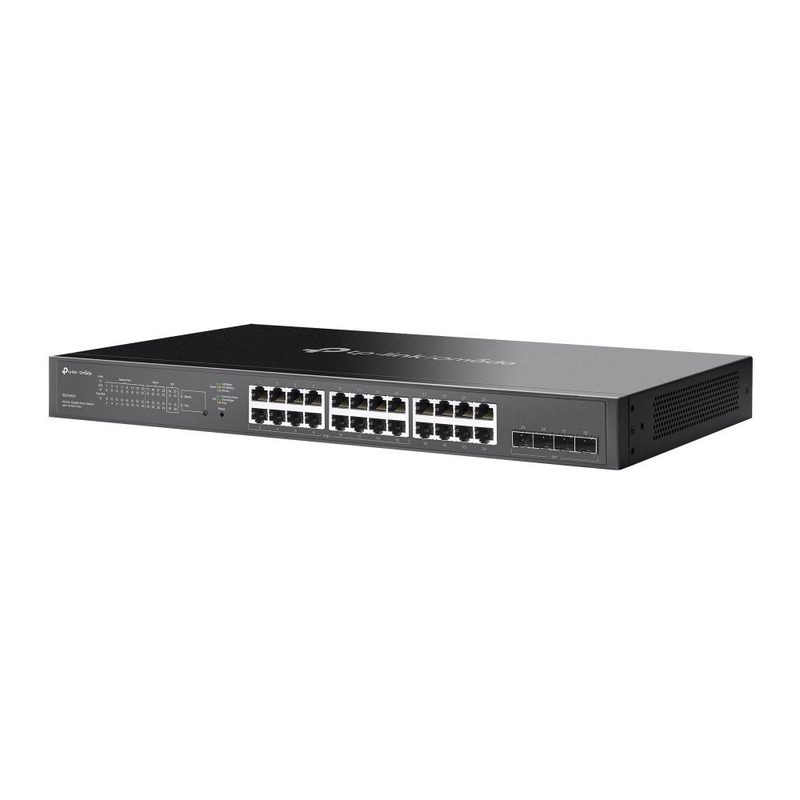

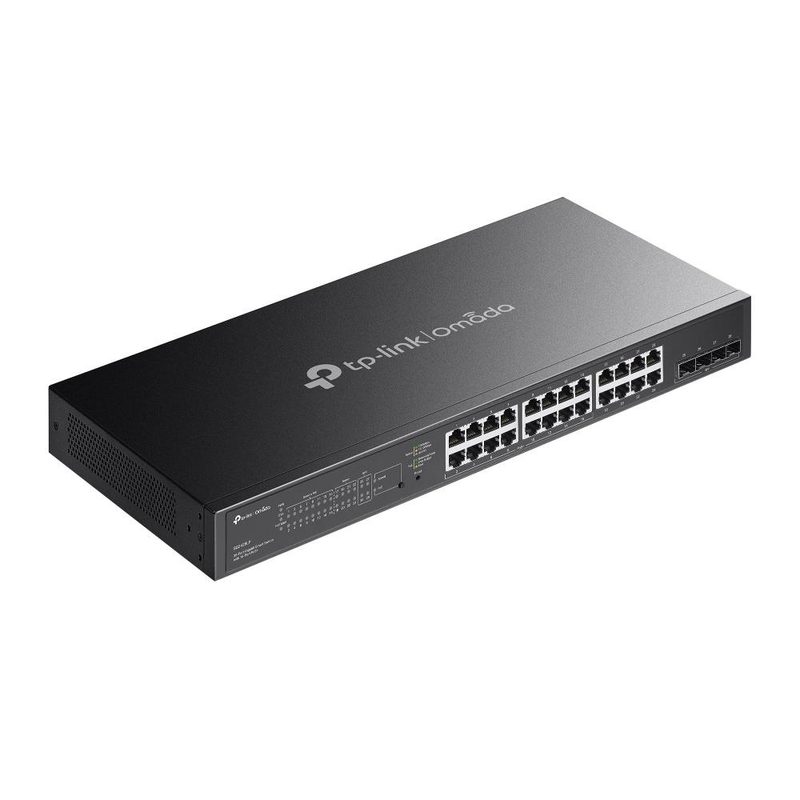

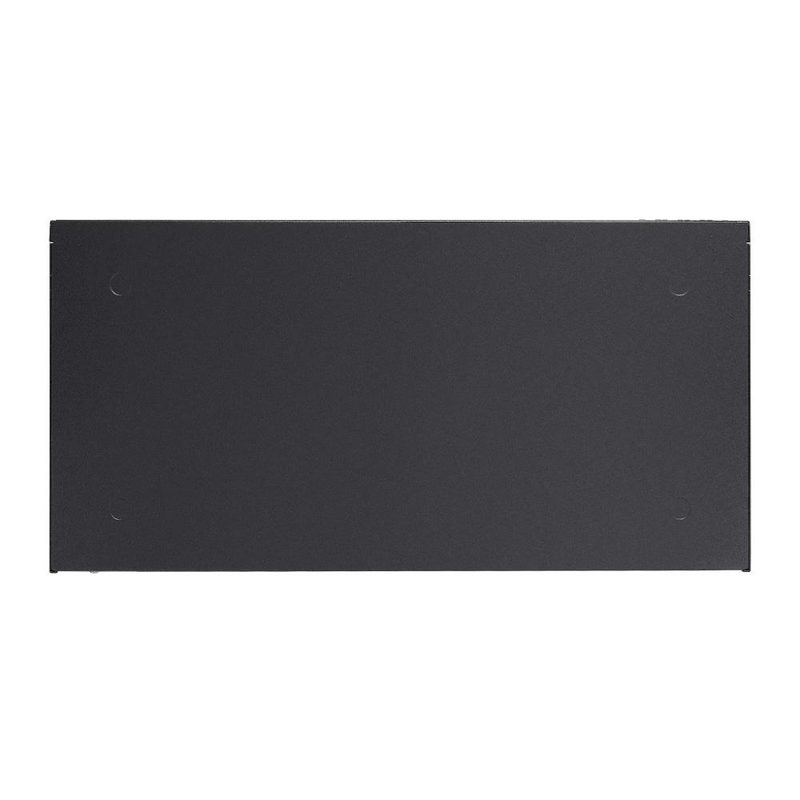

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
TP-LinkModel SG2428LP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Product colour
- Grey
- Rack mounting
- Yes
- MAC address filtering
- Yes
Overview
TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ is a TP-Link switches & adapter with a fanless of Yes and a number of vlans of 4000. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Fanless is Yes. Number of VLANs is 4000. Virtual LAN features is MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 4.1 MB. Heat dissipation is 628 BTU/h. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 5 Years. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Product colour | Grey |
|---|---|
| Rack mounting | Yes |
| MAC address filtering | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Password protection | Yes |
| IGMP snooping | Yes |
| Power consumption (max) | 184.7 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | Yes |
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 628 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Fanless | Yes |
|---|
| Multicast support | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Warranty
5 Years
