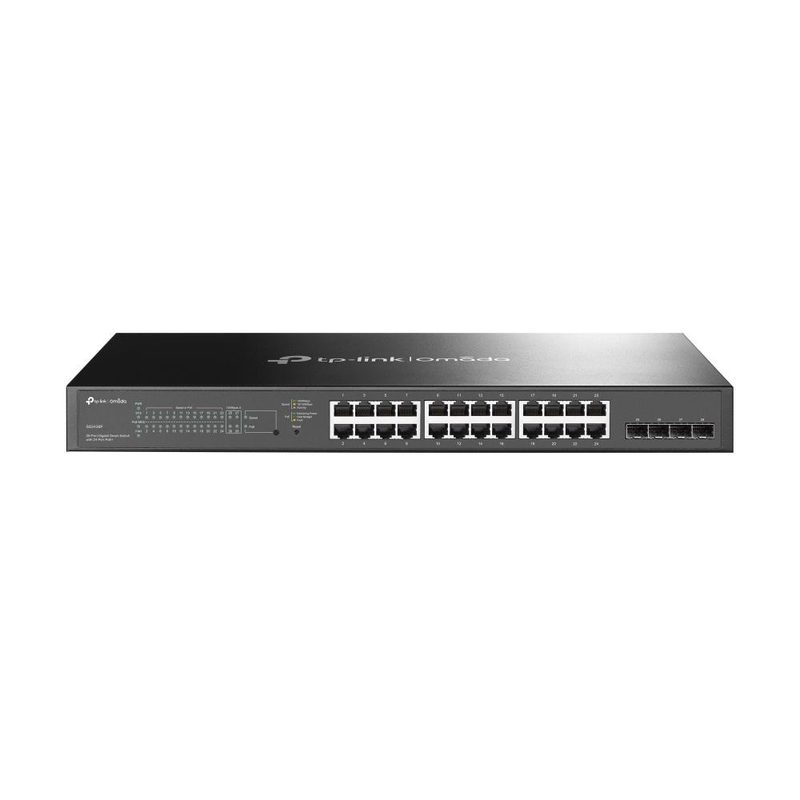

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
TP-LinkModel SG2428P
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Rate limiting
- Yes
Overview
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+ is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a management protocols of SNMPv1/v2c/v3, SNTP. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Management protocols is SNMPv1/v2c/v3, SNTP. MIB support is Y. Firmware upgradeable is Yes. Number of VLANs is 4000. User guide is Yes. Virtual LAN features is MAC address-based VLAN, Protocol-based VLAN, Voice VLAN. Packet buffer memory is 4.1 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Management protocols | SNMPv1/v2c/v3, SNTP |
|---|
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | Black |
|---|---|
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 1052.94 BTU/h |
|---|
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power consumption (max) | 301.1 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Multicast support | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Firmware upgradeable | Yes |
| MIB support | Y |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
