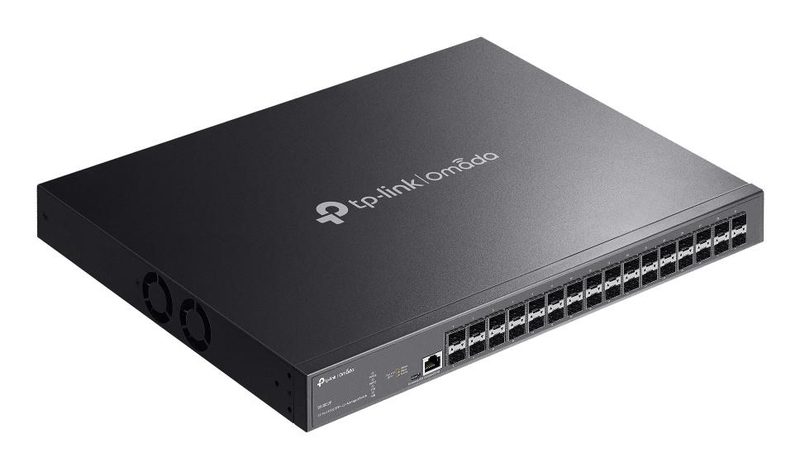

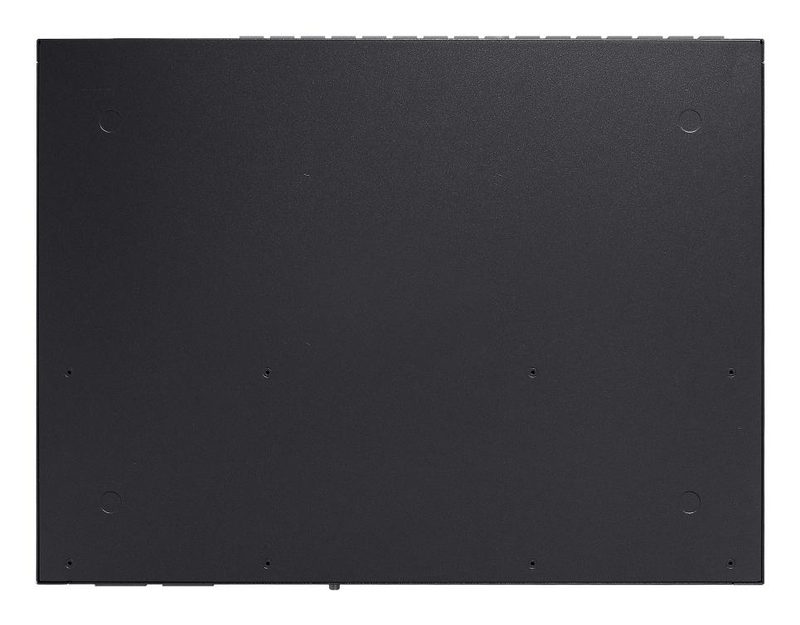

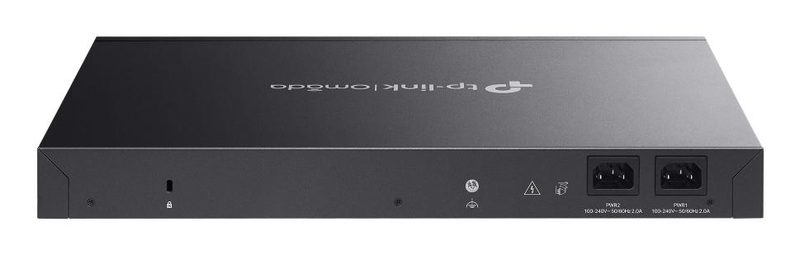

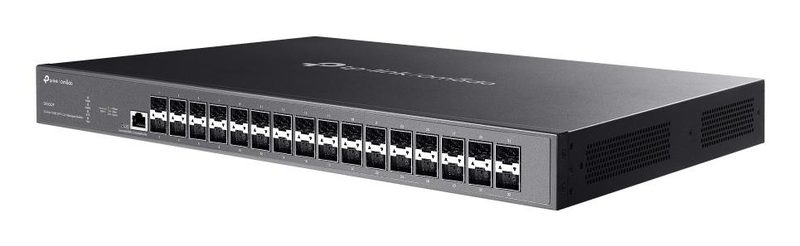

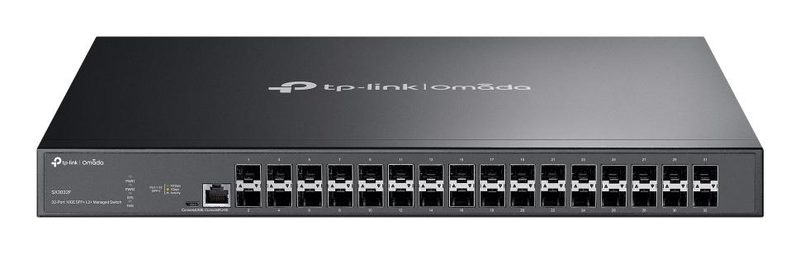

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch
TP-LinkModel SX3032F
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- Product colour
- Black
- Number of fans
- 2 fan(s)
Overview
TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch is a TP-Link switches & adapter with a mib support of • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB and a ip source guard (ipsg) of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
MIB support is • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB. IP Source Guard (IPSG) is Yes. IPv4 & IPv6 features is Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP. Number of VLANs is 30. Virtual LAN features is Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN. Packet buffer memory is 24 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Switch type is Managed. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Managed |
| Product colour | Black |
|---|---|
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| Cables included | Power |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power consumption (max) | 49.4 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG) | Yes |
| Multicast support | Yes |
|---|---|
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
| Password protection | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| Number of queues | 8 |
| Number of static routes | 128 |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| Static route | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 30 |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
|---|---|
| Installed SFP+ modules quantity | 32 |
| Console port | RJ-45/Micro-USB |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
