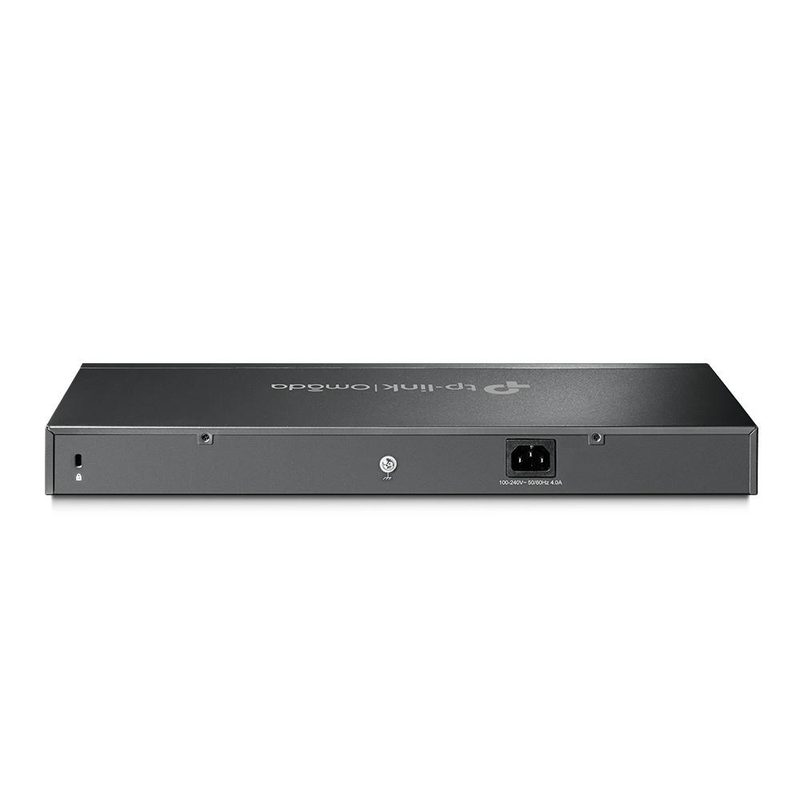

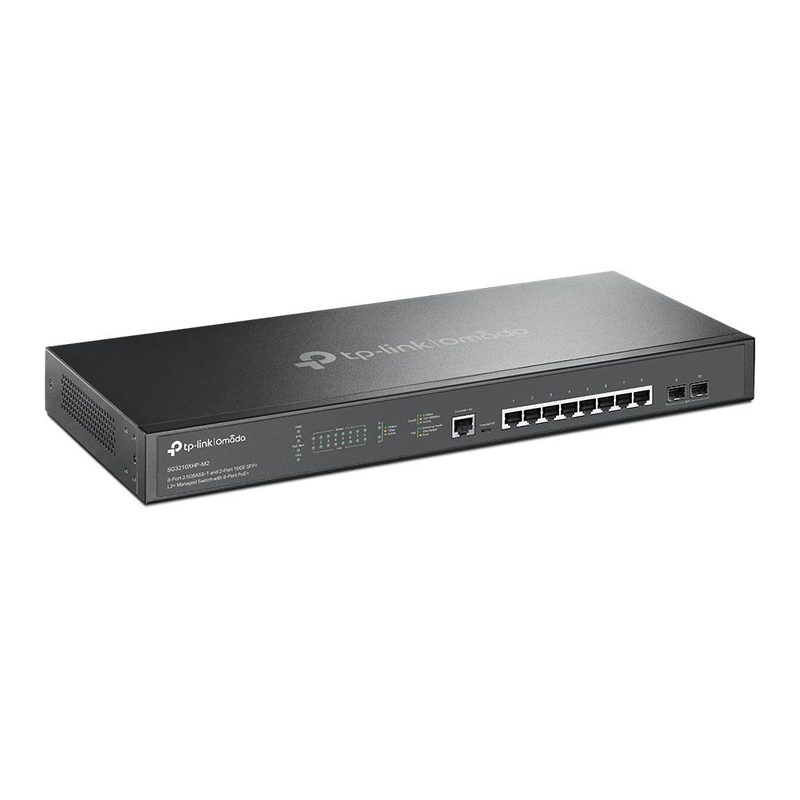

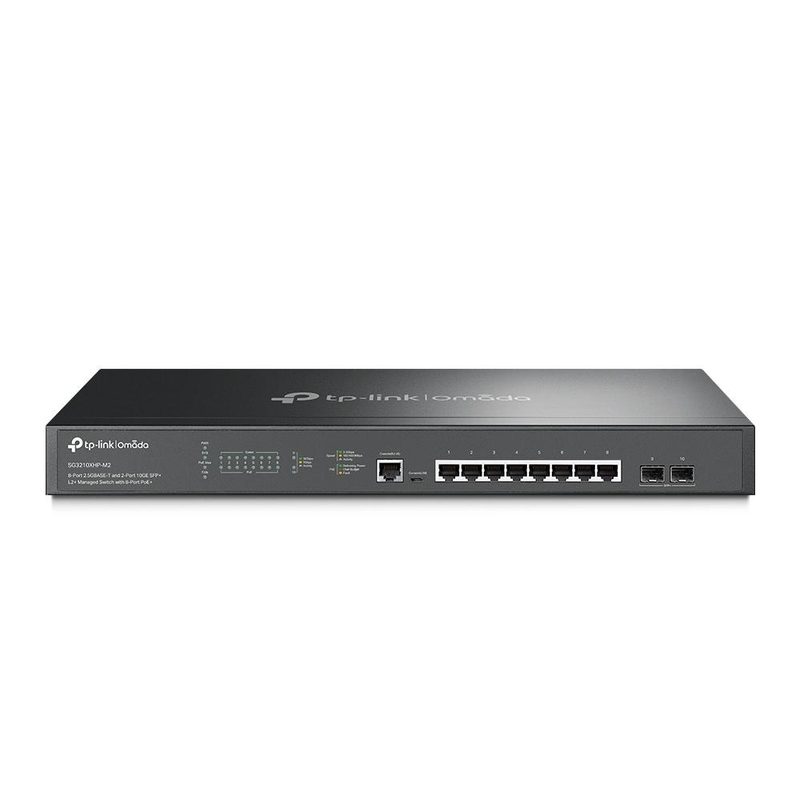

TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
TP-LinkModel SG3210XHP-M2(UN)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Ethernet LAN data rates
- 100,1000,2500 Mbit/s
- Certification
- CE, FCC, RoHS
- Cables included
- AC
Overview
TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ is a TP-Link switches & adapter with a power connector of AC-in jack and a certification of CE, FCC, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Certification is CE, FCC, RoHS. Management protocols is SNMPv1/v2c/v3, SNTP. MIB support is RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213. Ethernet LAN data rates is 100,1000,2500 Mbit/s. Number of VLANs is 4000. Virtual LAN features is MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 12 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Certification | CE, FCC, RoHS |
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rate limiting | Yes |
|---|
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Product colour | Black |
|---|---|
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Heat dissipation | 975.54 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power consumption (max) | 285.9 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| IP-MAC-Port binding | Yes |
|---|---|
| MAC address filtering | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| System event log | Yes |
| Password protection | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Port mirroring | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Power connector | AC-in jack |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
