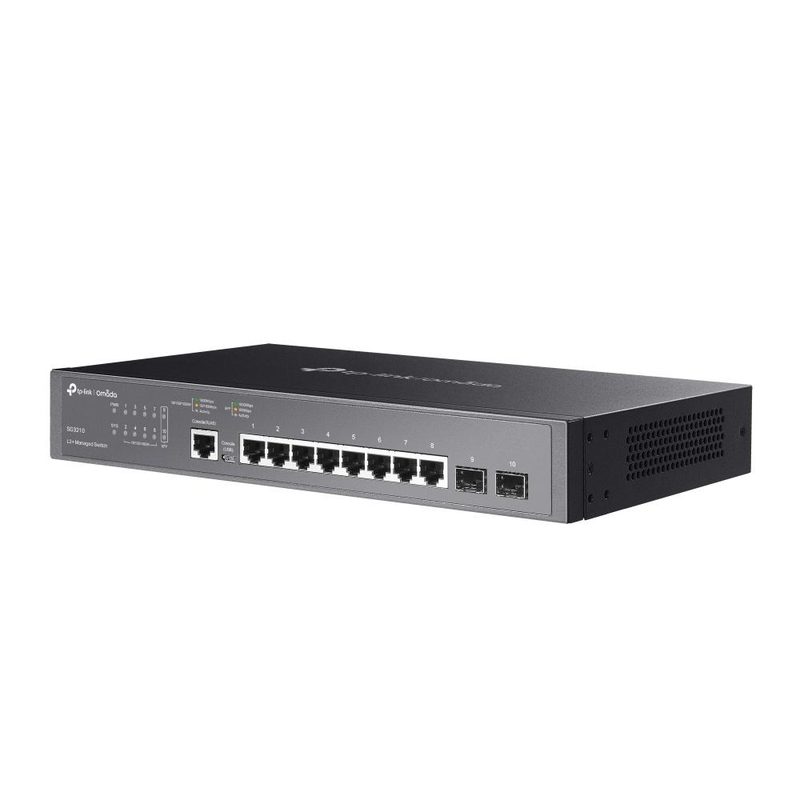

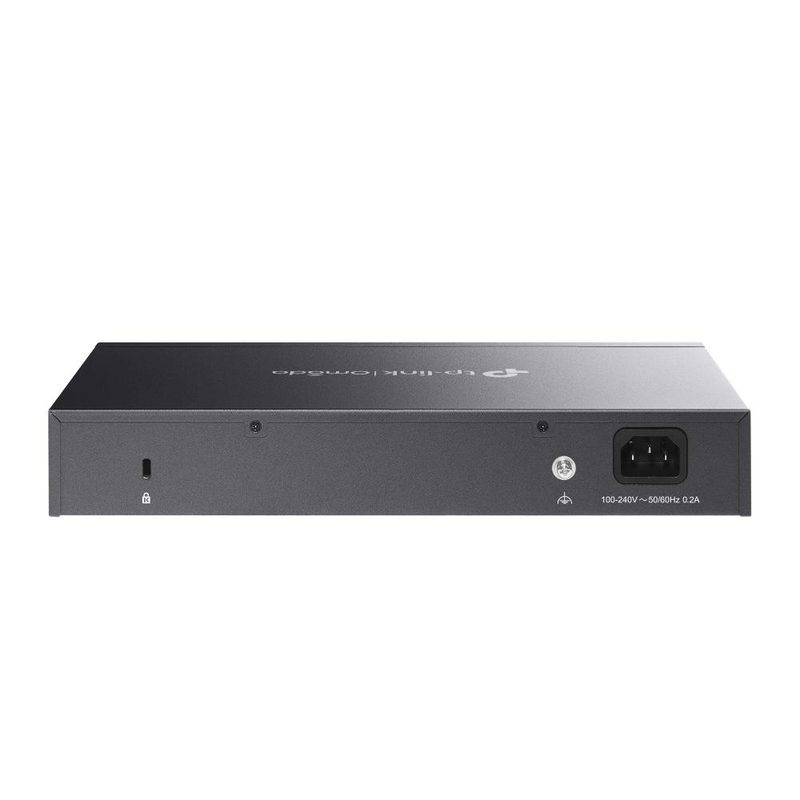

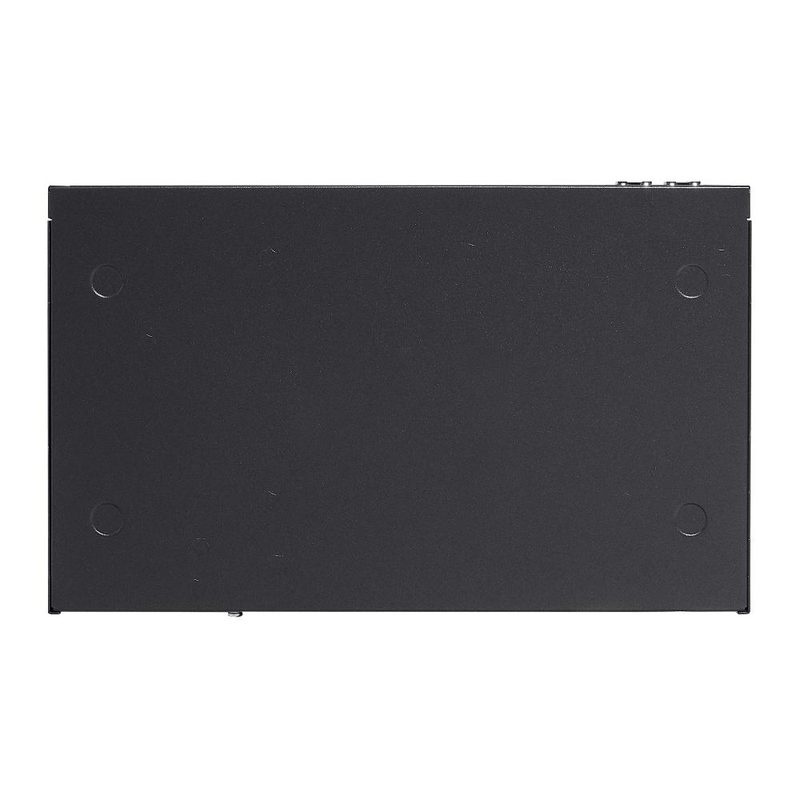

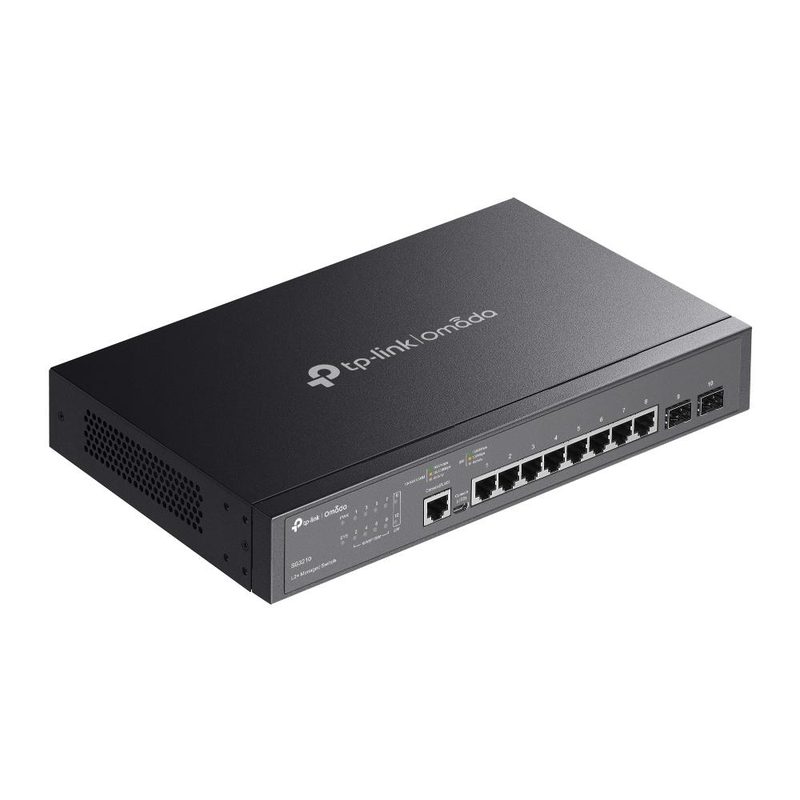

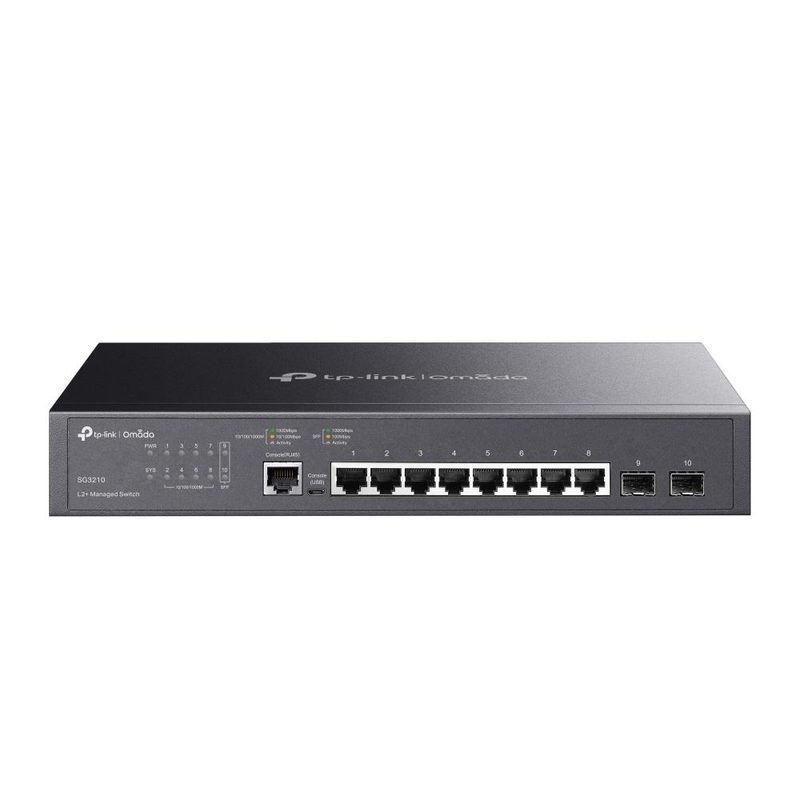

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
TP-LinkModel SG3210(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Minimum system requirements
- Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
- Switch type
- Managed
- Product colour
- Black
- Rack mounting
- Yes
Overview
TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots is a TP-Link switches & adapter with a management protocols of SNMPv1/v2c/v3, SNTP and a mib support of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Management protocols is SNMPv1/v2c/v3, SNTP. MIB support is Yes. Fanless is Yes. Firmware upgradeable is Yes. IPv4 & IPv6 features is IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert. Number of VLANs is 4000. User guide is Yes. Virtual LAN features is Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Minimum system requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
|---|
| Switch type | Managed |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Rate limiting | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 23.33 BTU/h |
|---|
| Manual | Yes |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 6.84 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| IP-MAC-Port binding | Yes |
|---|---|
| MAC address filtering | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| System event log | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| Store-and-forward | Yes |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Head-of-line (HOL) blocking | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L3 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Firmware upgradeable | Yes |
| MIB support | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
