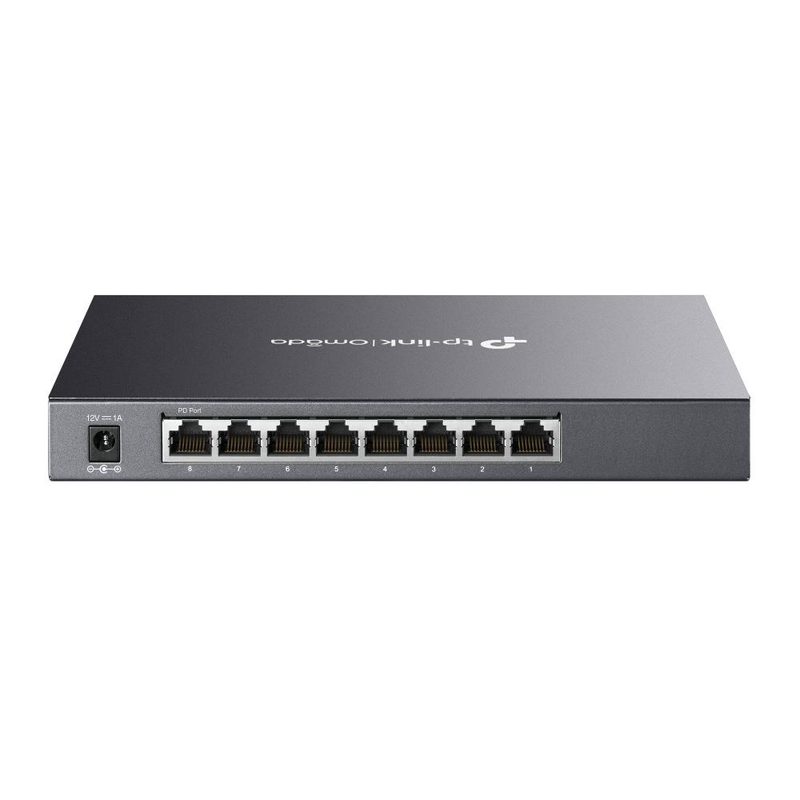

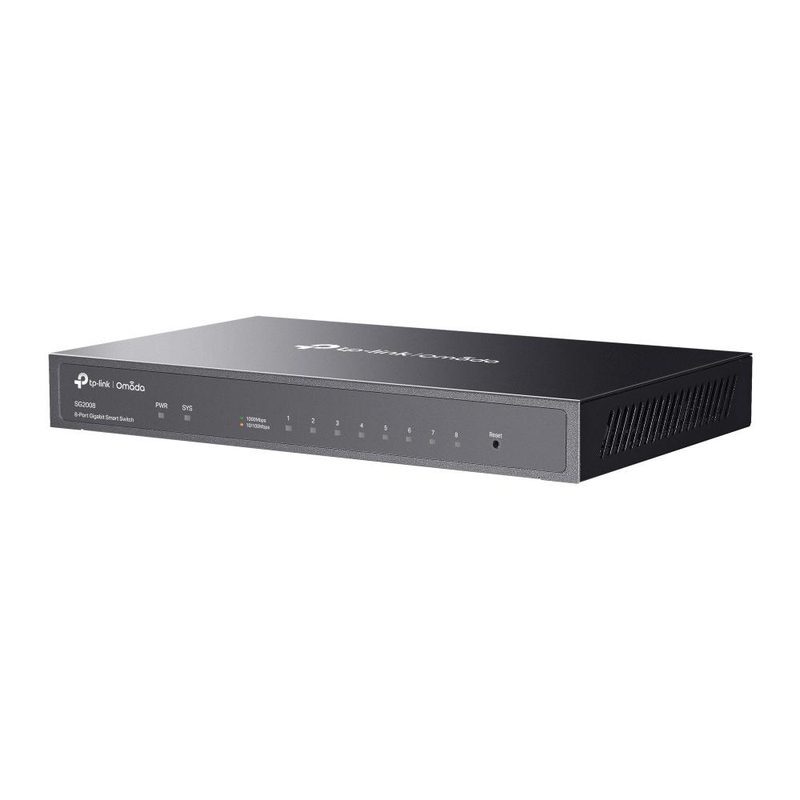

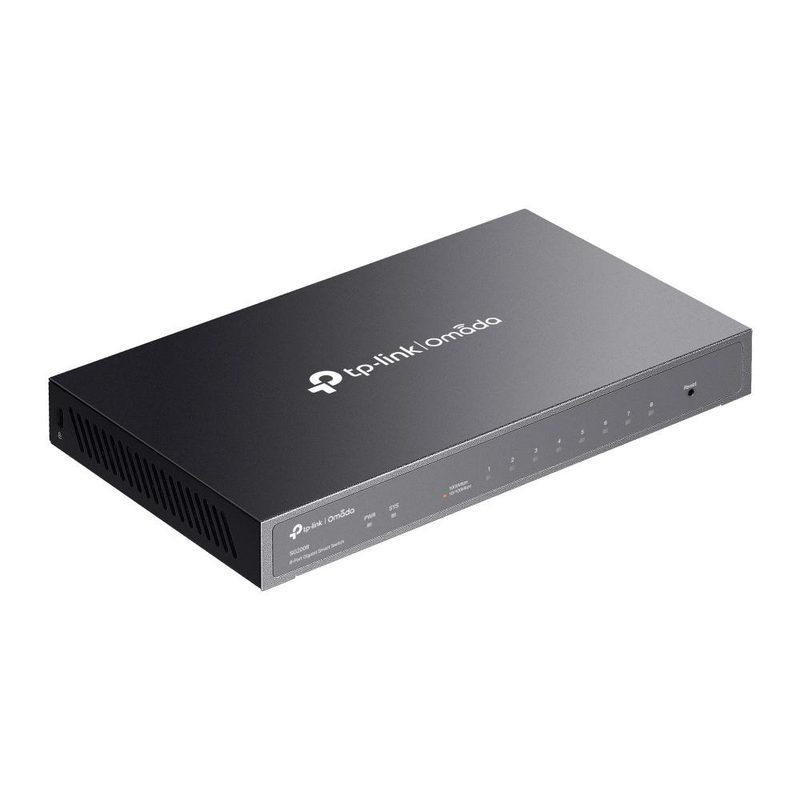

TP-Link Omada 8-Port Gigabit Smart Switch
TP-LinkModel SG2008(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Cables included
- AC
- User guide
- Yes
Overview
TP-Link Omada 8-Port Gigabit Smart Switch is a TP-Link switches & adapter with a power connector of DC-in jack and a certification of CE, FCC, RoHS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Certification is CE, FCC, RoHS. Management protocols is SNMPv1/v2c/v3, SNTP. Fanless is Yes. Number of VLANs is 4000. User guide is Yes. Virtual LAN features is MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN. Packet buffer memory is 4.1 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Cables included | AC |
|---|---|
| User guide | Yes |
| Product colour | Black |
|---|---|

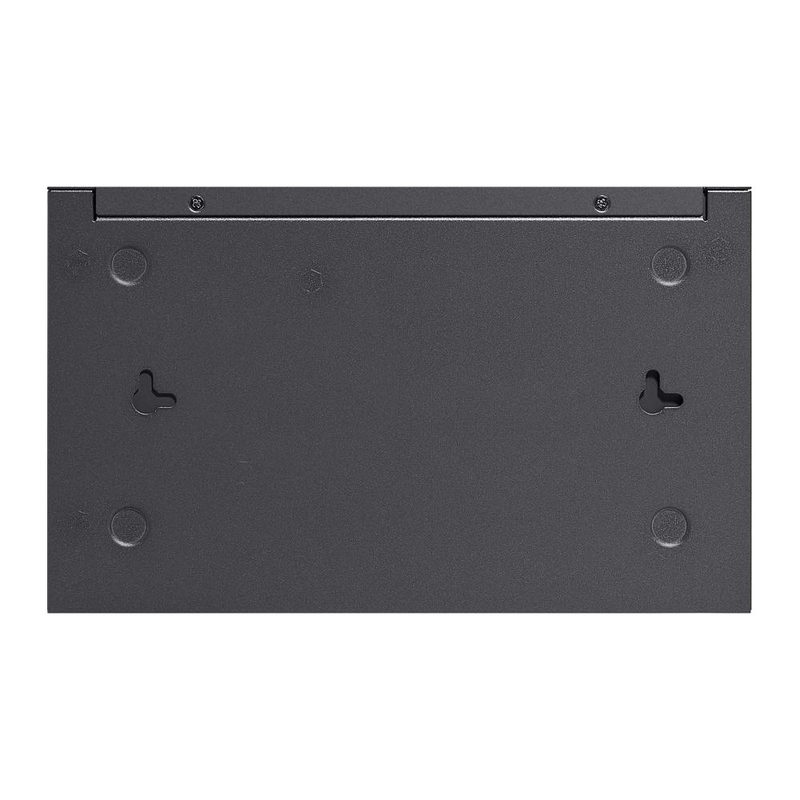

| Wall mountable | Yes |
| Auto MDI/MDI-X | Yes |
|---|---|
| Rate limiting | Yes |
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 21.84 BTU/h |
|---|
| Power consumption (max) | 6.4 W |
|---|---|
| Input current | 1 A |
| Power supply included | Yes |
| Power source | DC |
| Input voltage | 12 V |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| System event log | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Switch layer | L2/L2+ |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
