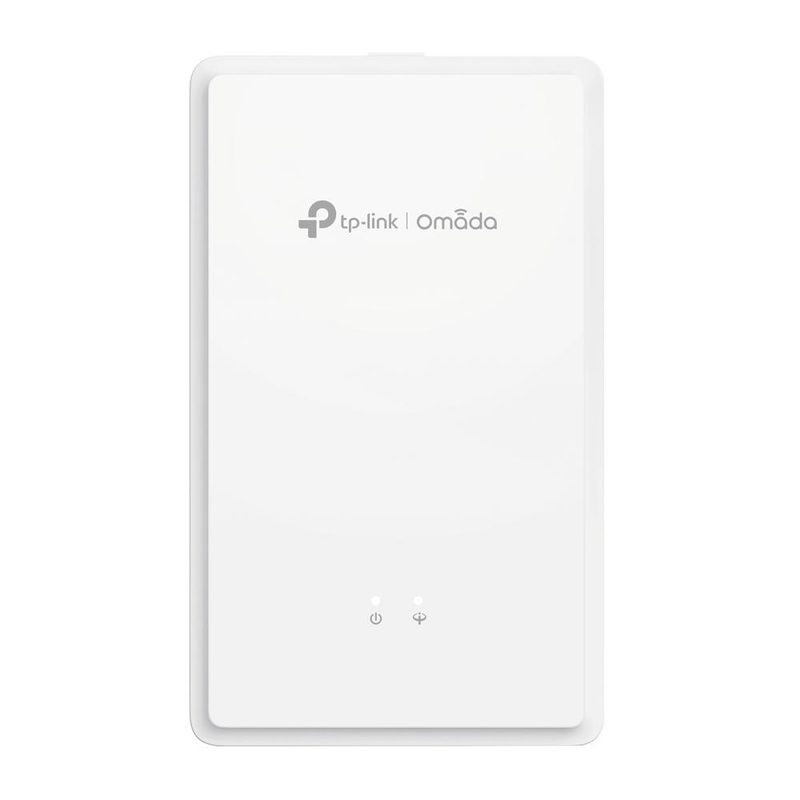

TP-Link Omada AX1800 1201 Mbit/s White
TP-LinkModel EAP615GP-WALL
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 120 user(s)
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Ethernet LAN data rates
- 1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 2
Overview
TP-Link Omada AX1800 1201 Mbit/s White is a TP-Link routers & access point with a sustainability compliance of Yes and a certification of CE, FCC, RoHS, IC. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Certification is CE, FCC, RoHS, IC. Ethernet LAN (RJ-45) ports is 2. Ethernet LAN data rates is 1000 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Channel bandwidth is 80 MHz. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 120 user(s) |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Certification | CE, FCC, RoHS, IC |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna gain level (max) | 6.5 dBi |
|---|---|
| Antennas quantity | 2 |
| Transmitting power (CE) | 20 dBm |
| Sustainability compliance | Yes |
|---|
| Web-based management | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
|---|---|
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Channel bandwidth | 80 MHz |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Spread spectrum method | OFDMA |
| Wi-Fi roaming | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 143 mm |
|---|---|
| Depth | 86 mm |
| Height | 37.6 mm |
| Weight | 320 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | 21 dBm |
| Power consumption (typical) | 12.2 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.5 A |
| LED indicators | Power |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
Warranty
3 year limited warranty
