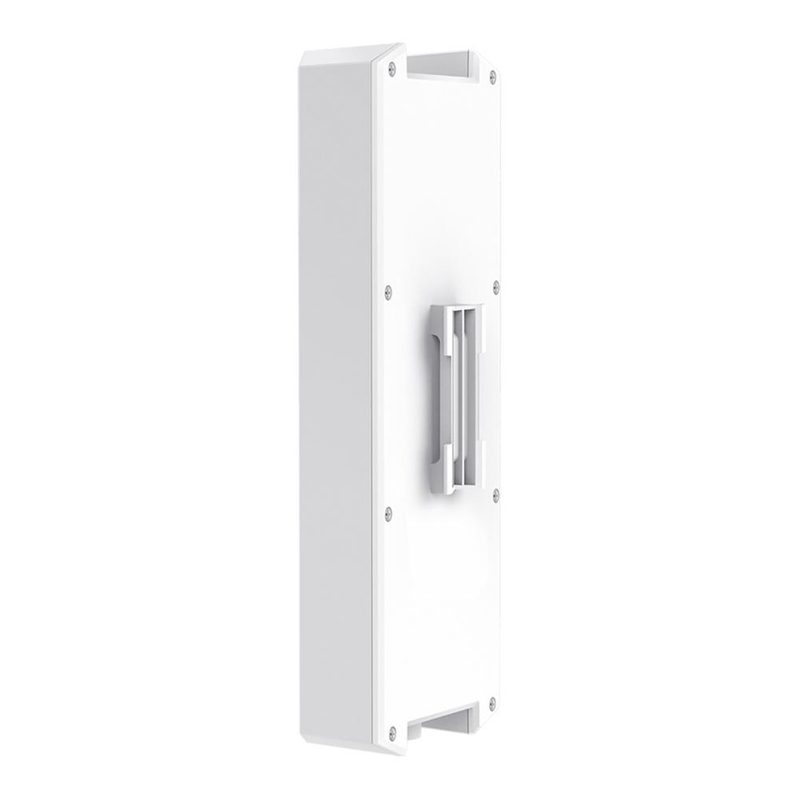

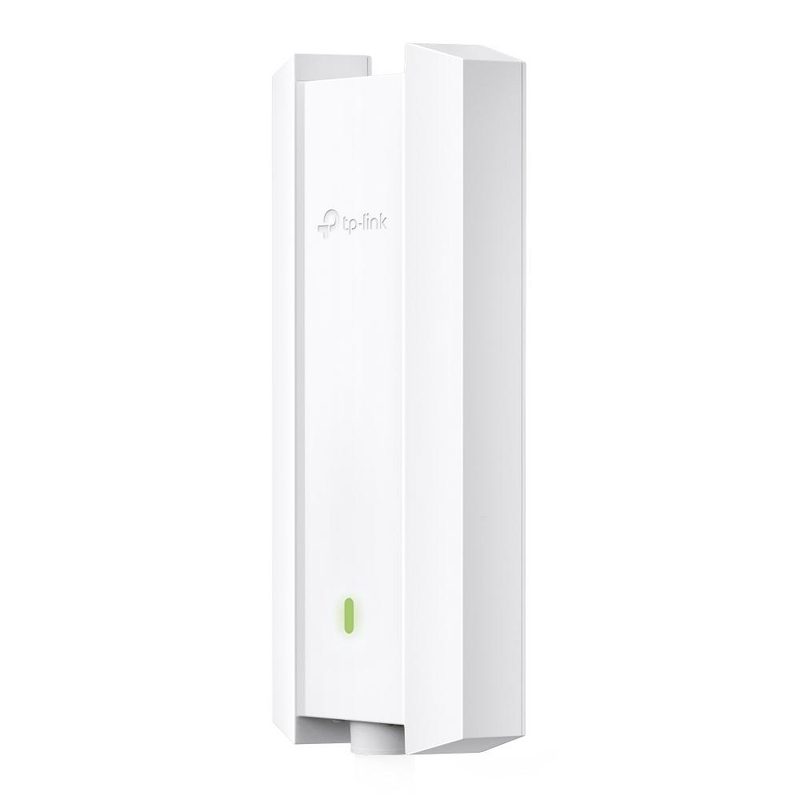

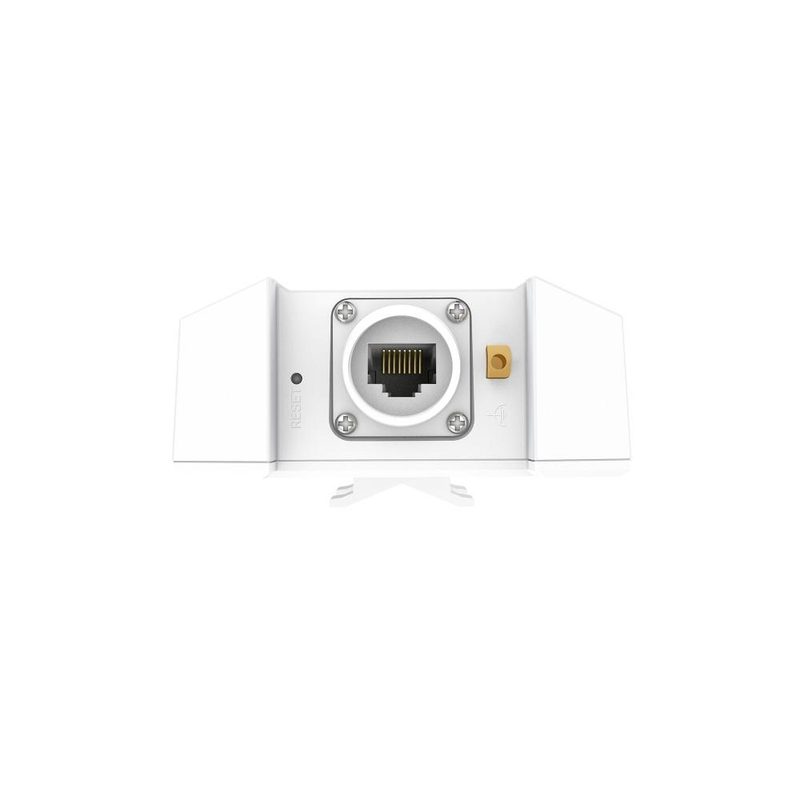

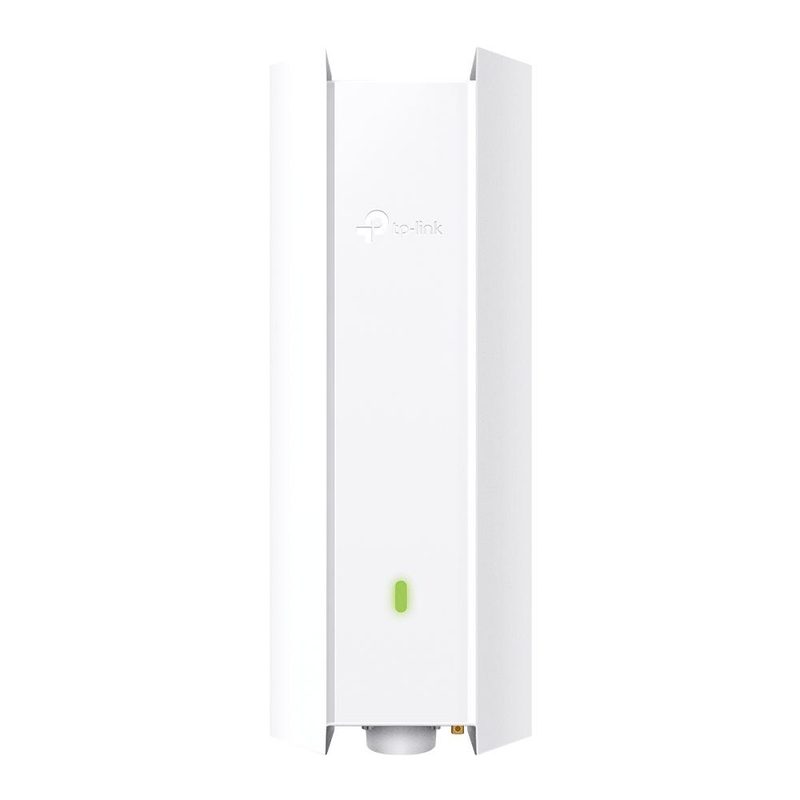

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
TP-LinkModel EAP623-OUTDOOR HD
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 1020 user(s)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, FCC, RoHS
Overview
TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point is a TP-Link routers & access point with a certification of CE, FCC, RoHS and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Syslog is Yes. Security algorithms is SNMP, SNMPv2, SNMPv3, SSH. Number of users is 1020 user(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 1020 user(s) |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, FCC, RoHS |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna features | Integrated antenna |
|---|---|
| Antennas quantity | 2 |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); |
| Power over Ethernet (PoE) | Yes |
|---|
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
|---|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 280.4 mm |
|---|---|
| Depth | 106.5 mm |
| Height | 56.8 mm |
| Operating temperature (T-T) | -30 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Pole |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
