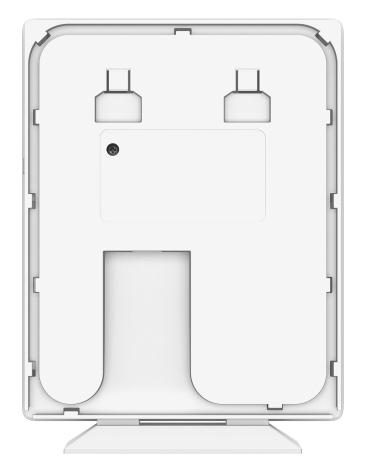

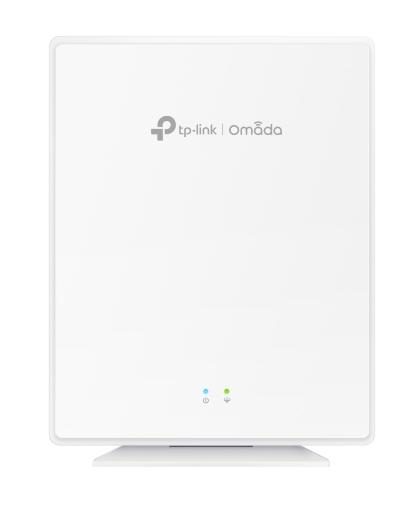

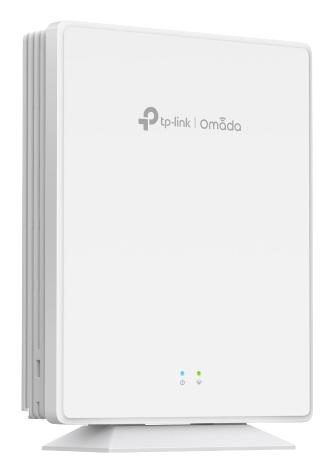

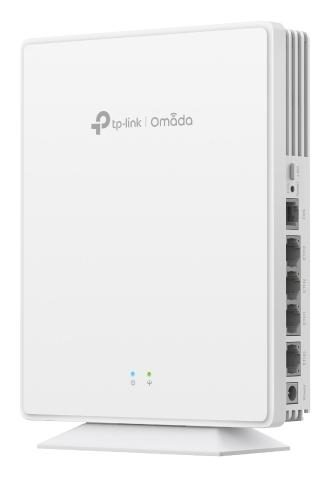

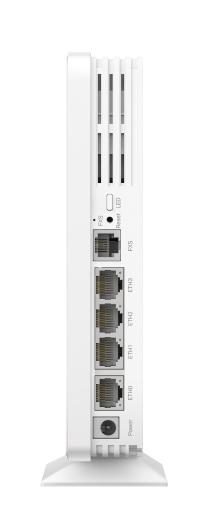

TP-Link Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
TP-LinkModel EAP610GP-DESKTOP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 120 user(s)
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Ethernet LAN data rates
- 1000,10,100 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
Overview
TP-Link Omada AX1800 Wi-Fi 6 Desktop GPON Access Point is a TP-Link routers & access point with a certification of CE, FCC, RoHS, IC and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS, IC. Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 1000,10,100 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Channel bandwidth is 80 MHz. Syslog is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 120 user(s) |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | CE, FCC, RoHS, IC |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 2 |
| Transmitting power (CE) | 20 dBm |
| Power consumption (typical) | 17.3 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 53.5 V |
| Web-based management | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
|---|---|
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Channel bandwidth | 80 MHz |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Spread spectrum method | OFDMA |
| Wi-Fi roaming | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 175 mm |
|---|---|
| Depth | 140 mm |
| Height | 33 mm |
| Weight | 492 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Desk, Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | 25 dBm |
| LED indicators | Power |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
