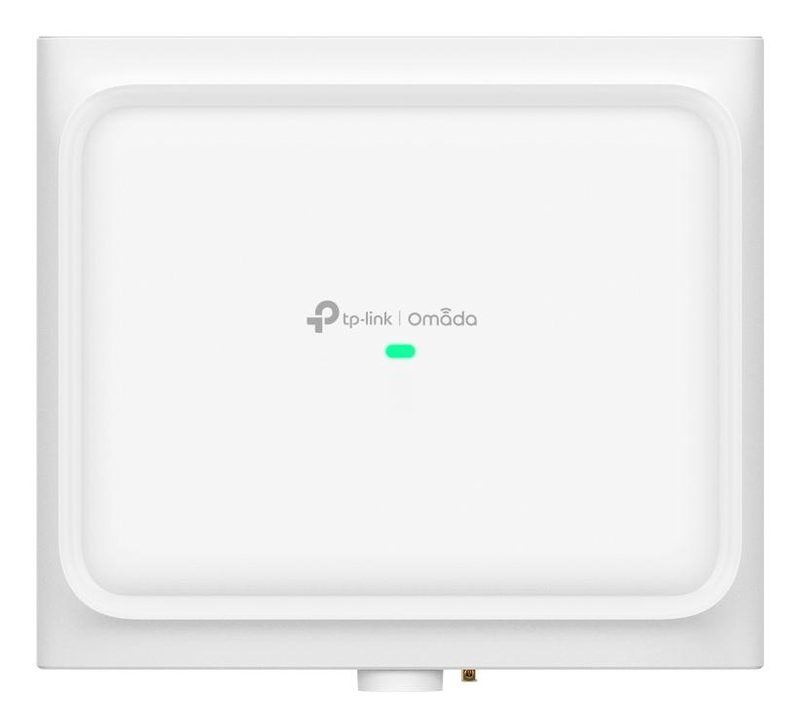

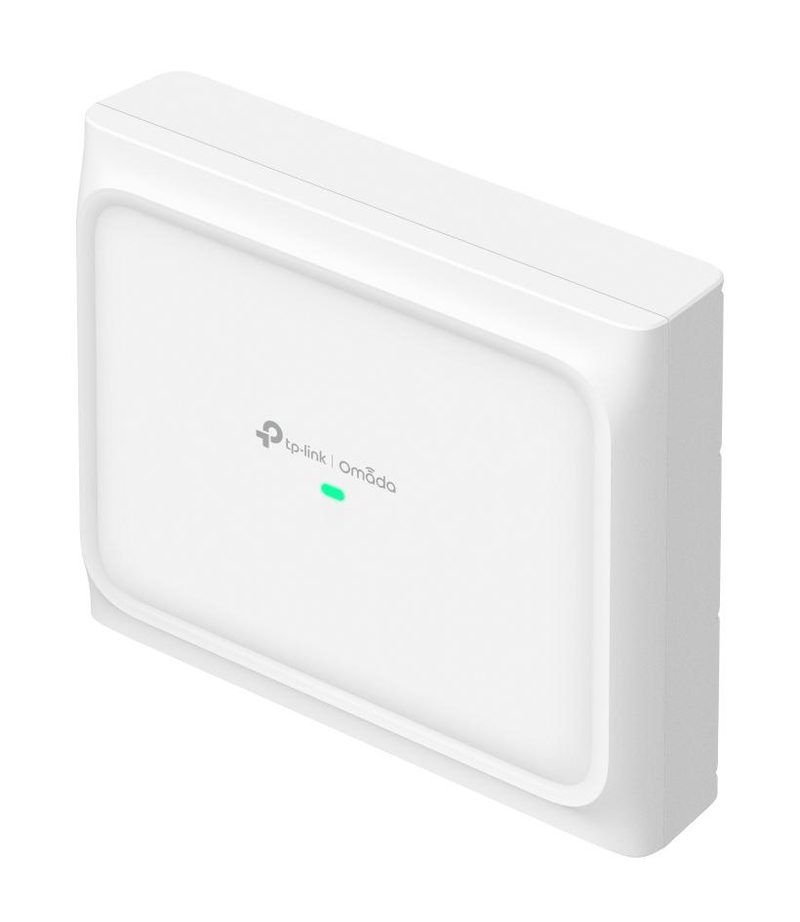

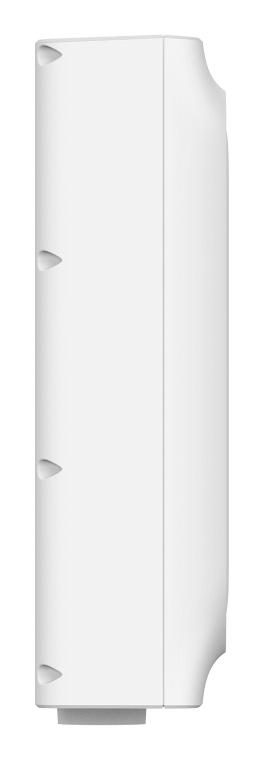

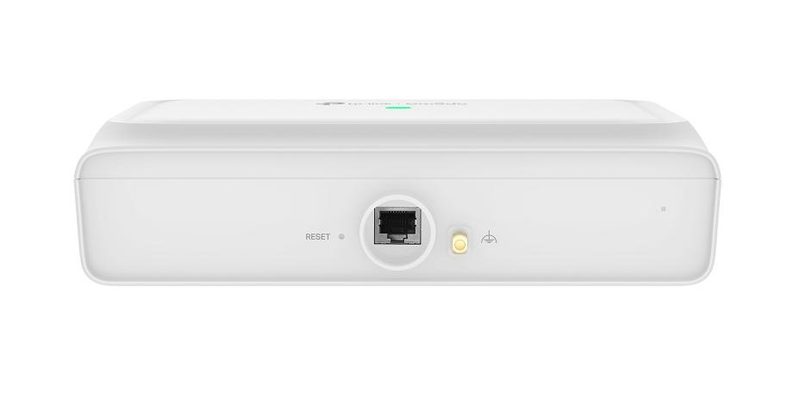

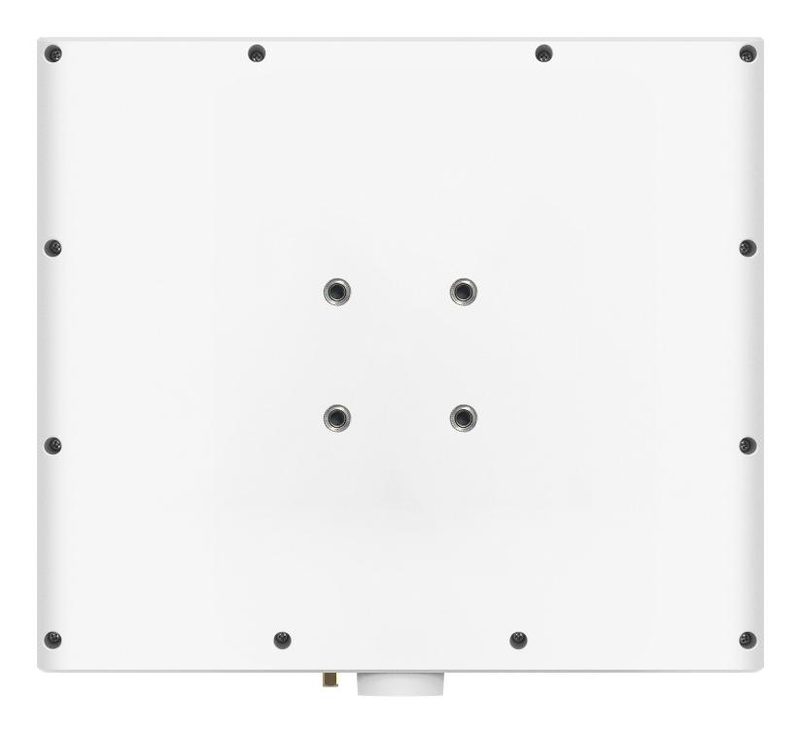

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point
TP-LinkModel EAP650 D120-OUTDOOR
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 250 user(s)
- Horizontal beam width
- 120°
- Vertical beam width
- 30°
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Overview
TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 1 and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Virtual LAN features is SSID-based VLAN assignment. Remote Authentication Dial-In User Service (RADIUS) is Yes. Maximum indoor range is 500 m. Horizontal beam width is 120°. Vertical beam width is 30°. Security algorithms is SNMP, SNMPv2, SNMPv3. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 250 user(s) |
|---|---|
| Horizontal beam width | 120° |
| Vertical beam width | 30° |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna gain level (max) | 10 dBi |
|---|---|
| Antennas quantity | 4 |
| AC input voltage | 48 V |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Web-based management | Yes |
|---|
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Virtual LAN features | SSID-based VLAN assignment |
| MAC address filtering | Yes |
|---|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Automatic channel selection | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum indoor range | 500 m |
| Width | 230 mm |
|---|---|
| Depth | 207.5 mm |
| Height | 58 mm |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Directional |
| Bluetooth | Yes |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
