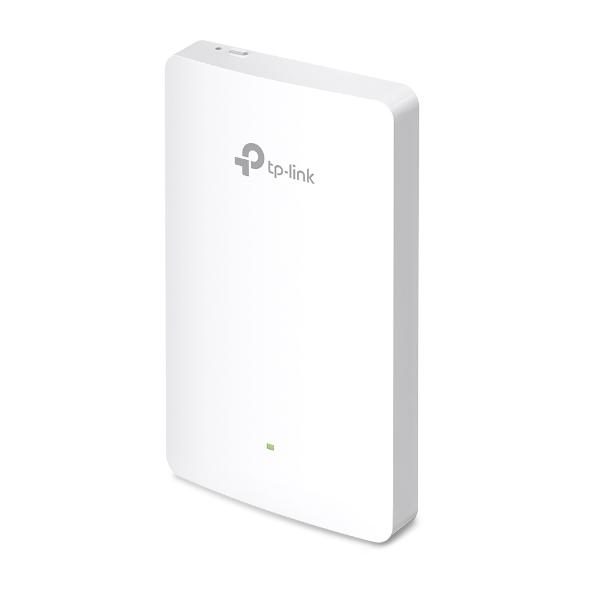

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
TP-LinkModel EAP615-WALL(5-PACK)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- On/off switch
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Overview
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 4 and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 10,100,1000 Mbit/s. Firmware upgradeable is Yes. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Compatible operating systems is Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux. Syslog is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| On/off switch | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Quantity per pack | 5 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna gain level (max) | 4 dBi |
|---|---|
| Antennas quantity | 4 |
| Transmitting power (CE) | 23 dBm |
| Power consumption (typical) | 10 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| STelnet using SSH v2 | Yes |
|---|
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 143 mm |
|---|---|
| Depth | 86 mm |
| Height | 20 mm |
| Package width | 385 mm |
|---|---|
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Wall |
| Transmitting power (FCC) | 21 dBm |
| Cable lock slot | Yes |
|---|---|
| LED indicators | Power |
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
