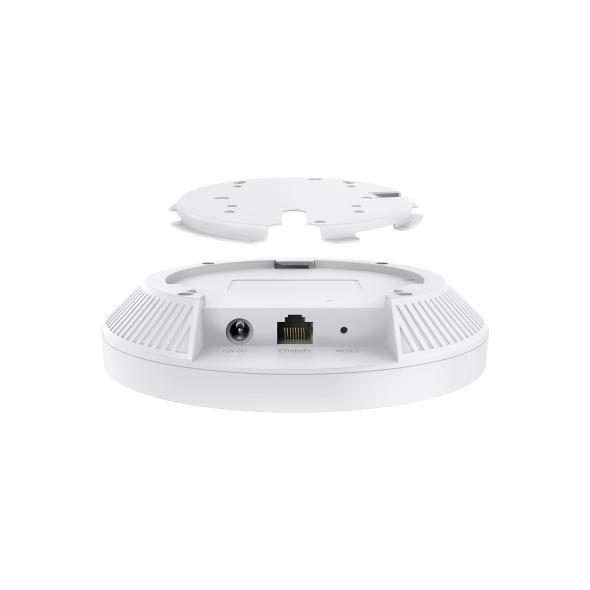

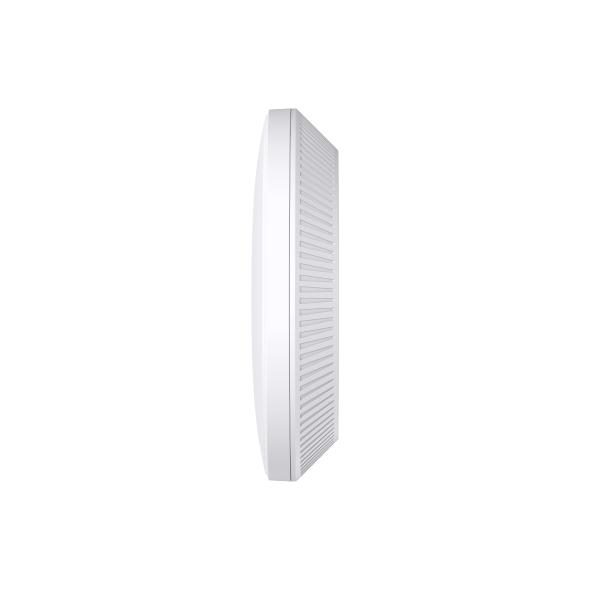

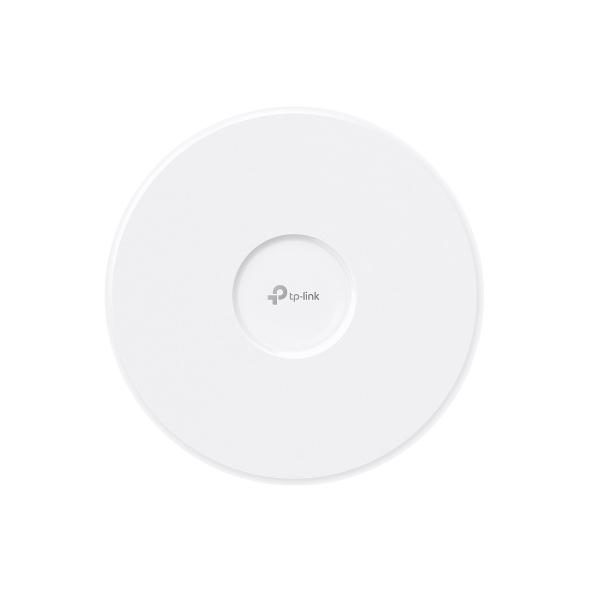

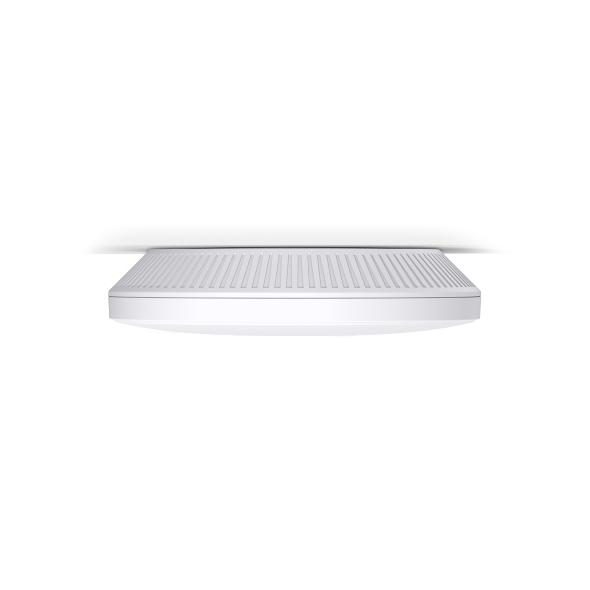

TP-Link Omada BE3600 Ceiling Mount Wi-Fi 7 Access Point
TP-LinkModel EAP723
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
- Bandwidth
- 2.4 GHz
- Ethernet LAN (RJ-45) ports
- 1
- Quantity per pack
- 1 pc(s)
Overview
TP-Link Omada BE3600 Ceiling Mount Wi-Fi 7 Access Point is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 1 and a reset button of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS. DC-in jack is Yes. Bandwidth is 2.4 GHz. Syslog is Yes. Security algorithms is SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
|---|---|
| Bandwidth | 2.4 GHz |
| Ethernet LAN (RJ-45) ports | 1 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| MAC address filtering | Yes |
|---|
| Antenna gain level (max) | 5 dBi |
|---|
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Power consumption (max) | 18.6 W |
|---|---|
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Automatic channel selection | Yes |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 36.7 mm |
| Package type | Box |
|---|
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| DC-in jack | Yes |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
