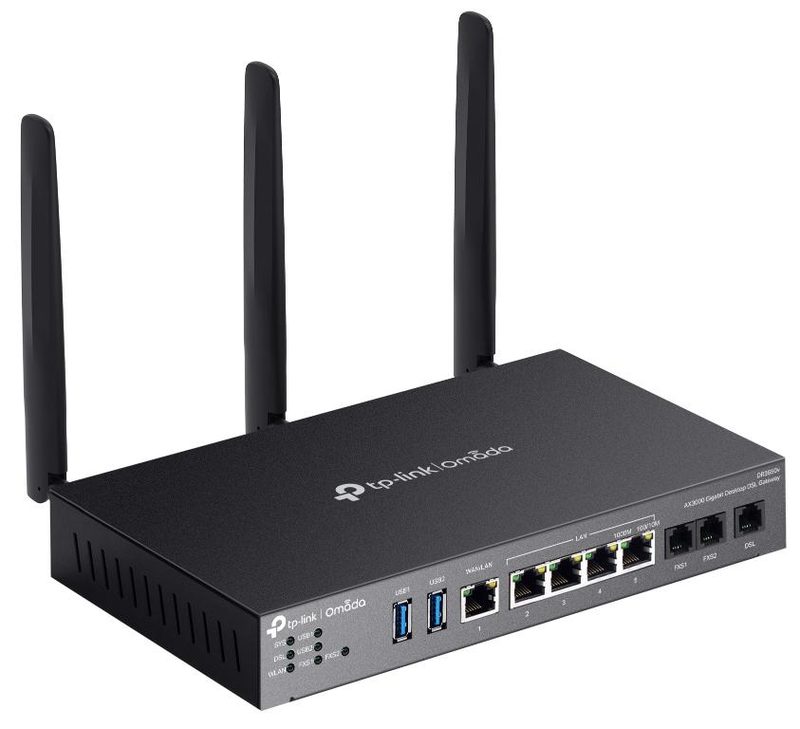

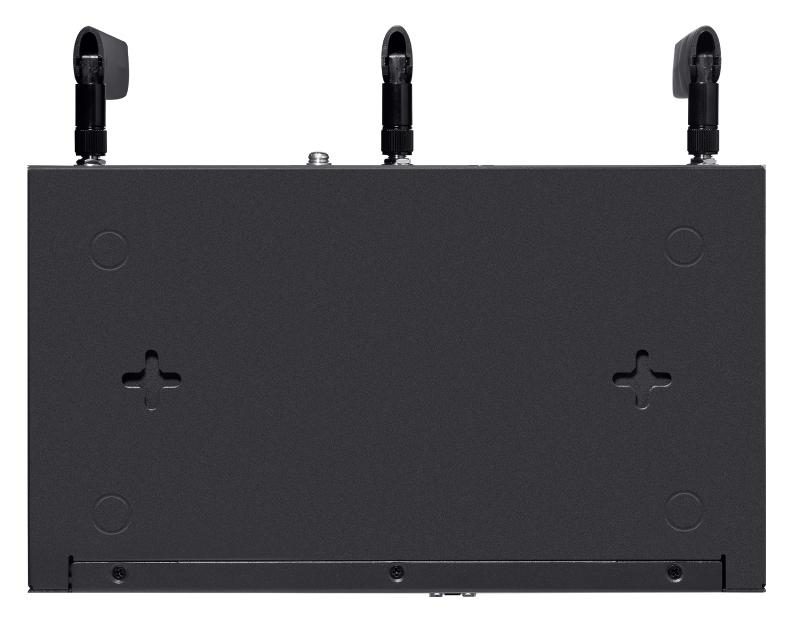

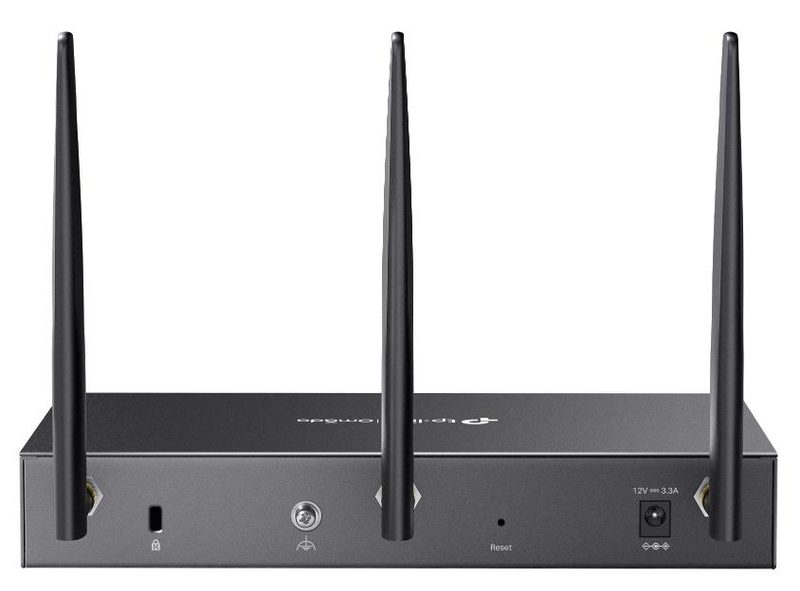

TP-Link Omada DR3220v-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
TP-LinkModel DR3220V-4G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC adapter included
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Antenna design
- External
Overview
TP-Link Omada DR3220v-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black is a TP-Link routers & access point with a voice codecs of G.711a, G.711ulaw, G.722, G.726, G.729ab and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Voice codecs is G.711a, G.711ulaw, G.722, G.726, G.729ab. Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 10,100,1000 Mbit/s. RJ-11 ports quantity is 3. MU-MIMO technology is Yes. Reset button is Yes. Network address translation (NAT) is Yes. VPN support is IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| AC adapter included | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Antenna design | External |
|---|---|
| Antenna gain level (max) | 4.5 dBi |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
| Number of products included | 1 pc(s) |
|---|---|
| Cables included | LAN (RJ-45), Phone |
| Antenna included | Yes |
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Guest access | Yes |
|---|---|
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| ADSL | Yes |
|---|---|
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Static route | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Policy-based routing | Yes |
| Built-in FTP server | Yes |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| VPN support | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Indication light | Yes |
|---|
| Width | 226 mm |
|---|---|
| Depth | 131 mm |
| Height | 35 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | DSL, LAN, USB, WLAN |
|---|
| Power source type | AC |
|---|---|
| Output current | 3.3 A |
| Output voltage | 12 V |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB port | Yes |
| DC-in jack | Yes |
| RJ-11 ports quantity | 3 |
