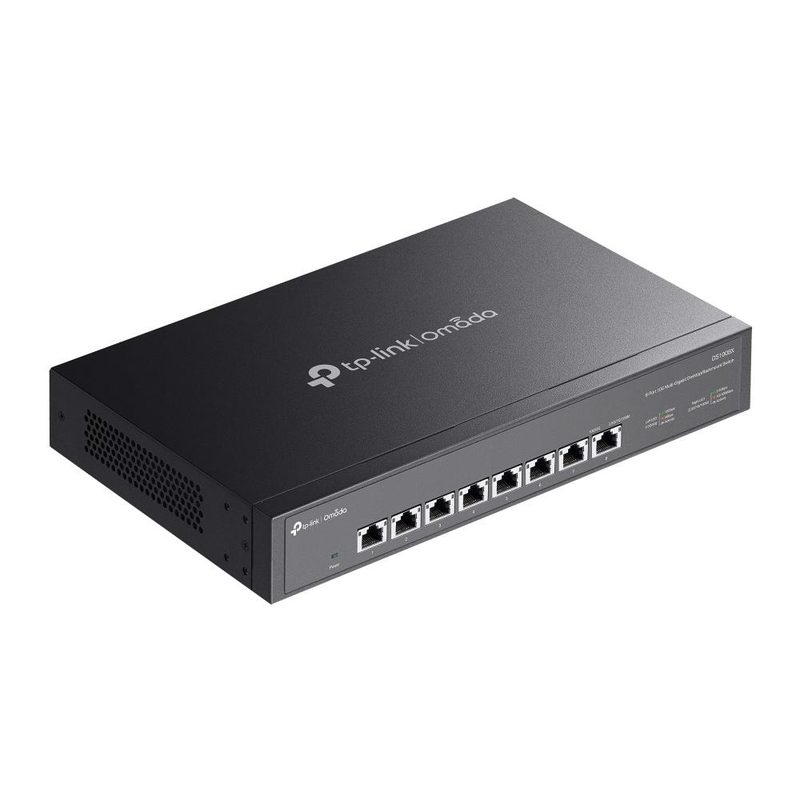

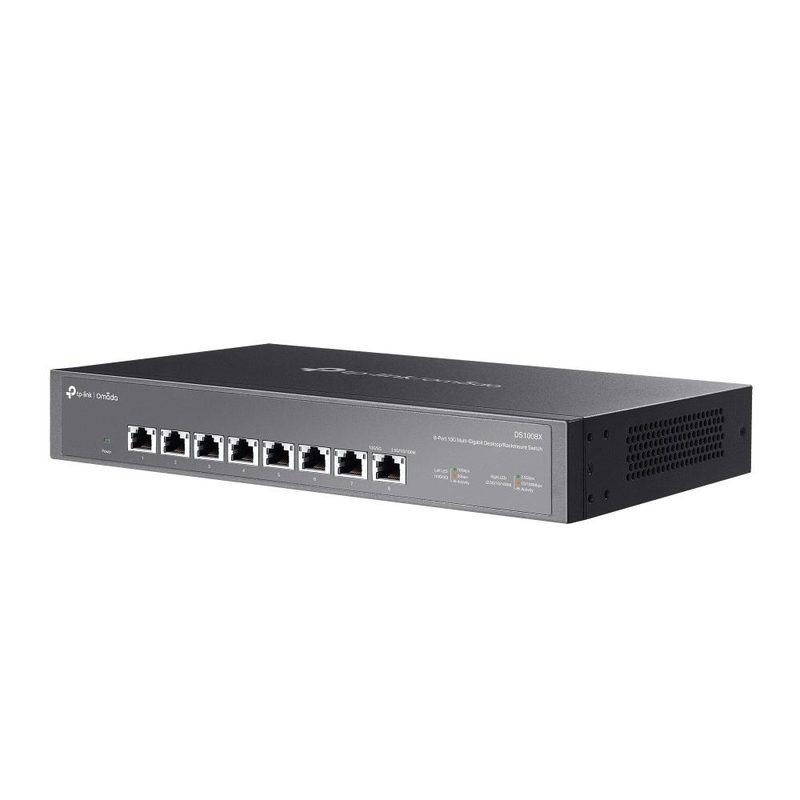

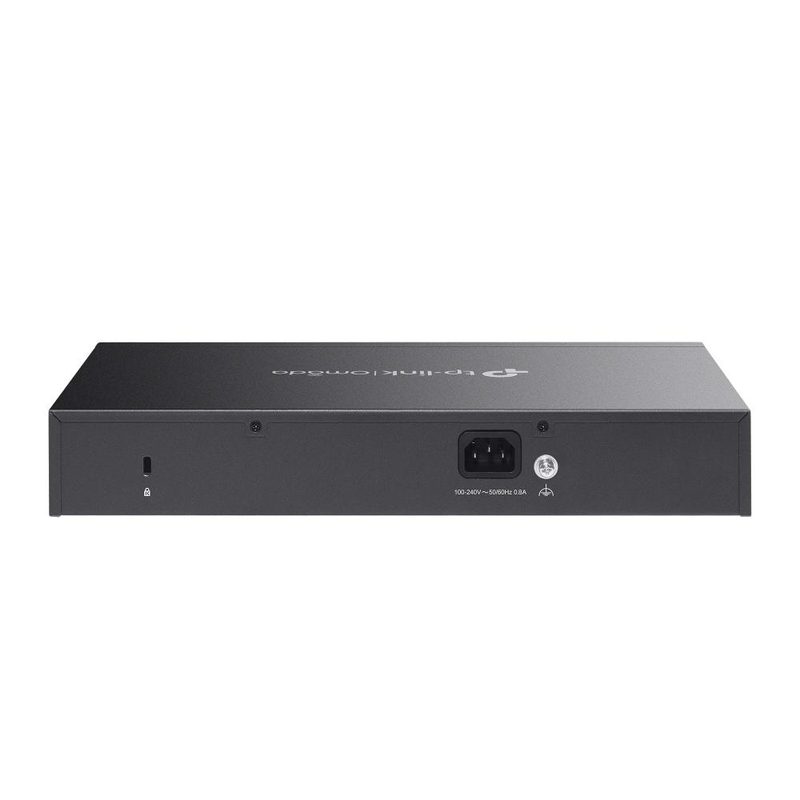

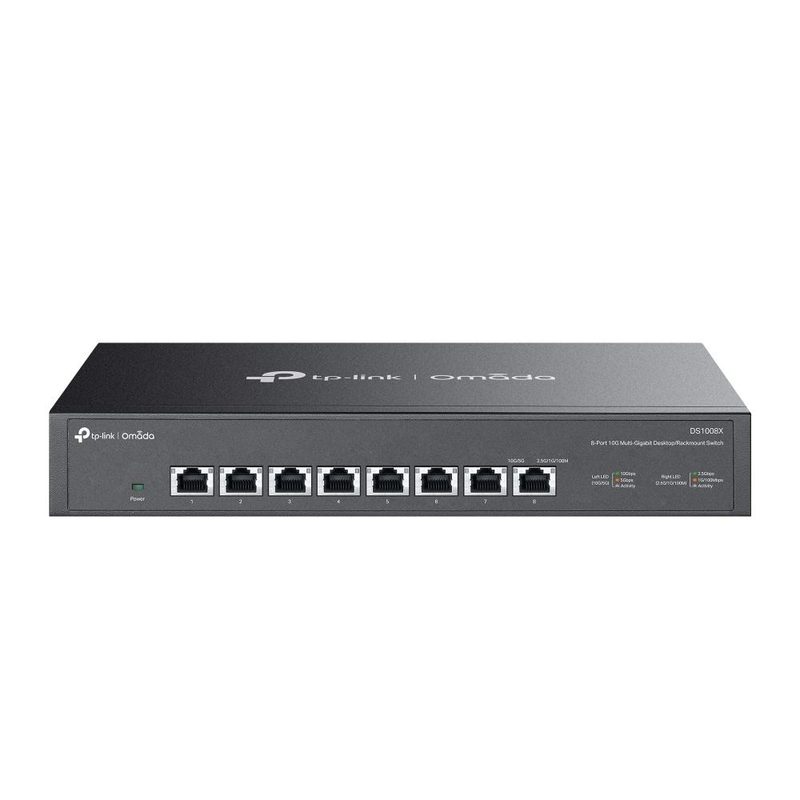

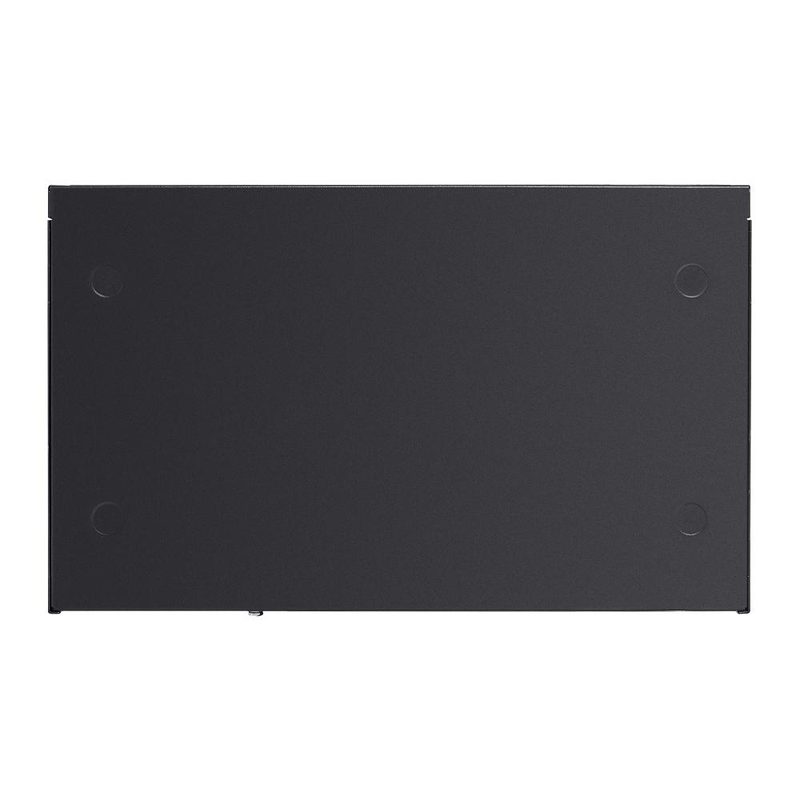

TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black
TP-LinkModel DS1008X
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 100,1000,2500,5000,10000 Mbit/s
- IGMP snooping
- Yes
Overview
TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black is a TP-Link switches & adapter with a power connector of AC-in jack and a ethernet lan data rates of 100,1000,2500,5000,10000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Ethernet LAN data rates is 100,1000,2500,5000,10000 Mbit/s. User guide is Yes. Packet buffer memory is 12 MB. Compliance certificates is CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA. Switch type is Unmanaged. Flow control support is Yes. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| IGMP snooping | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 294 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Plug and Play | Yes |
|---|---|
| LED indicators | Activity, Link, Power |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Number of fans | 1 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Rubber feet | Yes |
|---|
| Cables included | Power |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 31.2 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.8 A |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| 10G support | Yes |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
