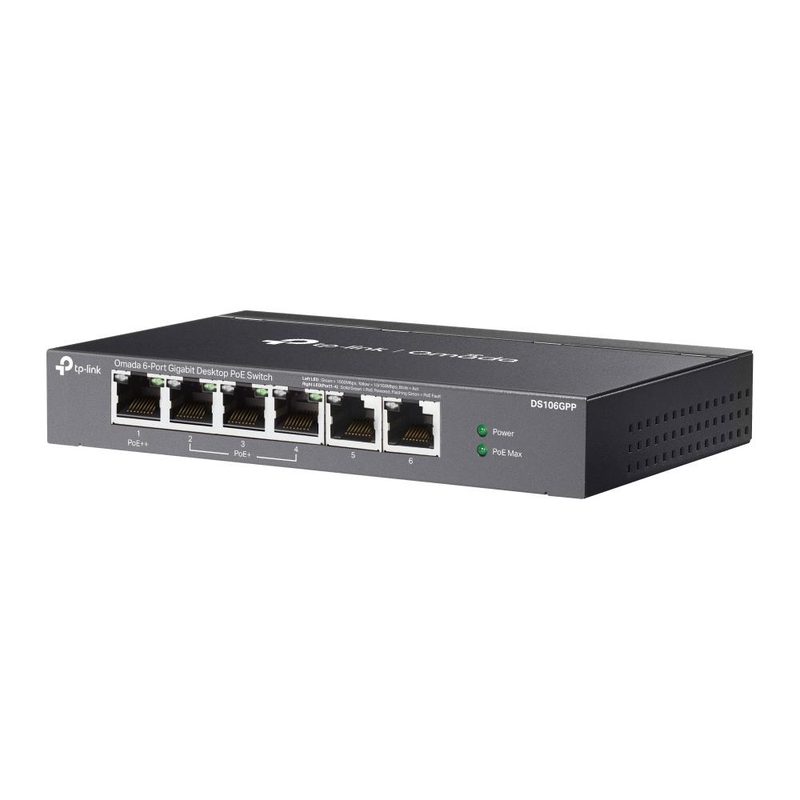

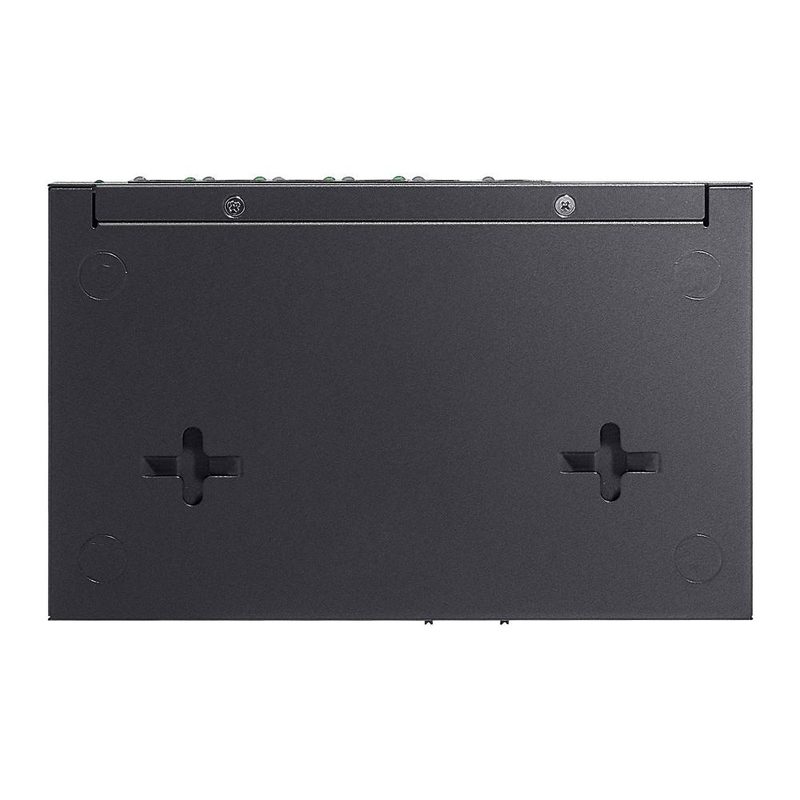

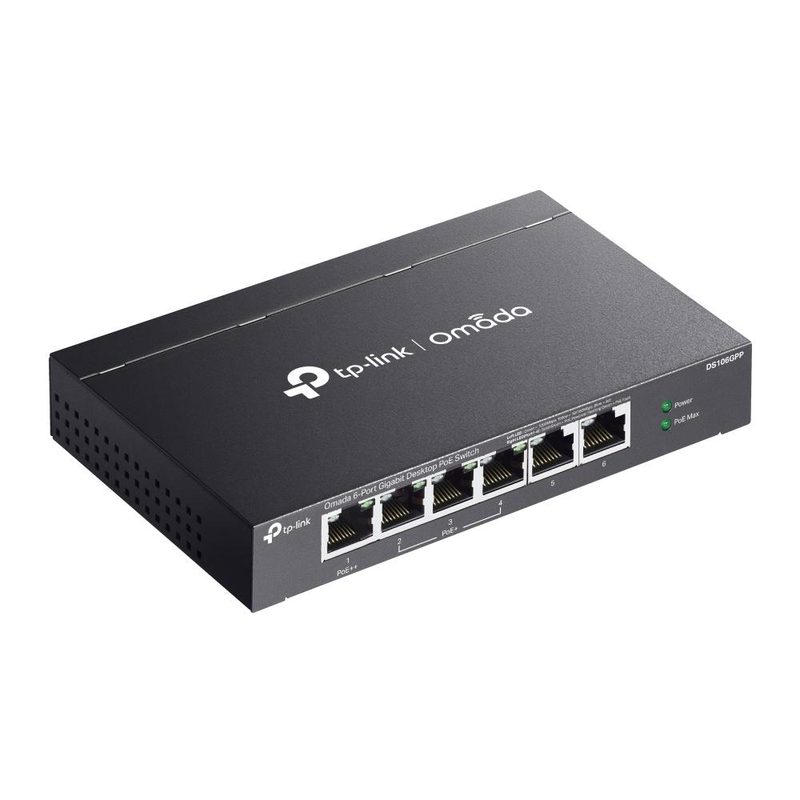

TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LinkModel DS106GPP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cables included
- Power
Overview
TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. User guide is Yes. Reset button is Yes. Compliance certificates is CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA. Heat dissipation is 243.68 BTU/h. Switch type is Unmanaged. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cables included | Power |
|---|---|
| User guide | Yes |
| IGMP snooping | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 243.68 BTU/h |
|---|
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Rubber feet | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 4 |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 64 W |
| Power consumption (max) | 71.46 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC/DC |
| Input voltage | 53.5 V |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Store-and-forward | Yes |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
