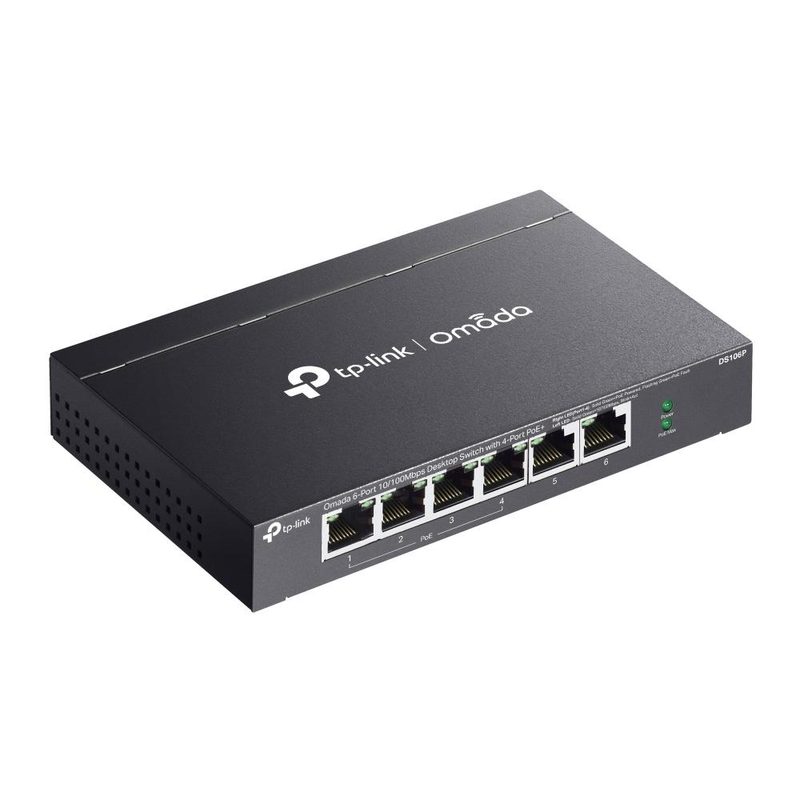

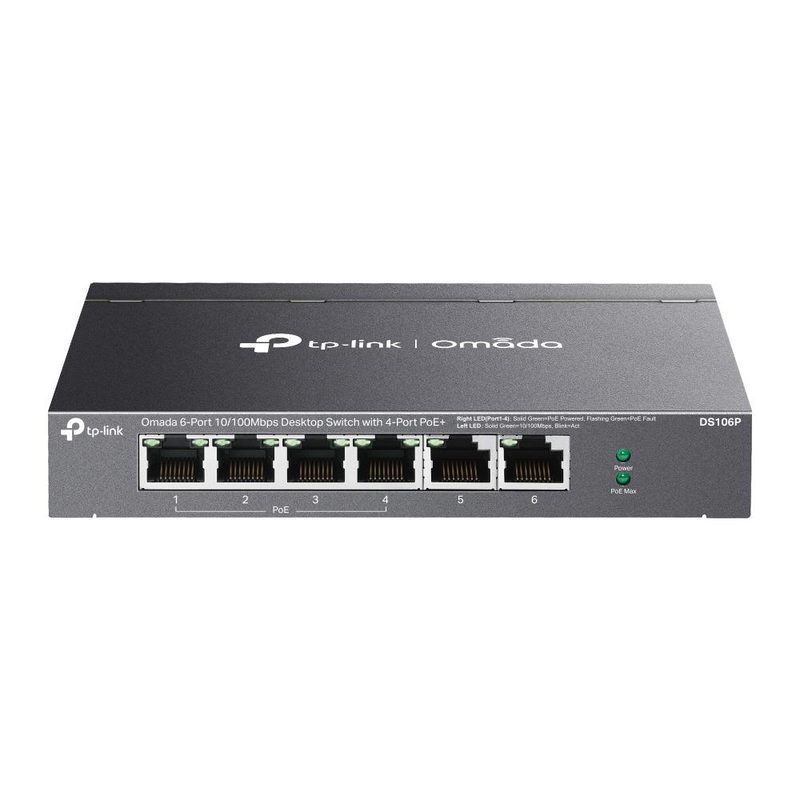

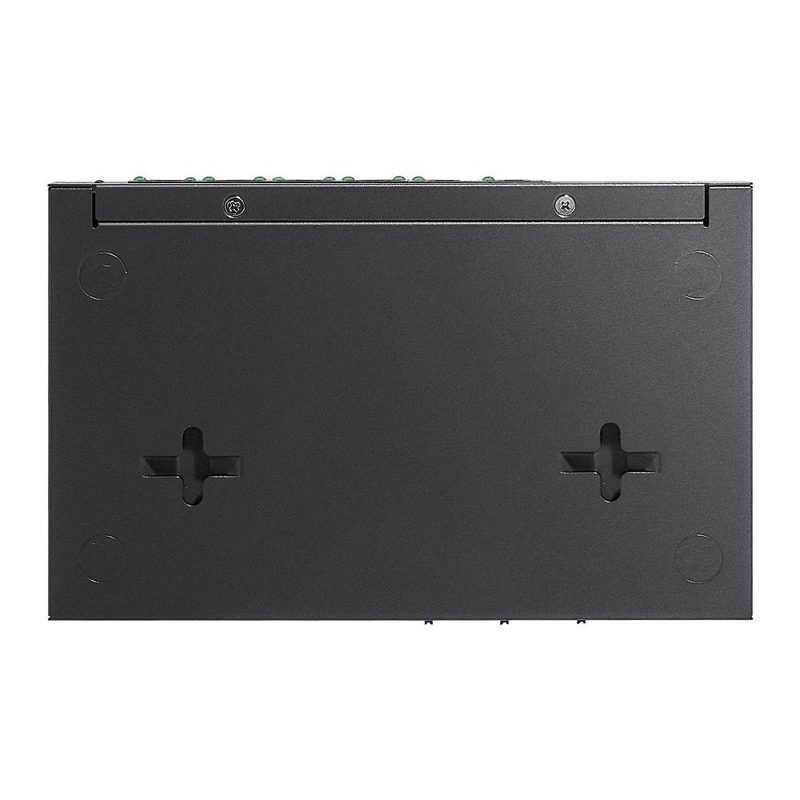

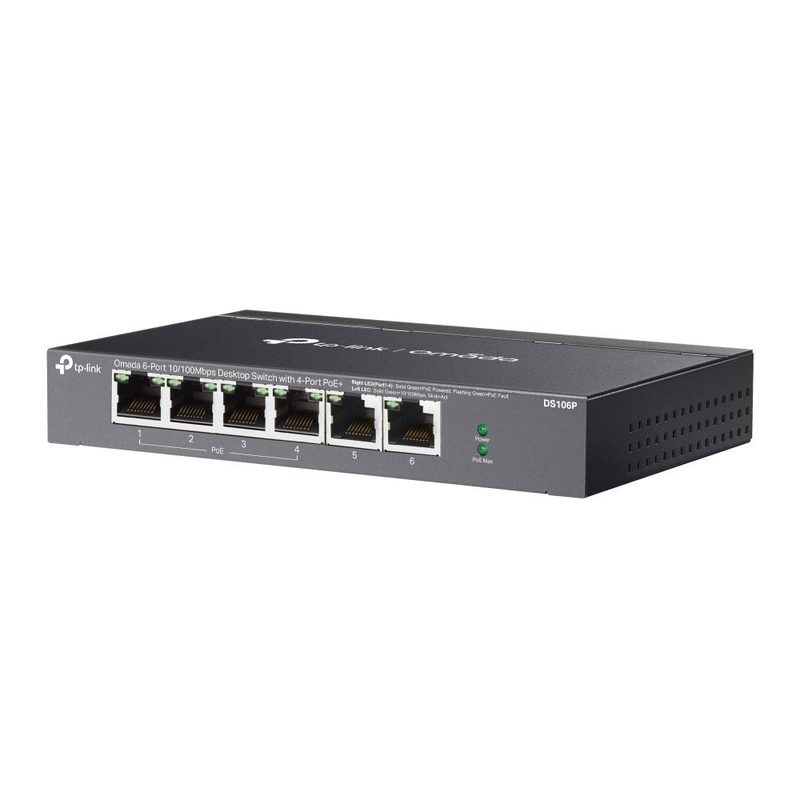

TP-Link Omada DS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-LinkModel DS106P
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100 Mbit/s
- Cables included
- Power
Overview
TP-Link Omada DS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Fanless is Yes. Ethernet LAN data rates is 10,100 Mbit/s. User guide is Yes. Reset button is Yes. Compliance certificates is CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA. Heat dissipation is 257.11 BTU/h. Switch type is Unmanaged. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cables included | Power |
|---|---|
| User guide | Yes |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Wall mountable | Yes |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Activity, Link, PoE, Power |
|---|
| Heat dissipation | 257.11 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 67 W |
| Power consumption (max) | 75.4 W |
|---|---|
| Input current | 1.31 A |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.8928 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
