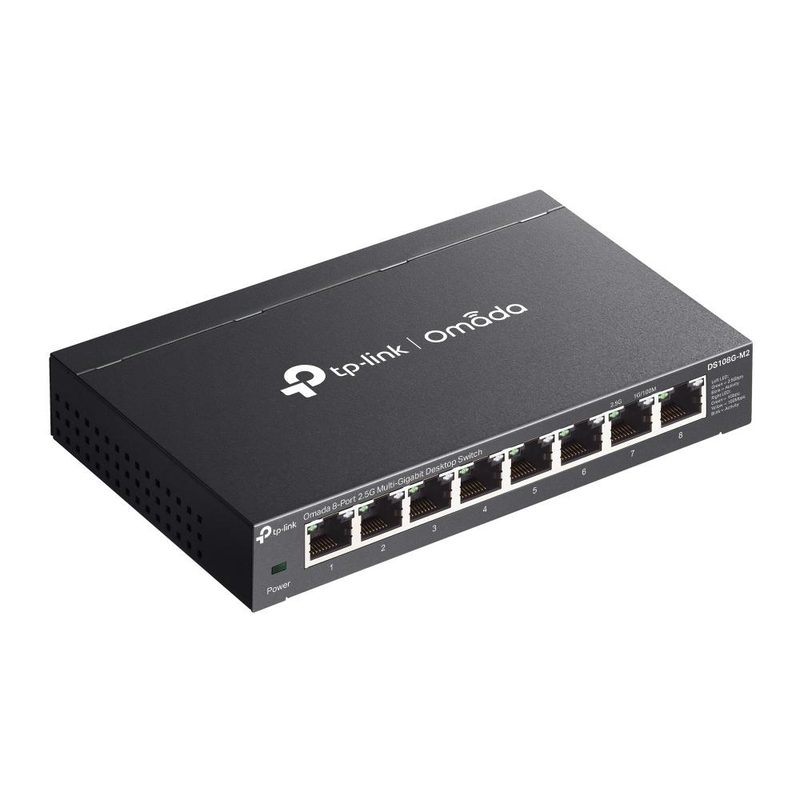

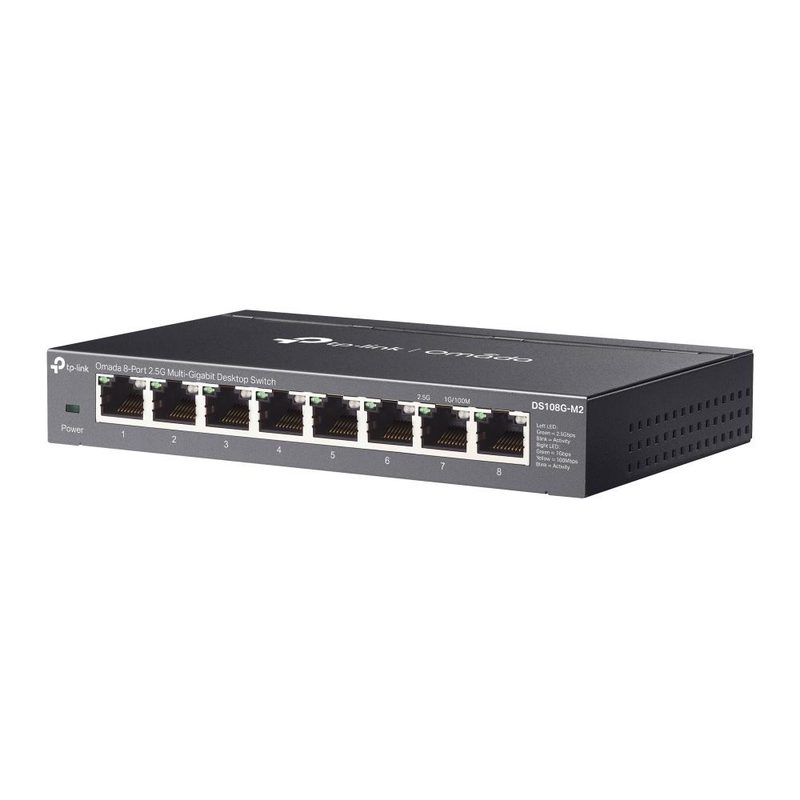

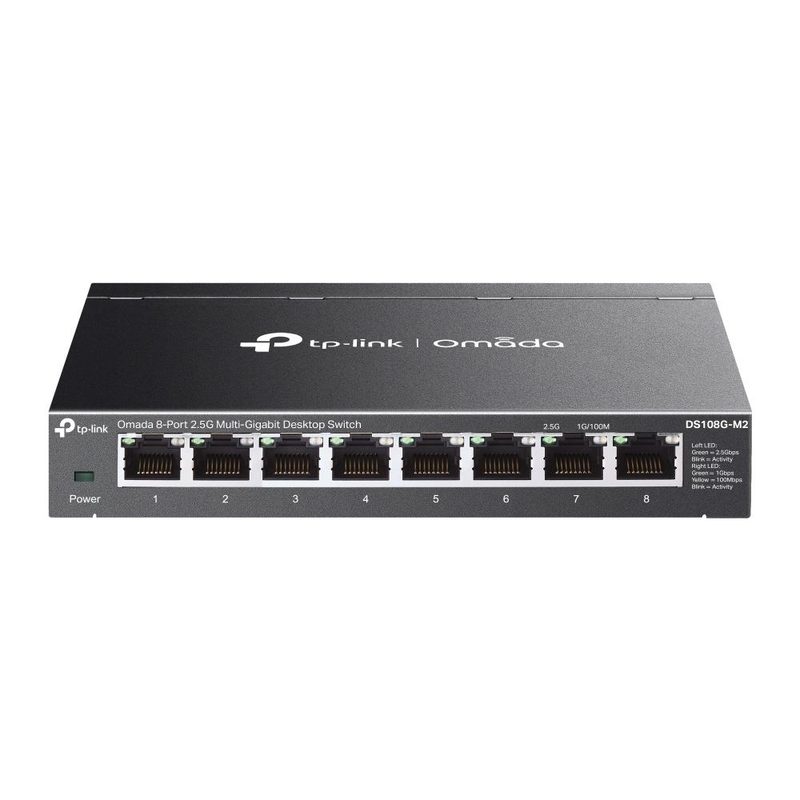

TP-Link Omada DS108G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-LinkModel DS108G-M2
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Cables included
- Power
Overview
TP-Link Omada DS108G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Fanless is Yes. Ethernet LAN data rates is 10,100,1000,2500 Mbit/s. User guide is Yes. Reset button is Yes. Packet buffer memory is 8 MB. Compliance certificates is CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA. Heat dissipation is 30.158 BTU/h. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cables included | Power |
|---|---|
| User guide | Yes |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Wall mountable | Yes |
| IGMP snooping | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25.4 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Activity, Link, Power |
|---|
| Heat dissipation | 30.158 BTU/h |
|---|
| Rubber feet | Yes |
|---|
| Power consumption (max) | 8.87 W |
|---|---|
| Input current | 1 A |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.8 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 8 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
