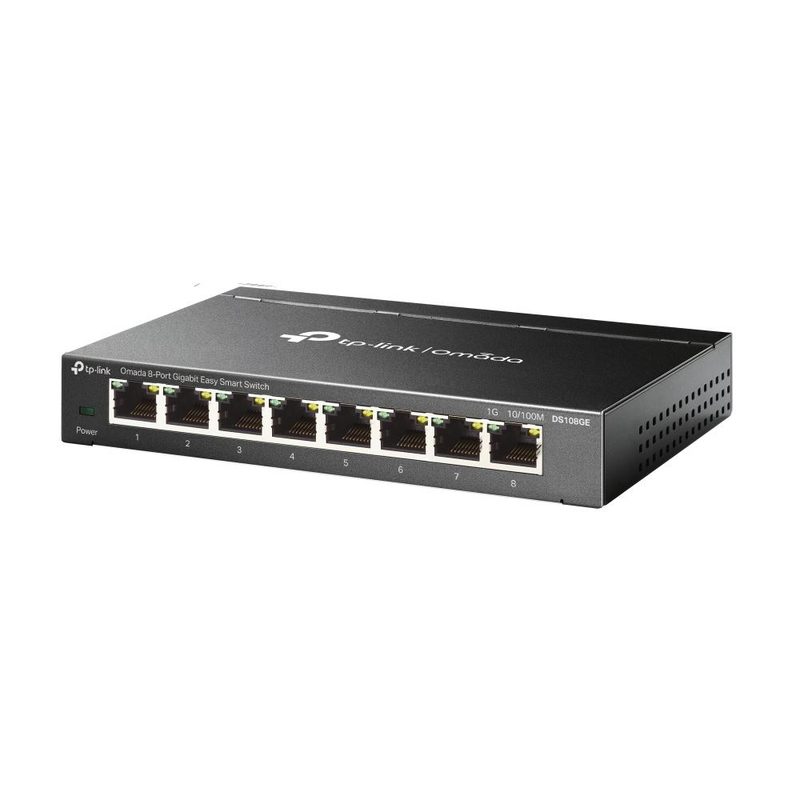

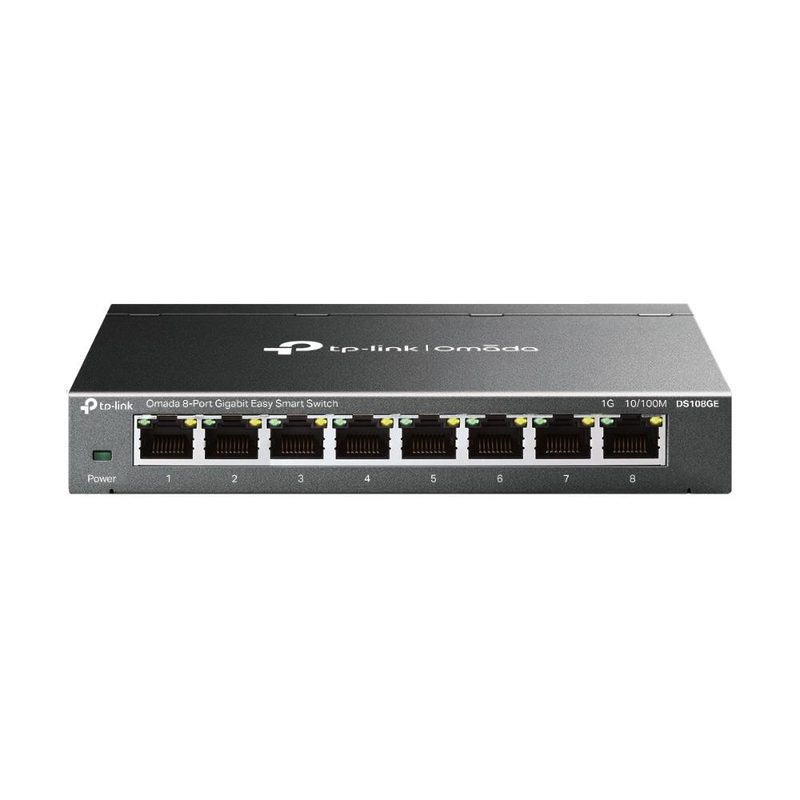

TP-Link Omada DS108GE network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-LinkModel DS108GE
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cables included
- Power
Overview
TP-Link Omada DS108GE network switch Unmanaged Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a power connector of DC-in jack and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is DC-in jack. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. Number of VLANs is 32. User guide is Yes. Virtual LAN features is Port-based VLAN, Tagged VLAN. Reset button is Yes. Packet buffer memory is 1.5 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cables included | Power |
|---|---|
| User guide | Yes |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Wall mountable | Yes |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| Auto MDI/MDI-X | Yes |
|---|---|
| Rate limiting | Yes |
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Plug and Play | Yes |
|---|---|
| LED indicators | Activity, Link, Power |
| Heat dissipation | 12.55 BTU/h |
|---|
| Power consumption (max) | 3.68 W |
|---|---|
| Input current | 0.6 A |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| IGMP snooping | Yes |
|---|---|
| Queue scheduling algorithms | Priority queuing (PQ) |
| Loop protection | Yes |
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
| Packet buffer memory | 1.5 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
