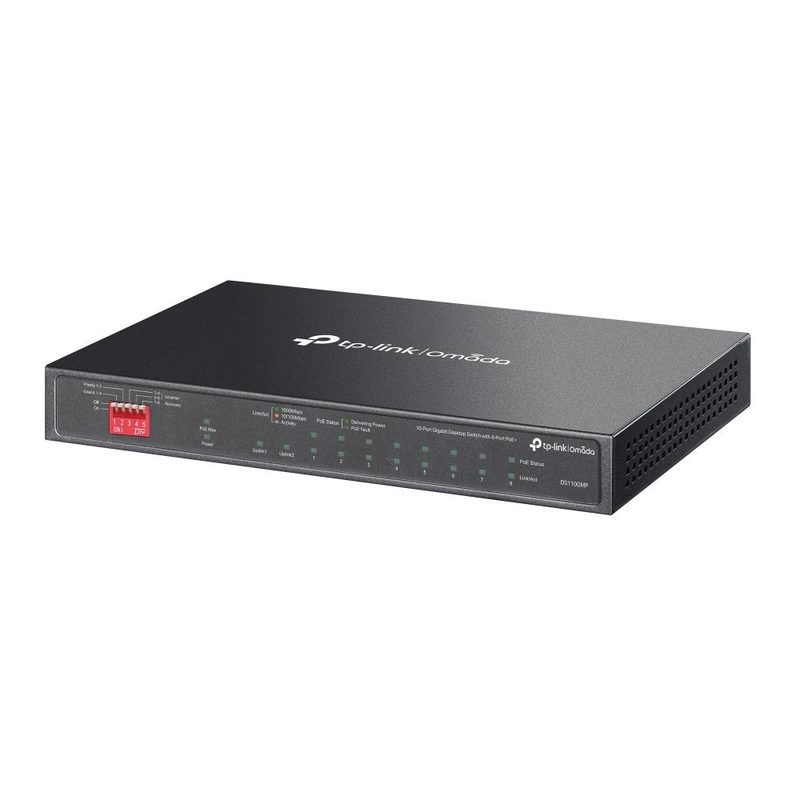

TP-Link Omada DS110GMP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LinkModel DS110GMP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
- Switch type
- Unmanaged
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cables included
- Power
Overview
TP-Link Omada DS110GMP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a power connector of AC/DC and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC/DC. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. User guide is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS. Heat dissipation is 482.17 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
|---|---|
| Switch type | Unmanaged |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cables included | Power |
|---|---|
| User guide | Yes |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Rack mounting | No |

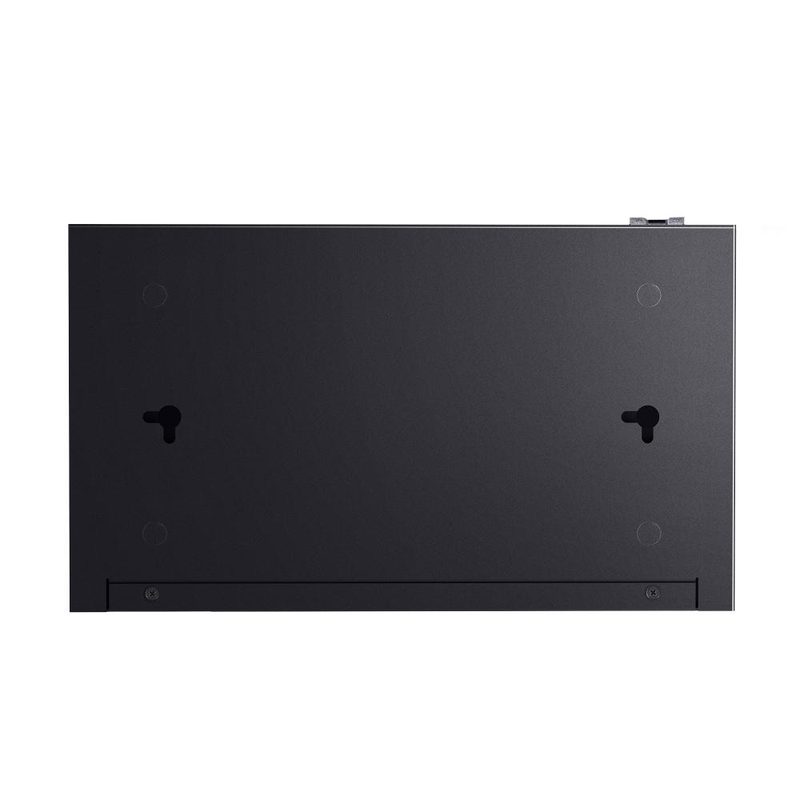

| Wall mountable | Yes |
| Quality of Service (QoS) support | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Plug and Play | Yes |
|---|---|

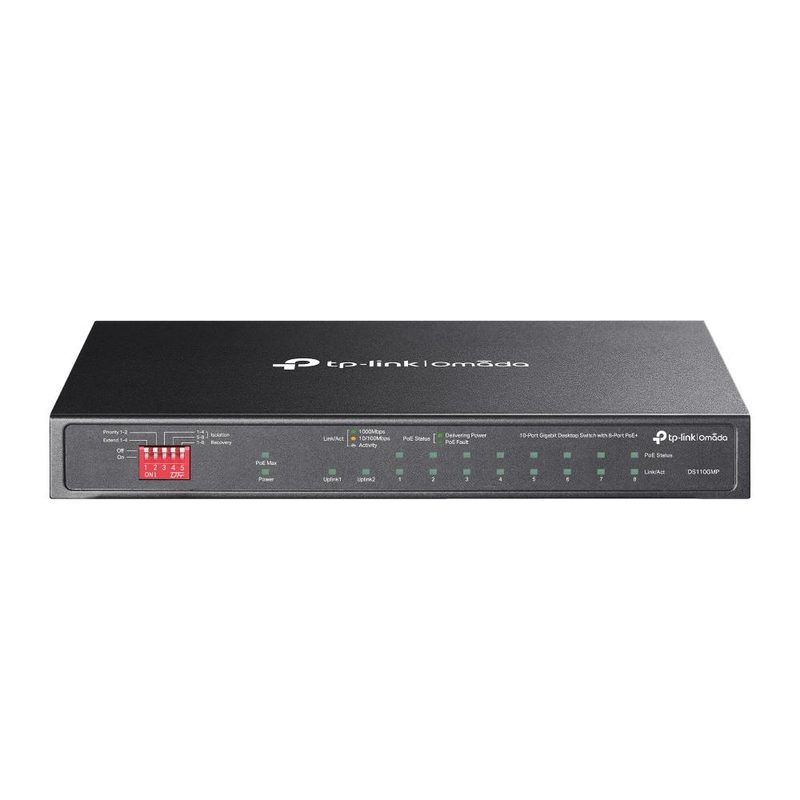

| LED indicators | Activity, Link, PoE, Power |
| Heat dissipation | 482.17 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
| Power consumption (max) | 141.4 W |
|---|---|
| Input current | 2.43 A |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Power connector | AC/DC |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
