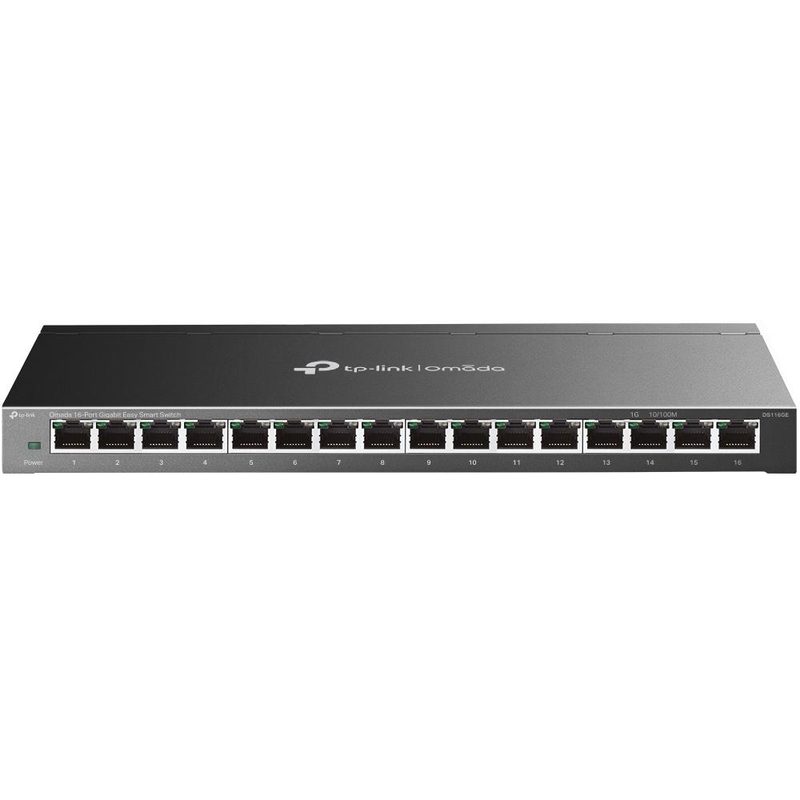

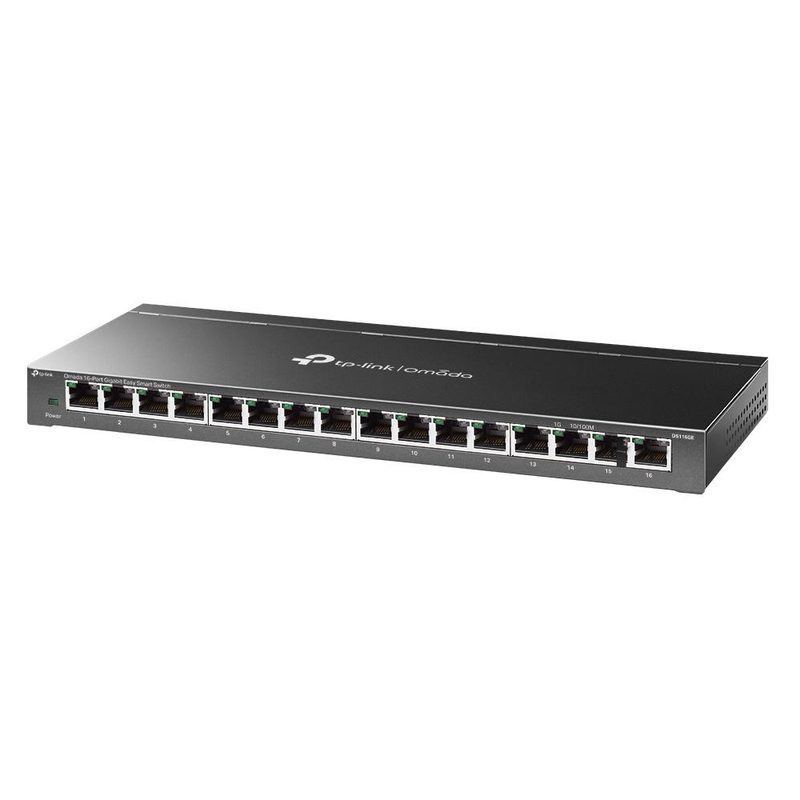

TP-Link Omada DS116GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-LinkModel DS116GE
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto MDI/MDI-X
- Yes
Overview
TP-Link Omada DS116GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a power connector of AC-in jack and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. Number of VLANs is 32. User guide is Yes. Virtual LAN features is Port-based VLAN, Tagged VLAN. Reset button is Yes. Packet buffer memory is 4.1 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
|---|---|
| Switch type | Managed |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
|---|---|
| Rate limiting | Yes |
| Width | 268 mm |
|---|---|
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 31.36 BTU/h |
|---|
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Rubber feet | Yes |
|---|
| Cables included | Power |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Power consumption (max) | 9.19 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Fanless | Yes |
|---|
| IGMP snooping | Yes |
|---|---|
| Queue scheduling algorithms | Priority queuing (PQ) |
| Loop protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Switch layer | L2 |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
