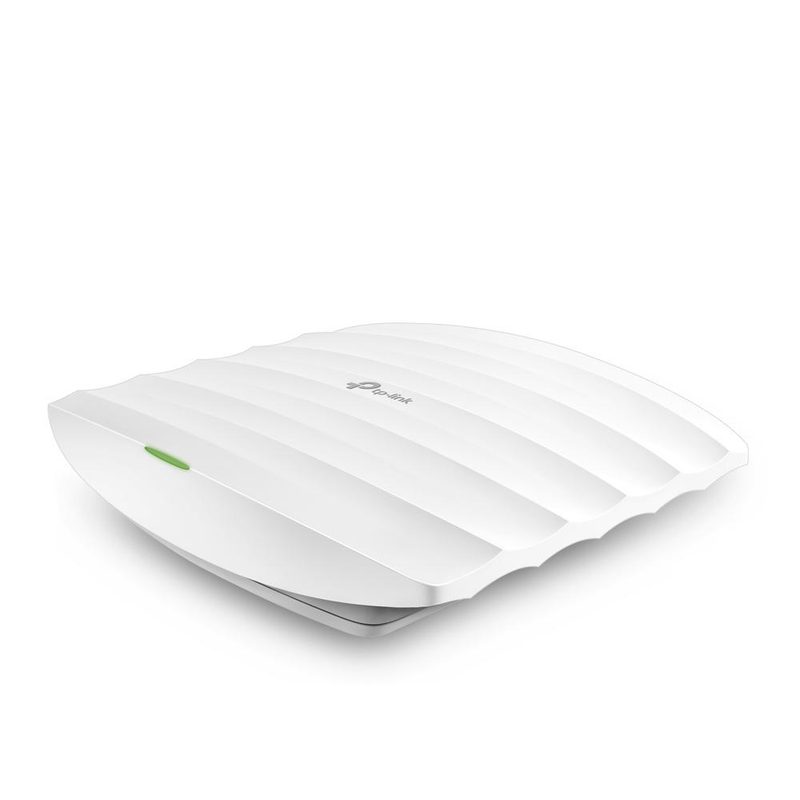

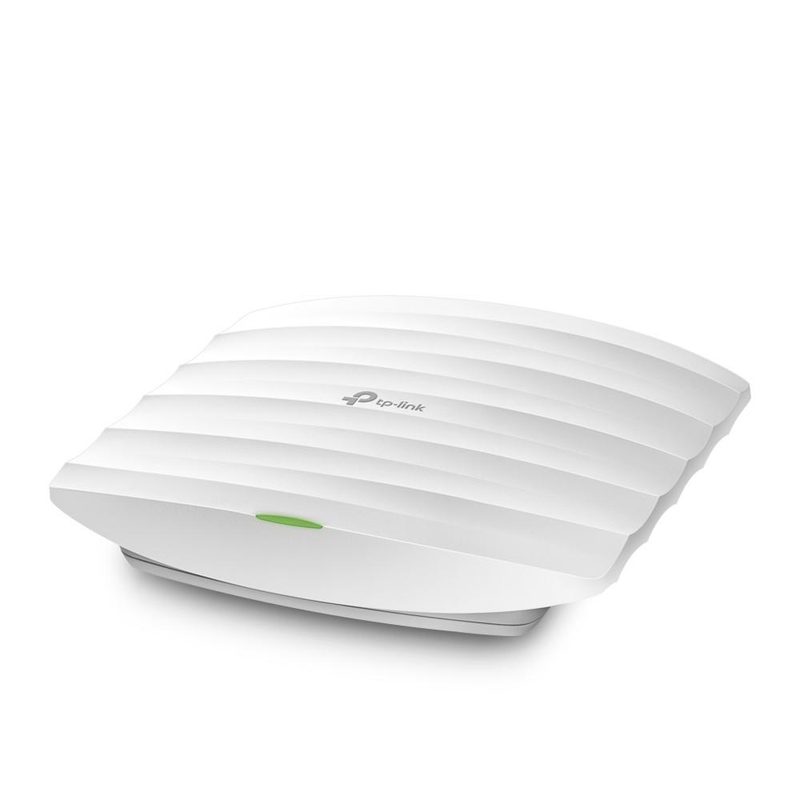

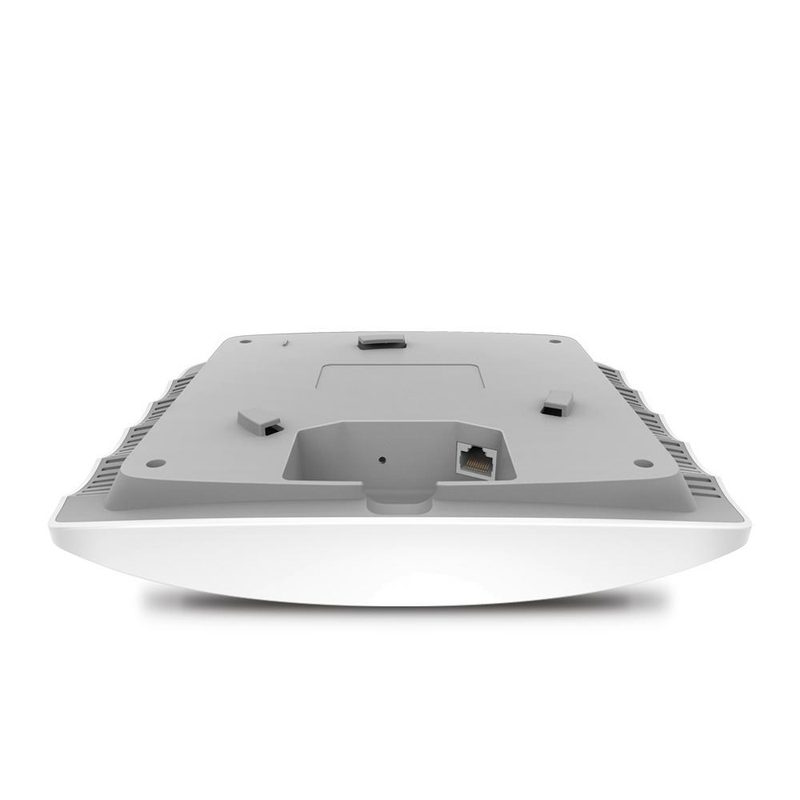

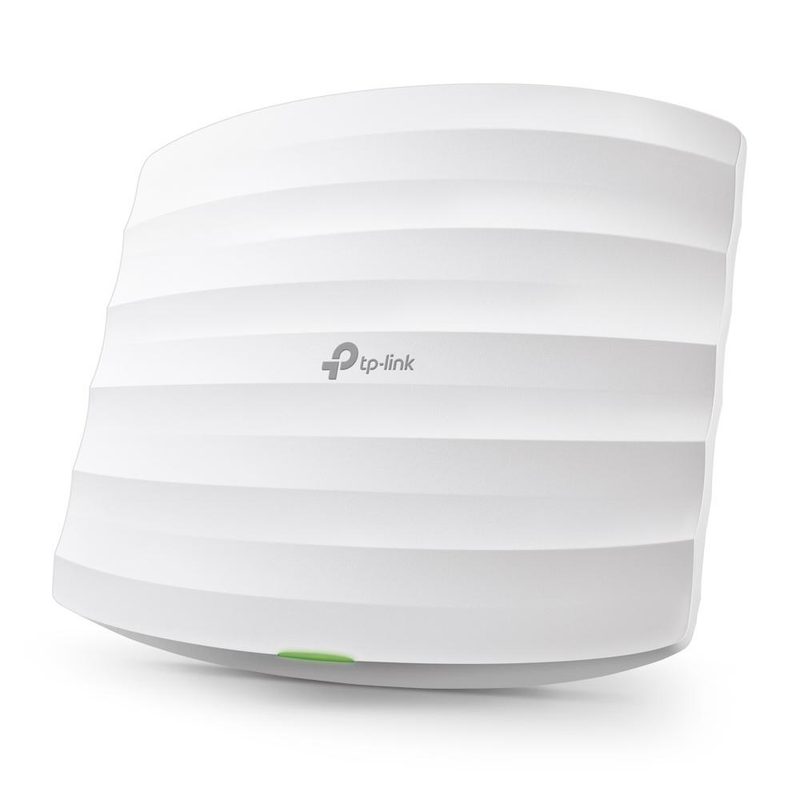

TP-Link Omada EAP225 1350 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP225 TWIN PACK/KTO
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC adapter included
- Yes
- On/off switch
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Overview
TP-Link Omada EAP225 1350 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 1 and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Virtual LAN features is VLAN mapping. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Compatible operating systems is Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux. DC-in jack is Yes. Syslog is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| AC adapter included | Yes |
|---|---|
| On/off switch | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Quantity per pack | 2 pc(s) |
|---|---|
| PoE adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna features | Integrated antenna |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 5 |
| Transmitting power (CE) | 23 dBm |
| Power consumption (typical) | 10.15 W |
|---|---|
| Output current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Virtual LAN features | VLAN mapping |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1350 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 205.5 mm |
|---|---|
| Depth | 181.5 mm |
| Height | 37.1 mm |
| Package width | 228 mm |
|---|---|
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 910 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | 24 dBm |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| LED indicators | Power, WLAN |
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|---|
| DC-in jack | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
