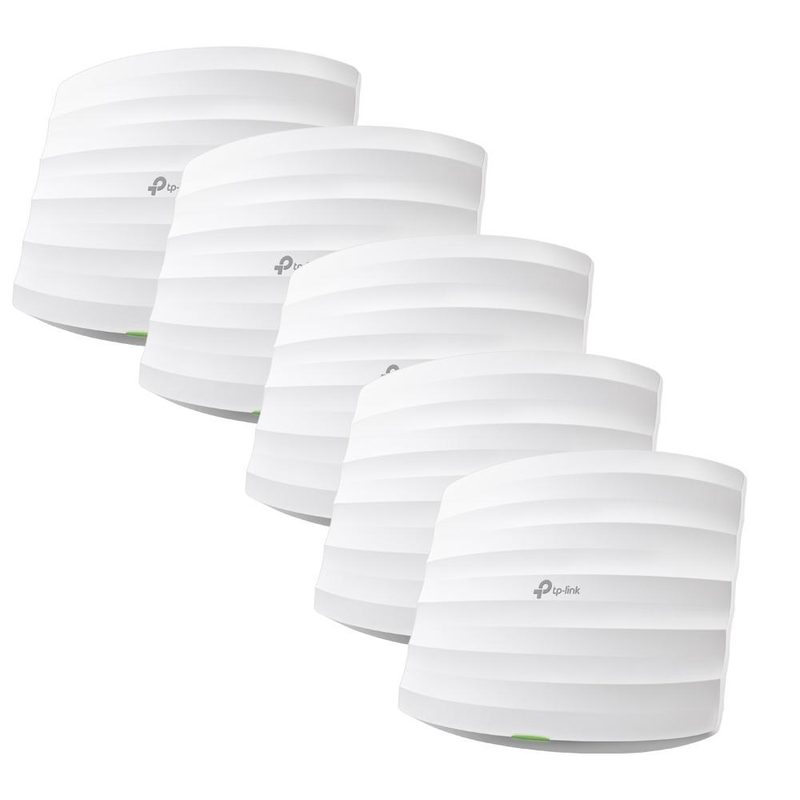

TP-Link Omada EAP245(5-PACK)(EU) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP245(5-PACK)(EU)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- Federal Communications Commission (FCC), CE, RoHS
- Compatible operating systems
- Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 2
Overview
TP-Link Omada EAP245(5-PACK)(EU) wireless access point 1750 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a sustainability compliance of Yes and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Harmonized System (HS) code is 85176990. Management protocols is HTTP/HTTPS. Ethernet LAN (RJ-45) ports is 2. Ethernet LAN data rates is 10,100,1000 Mbit/s. Virtual LAN features is SSID-based VLAN assignment. Reset button is Yes. Compliance certificates is Federal Communications Commission (FCC), CE, RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Harmonized System (HS) code | 85176990 |
|---|
| Quantity per pack | 5 pc(s) |
|---|---|
| Cables included | AC |
| PoE adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Management protocols | HTTP/HTTPS |
|---|
| Antenna features | Integrated antenna |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Transmitting power (CE) | 20 - 23 dBm |
| Power consumption (typical) | 12.3 W |
|---|---|
| AC input voltage | 48 V |
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| Sustainability compliance | Yes |
|---|
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Virtual LAN features | SSID-based VLAN assignment |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1750 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 180 mm |
|---|---|
| Depth | 180 mm |
| Height | 47.5 mm |
| Package width | 257.5 mm |
|---|---|
| Package depth | 285.5 mm |
| Package height | 283.5 mm |
| Package weight | 3.54 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Transmitting power | 27 dBmW |
|---|
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | 24 dBm |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Frequency band | 2.4, 5 GHz |
|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
