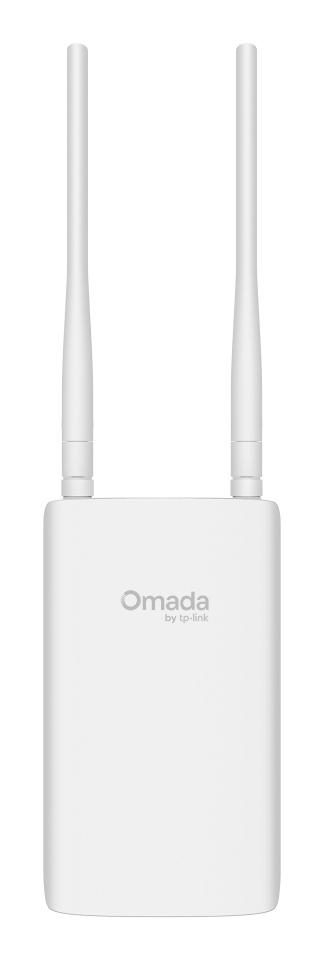

TP-Link Omada EAP603-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP603-OUTDOOR
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- PoE adapter included
- Yes
- Quick start guide
- Yes
- Mounting kit
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Overview
TP-Link Omada EAP603-Outdoor 1800 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a backup function of Yes and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Backup function is Yes. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Maximum outdoor range is 300 m. Remote Authentication Dial-In User Service (RADIUS) is Yes. International Protection (IP) code is IP65, IP66. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Security algorithms is EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| PoE adapter included | Yes |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 4 |
| Power consumption (max) | 4.8 W |
|---|---|
| Input current | 0.36 A |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
|---|---|
| Antenna type | Internal & external |
| Security algorithms | EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Guest access | Yes |
|---|---|
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| IP address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Maximum outdoor range | 300 m |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Width | 230 mm |
|---|---|
| Depth | 207.5 mm |
| Height | 69.7 mm |
| Operating temperature (T-T) | -30 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Pole, Wall |
| Antenna direction type | Omni-directional |
| International Protection (IP) code | IP65, IP66 |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Cloud-managed | Yes |
| Backup function | Yes |
| Bluetooth | Yes |
|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
