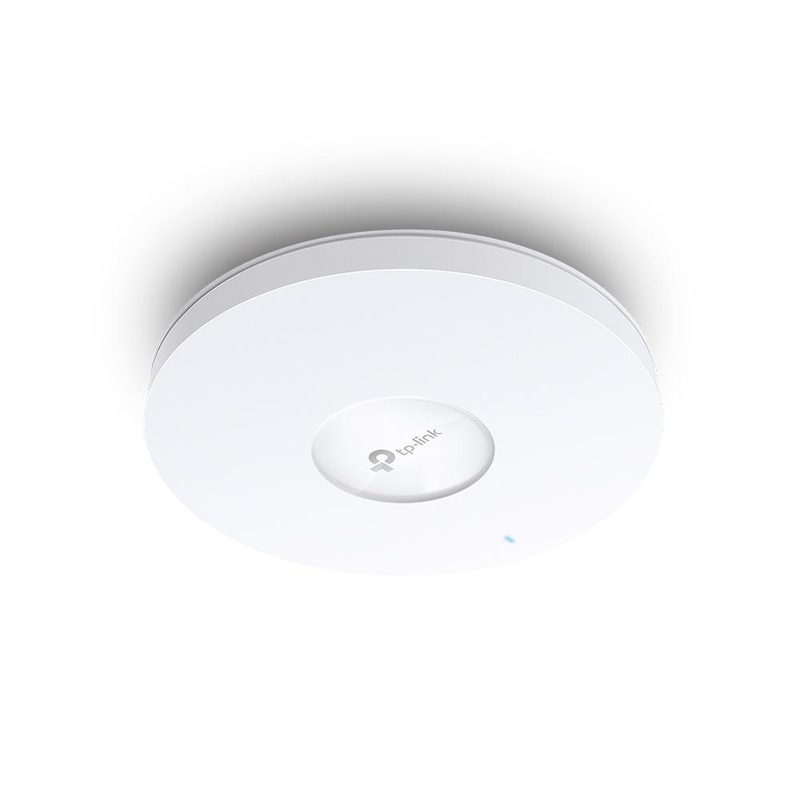

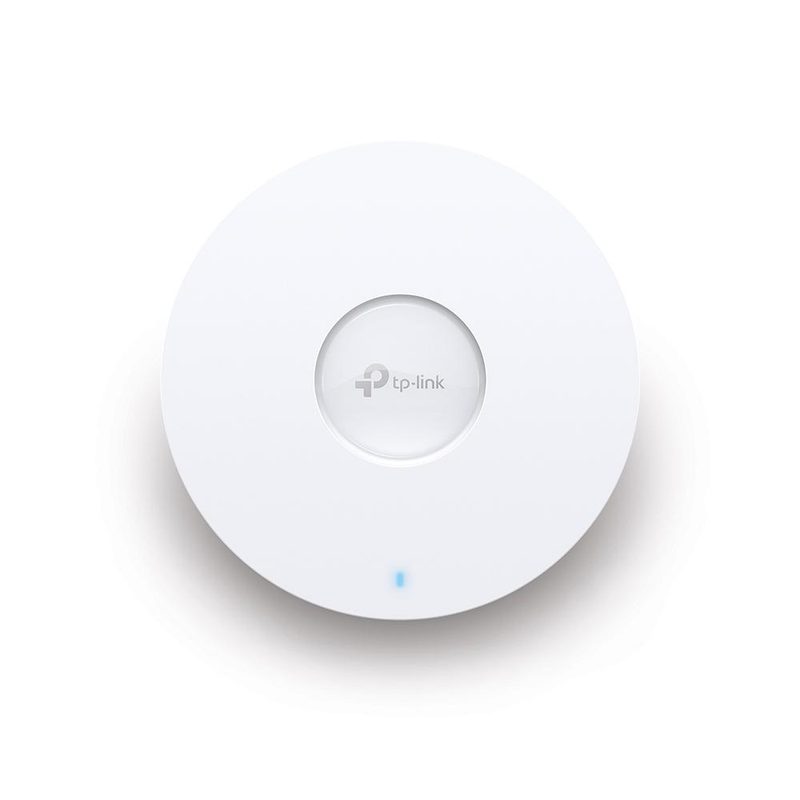

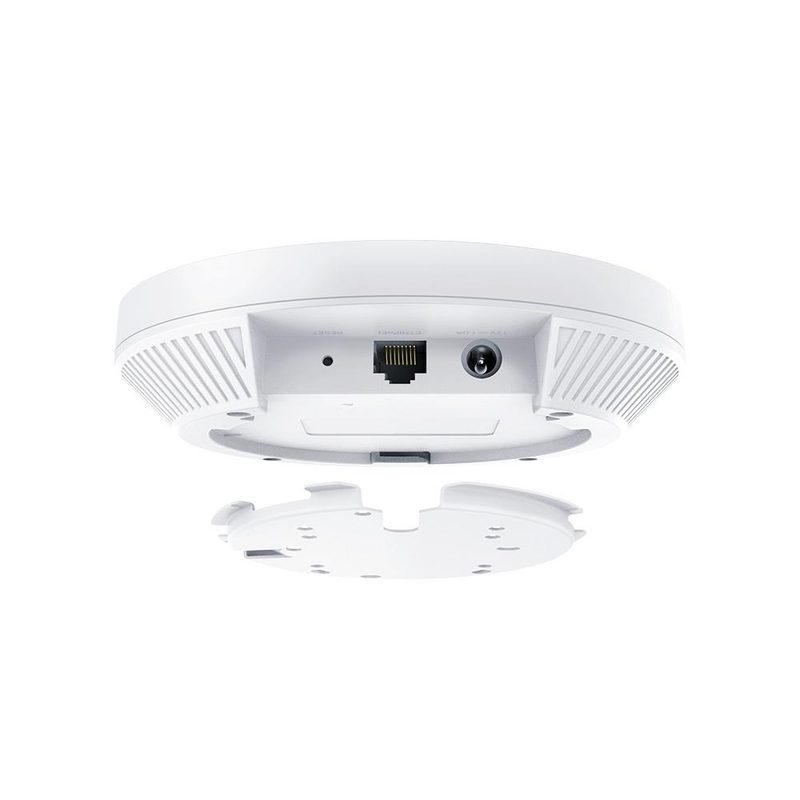

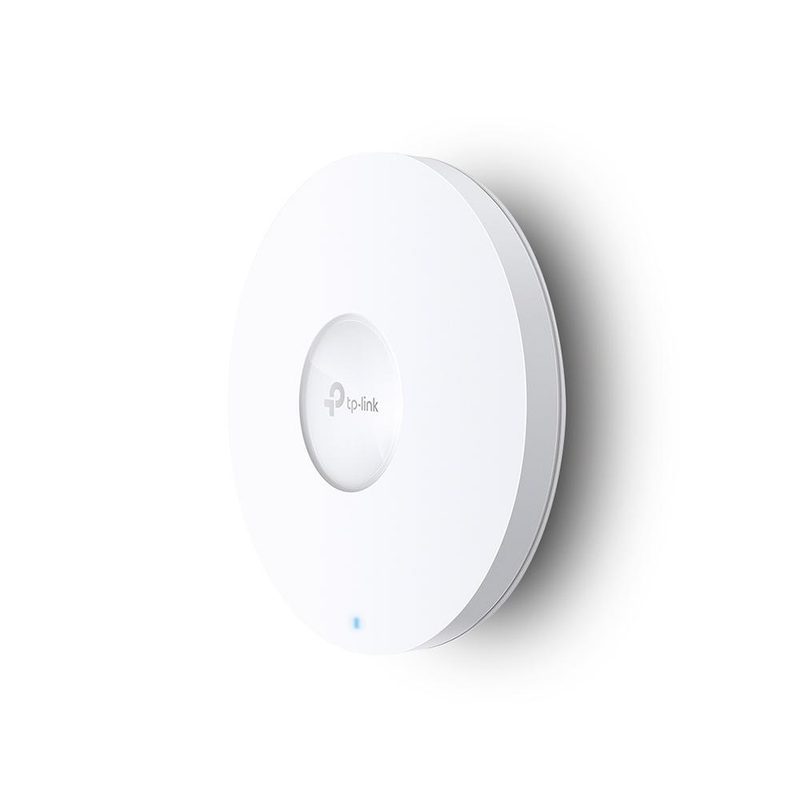

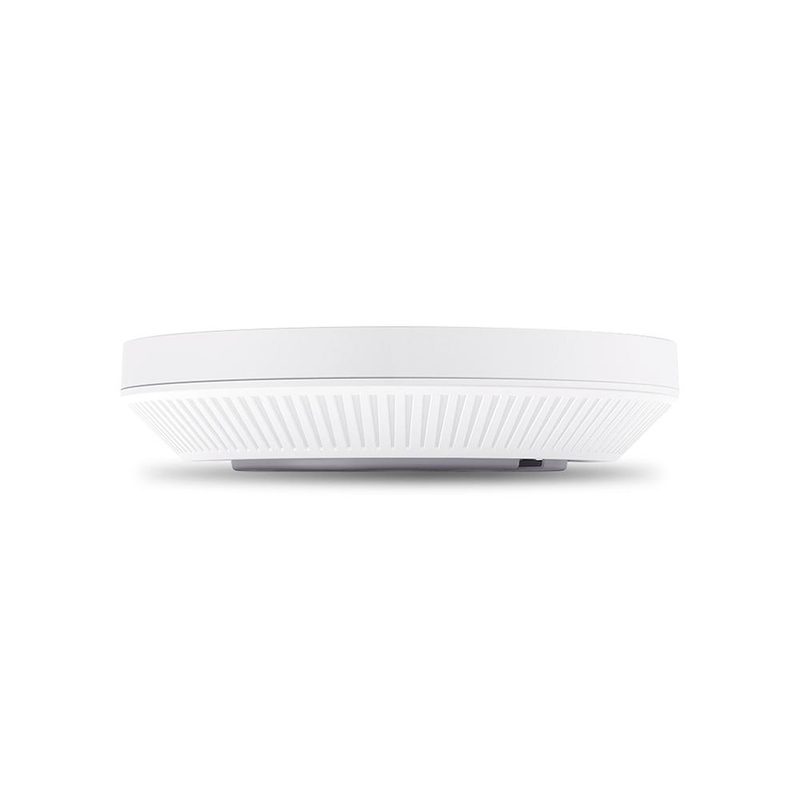

TP-Link Omada EAP650 2976 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP650 TWIN PACK/KTO
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 250 user(s)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, FCC, RoHS
Overview
TP-Link Omada EAP650 2976 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a certification of CE, FCC, RoHS and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Firmware upgradeable is Yes. Reset button is Yes. DC-in jack is Yes. Flow control support is Yes. Syslog is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 250 user(s) |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, FCC, RoHS |
| Quantity per pack | 2 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| MAC address filtering | Yes |
|---|
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 12 V |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| Flow control support | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 33.6 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Transmitting power (FCC) | <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|---|
| DC-in jack | Yes |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
