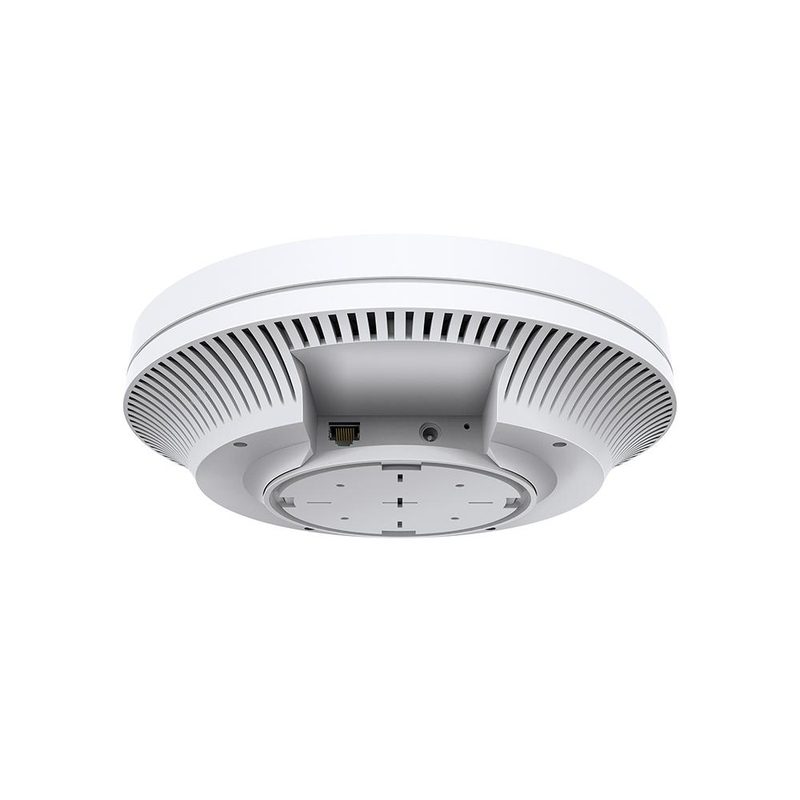

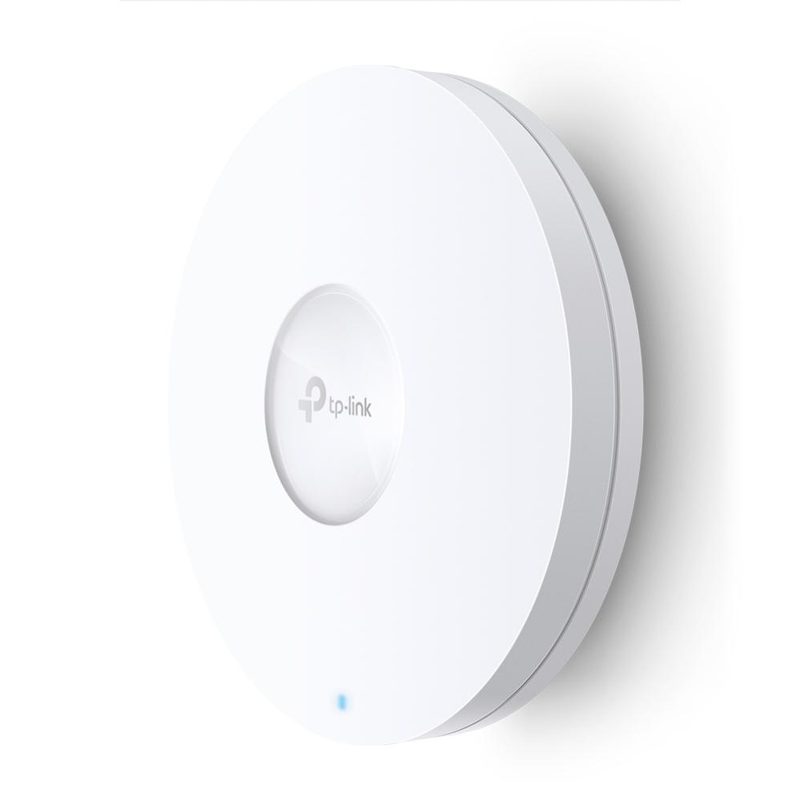

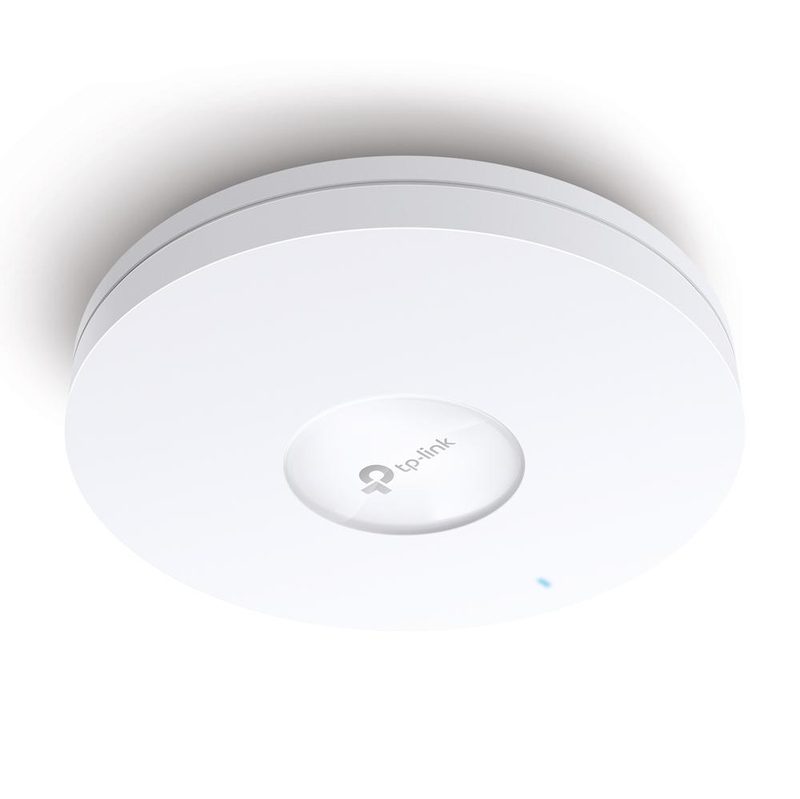

TP-Link Omada EAP660 HD(EU) wireless access point 2402 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP660 HD(EU)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- Mounting kit
- Yes
- Ethernet LAN data rates
- 25000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link Omada EAP660 HD(EU) wireless access point 2402 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a harmonized system (hs) code of 85176990 and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Harmonized System (HS) code is 85176990. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 25000 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. DC-in jack is Yes. Syslog is Yes. Security algorithms is WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK. Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| Mounting kit | Yes |
|---|
| Ethernet LAN data rates | 25000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | White |
|---|---|
| Placement | Ceiling |
| Output current | 2 A |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Web-based management | Yes |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Wi-Fi roaming | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 243 mm |
|---|---|
| Depth | 243 mm |
| Height | 64 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| USB 2.0 ports quantity | 0 |
|---|---|
| DC-in jack | Yes |
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
