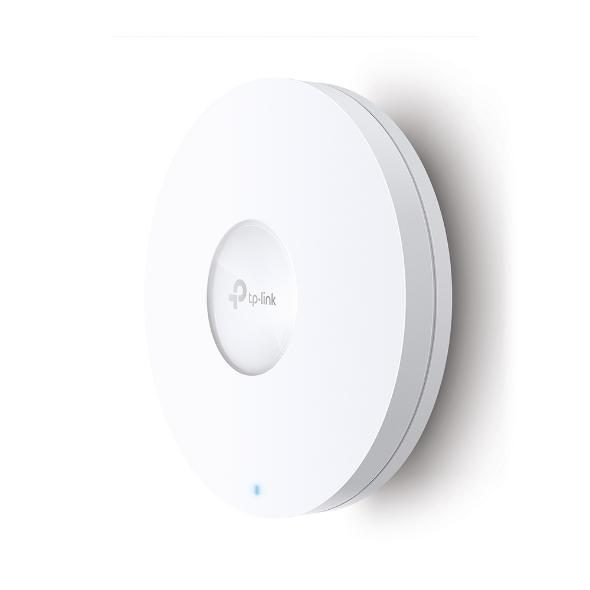

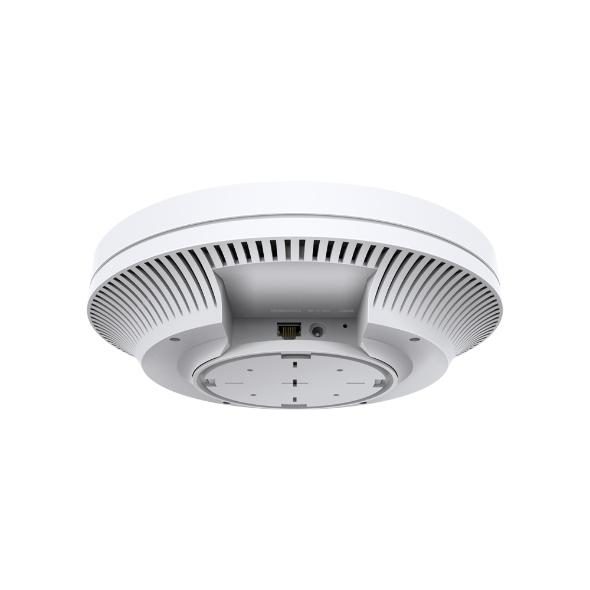

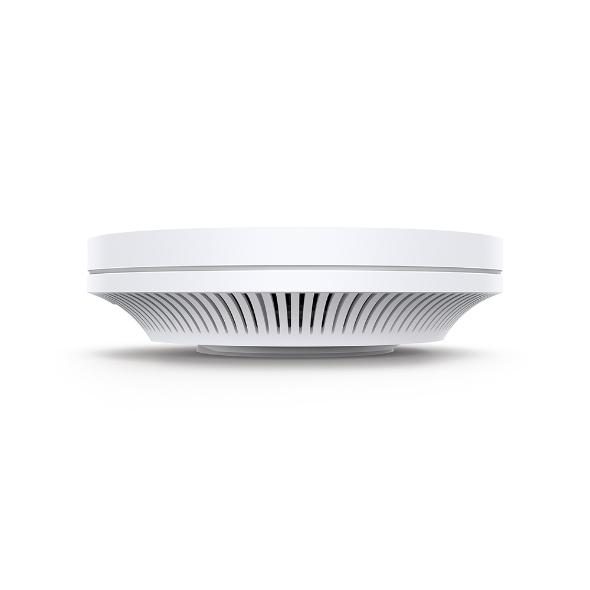

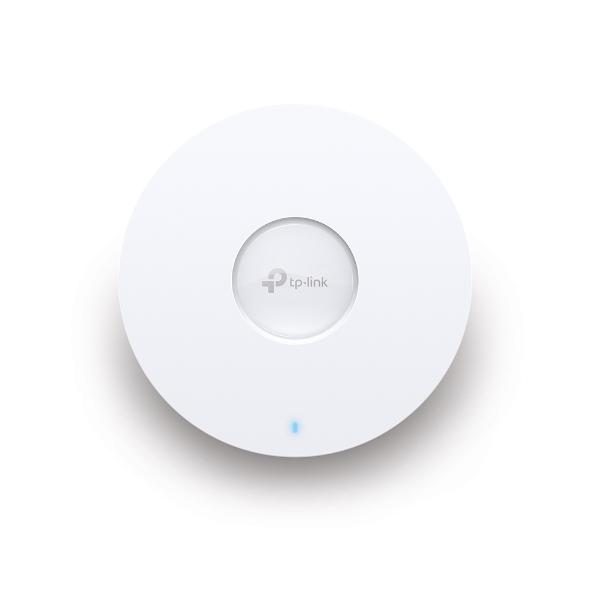

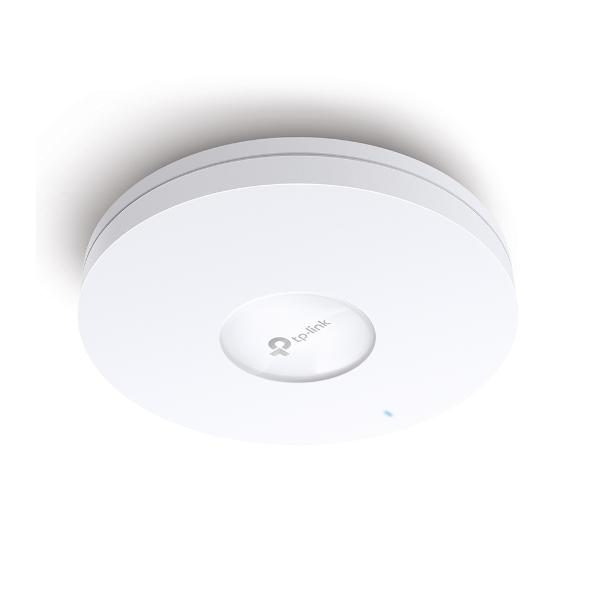

TP-Link Omada EAP670 5400 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP670-KTO
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 250 user(s)
- Ethernet LAN data rates
- 2500 Mbit/s
- Certification
- CE, FCC, RoHS
- Antenna gain level (max)
- 5 dBi
Overview
TP-Link Omada EAP670 5400 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a certification of CE, FCC, RoHS and a ethernet lan data rates of 2500 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Ethernet LAN data rates is 2500 Mbit/s. Firmware upgradeable is Yes. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. International Protection (IP) code is IP67. Number of users is 250 user(s). Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 250 user(s) |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s |
| Certification | CE, FCC, RoHS |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 6 |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP) |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Input current | 1.5 A |
|---|---|
| Power over Ethernet (PoE) | Yes |
| VLAN support | No |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Quantity per pack | 1 pc(s) |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 5400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Width | 243 mm |
|---|---|
| Depth | 243 mm |
| Height | 64 mm |
| Package width | 302 mm |
|---|---|
| Package depth | 304 mm |
| Package height | 82 mm |
| Package weight | 1.32 kg |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <28 dBm (5 GHz) |
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| Frequency band | 2.4 - 5 GHz |
|---|
Warranty
3 year limited warranty
