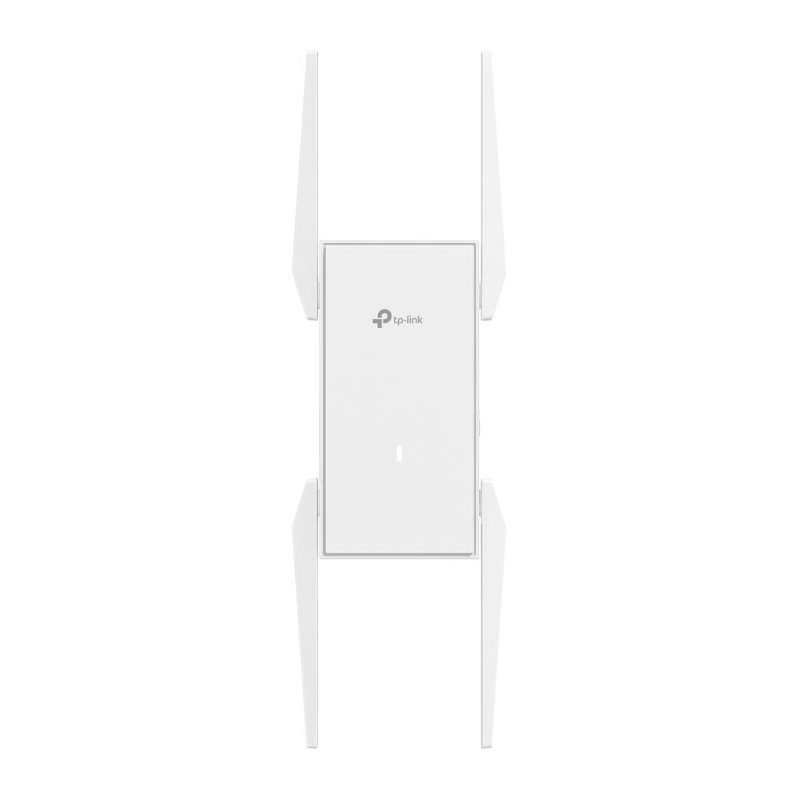

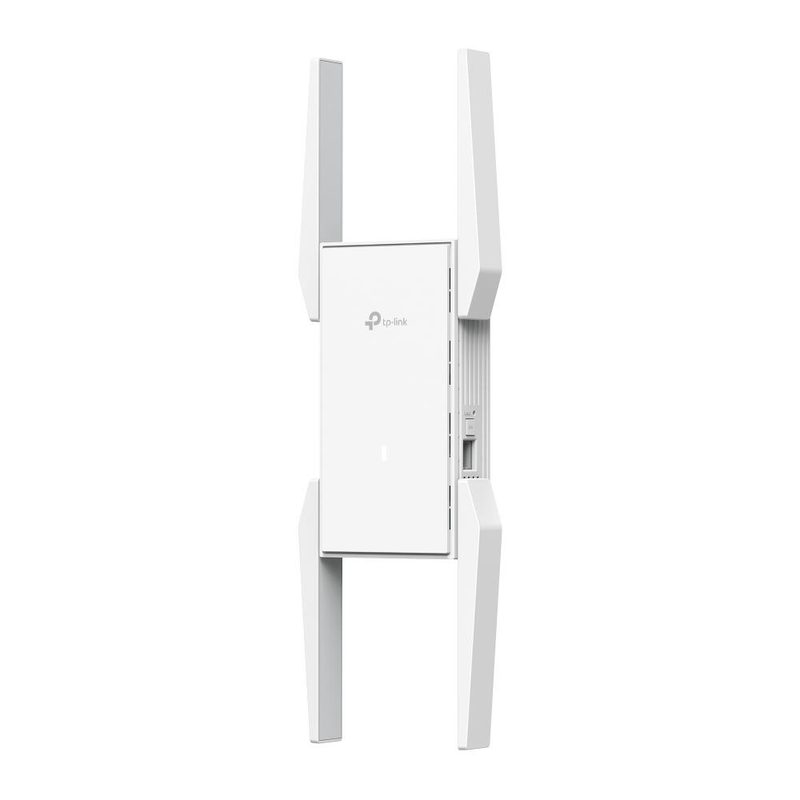

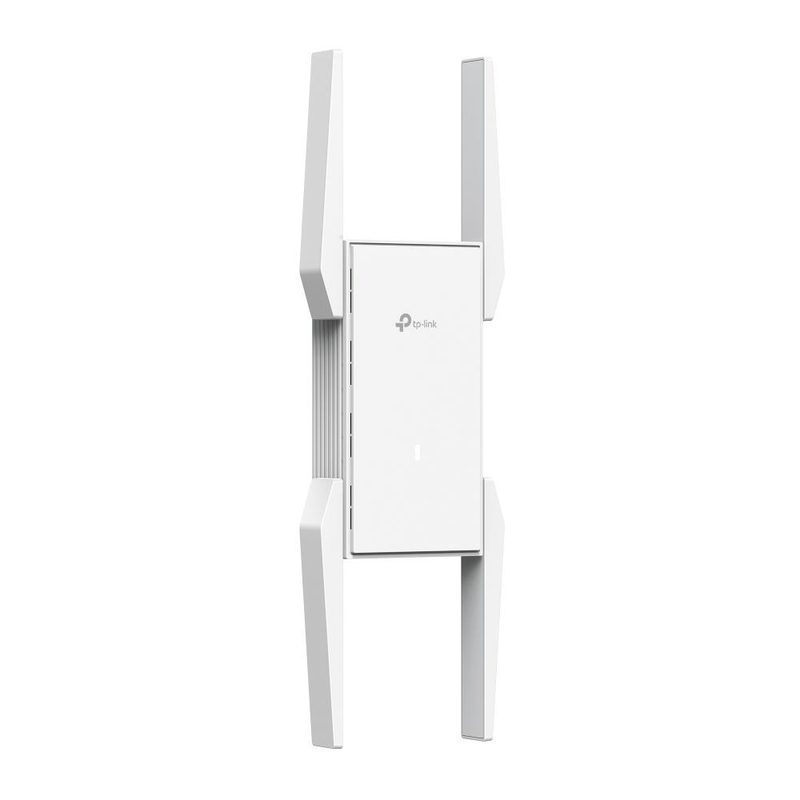

TP-Link Omada EAP673-Extender Network repeater White 10, 100, 1000 Mbit/s
TP-LinkModel EAP673-EXTENDER
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 250 user(s)
- Compliance certificates
- CE, Federal Communications Commission (FCC), JRF, RCM, RoHS, UL, VCCI
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link Omada EAP673-Extender Network repeater White 10, 100, 1000 Mbit/s is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 1 and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Reset button is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), JRF, RCM, RoHS, UL, VCCI. Security algorithms is 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK. Weight is 436.6 g. Number of users is 250 user(s). Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Number of users | 250 user(s) |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), JRF, RCM, RoHS, UL, VCCI |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 4 |
| Transmitting power (CE) | <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Width | 160 mm |
|---|---|
| Depth | 80 mm |
| Height | 37.8 mm |
| Weight | 436.6 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Housing material | Polycarbonate (PC) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz) <28 dBm (5 GHz) |
| Power consumption (max) | 18 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Type | Network repeater |
|---|
| BeamForming | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Web-based management | Yes |
|---|---|
| Airtime scheduling | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | External |
| Wi-Fi data rate (max) | 4800 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
