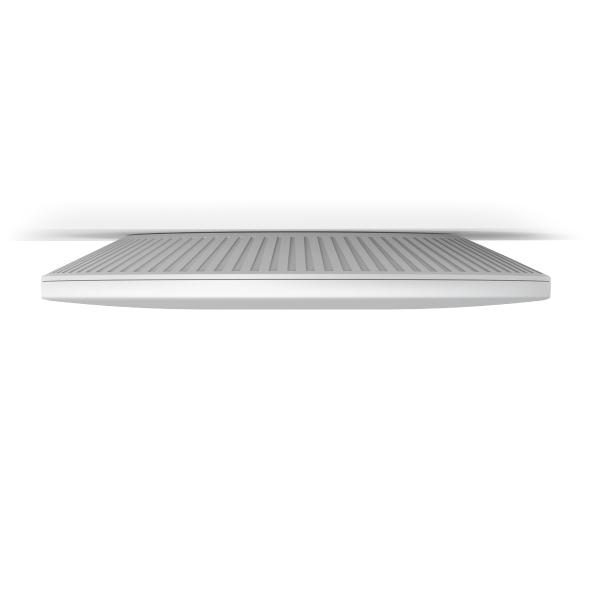

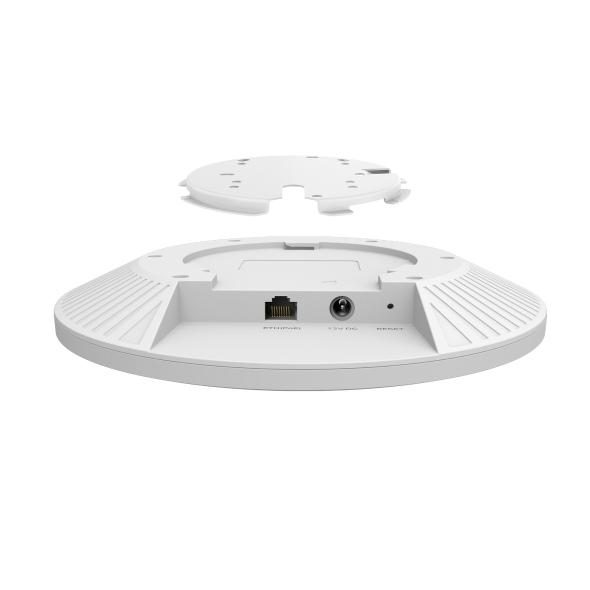

TP-Link Omada EAP683 UR 6000 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP683 UR(EU)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 510 user(s)
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Quantity per pack
- 1 pc(s)
Specifications
| Number of users | 510 user(s) |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna gain level (max) | 5 dBi |
|---|
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 12 V |
| Access Control List (ACL) | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| MAC address filtering | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 6000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Fast roaming | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 220 mm |
|---|---|
| Depth | 220 mm |
| Height | 32.5 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Omni-directional |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|---|
| DC-in jack | Yes |
| Frequency band | 2.4 - 6 GHz |
|---|
