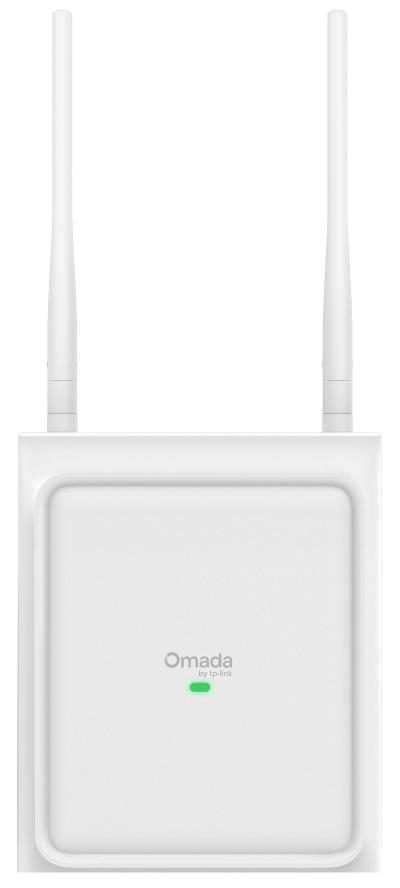

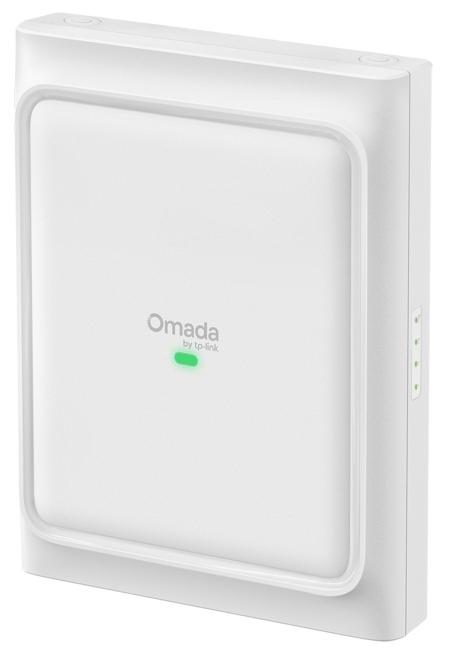

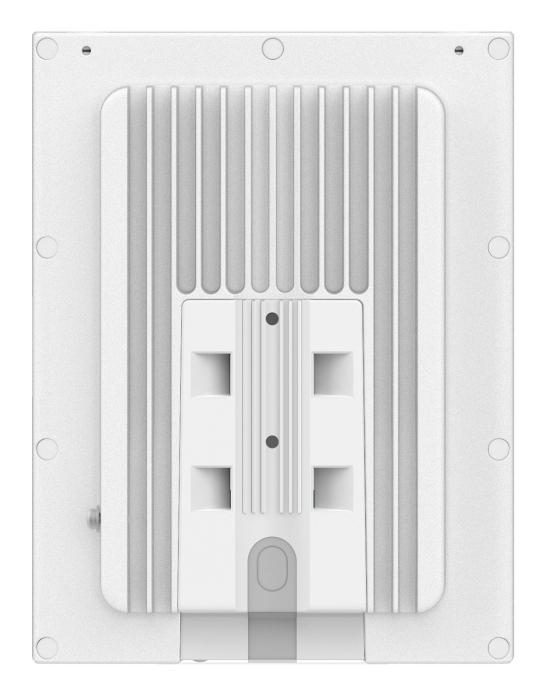

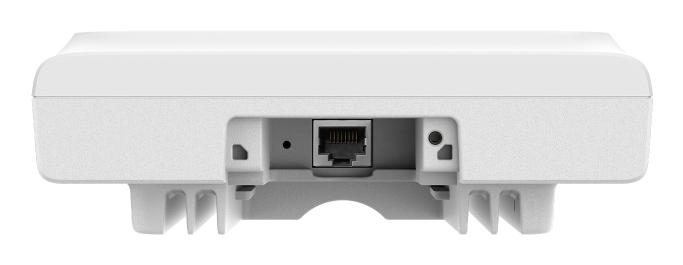

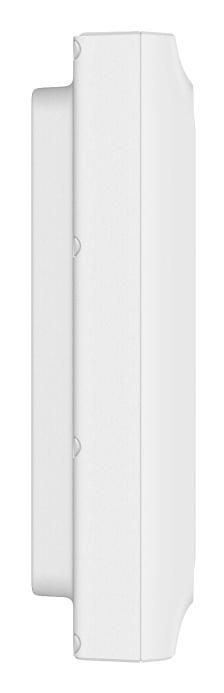

TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP725-OUTDOOR
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Quantity per pack
- 1 pc(s)
- Mounting kit
- Yes
- Compliance certificates
- BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
Overview
TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 1 and a ethernet lan data rates of 10,100,1000,2500 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000,2500 Mbit/s. Virtual LAN features is Management VLAN. Reset button is Yes. International Protection (IP) code is IP66. Compliance certificates is BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI. Syslog is Yes. Security algorithms is OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Quantity per pack | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Antenna gain level (max) | 13.2 dBi |
|---|---|
| Antennas quantity | 8 |
| Schedule access | Yes |
|---|---|
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Product colour | White |
|---|---|
| Placement | Pole, Wall |
| International Protection (IP) code | IP66 |
| Power consumption (max) | 18.4 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Web-based management | Yes |
|---|---|
| Cloud-managed | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at |
| Cabling technology | 10/100/1000/2500Base-T |
| Antenna type | Internal & external |
| Security algorithms | OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Virtual LAN features | Management VLAN |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4324 Mbit/s |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Width | 208 mm |
|---|---|
| Depth | 160 mm |
| Height | 55 mm |
| Weight | 1.33 kg |
| Operating temperature (T-T) | -30 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Status |
|---|
| BeamForming | Yes |
|---|
| Bluetooth | Yes |
|---|---|
| Bluetooth version | 5.2 |
| USB 2.0 ports quantity | 0 |
| Bluetooth Low Energy (BLE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
Warranty
3 year limited warranty
