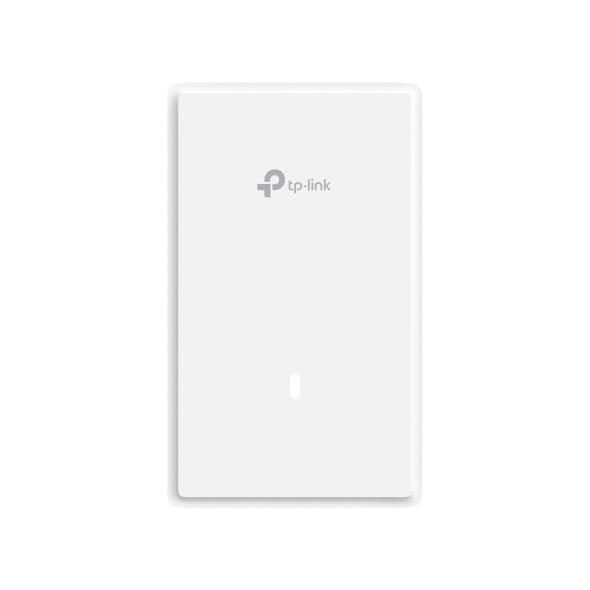

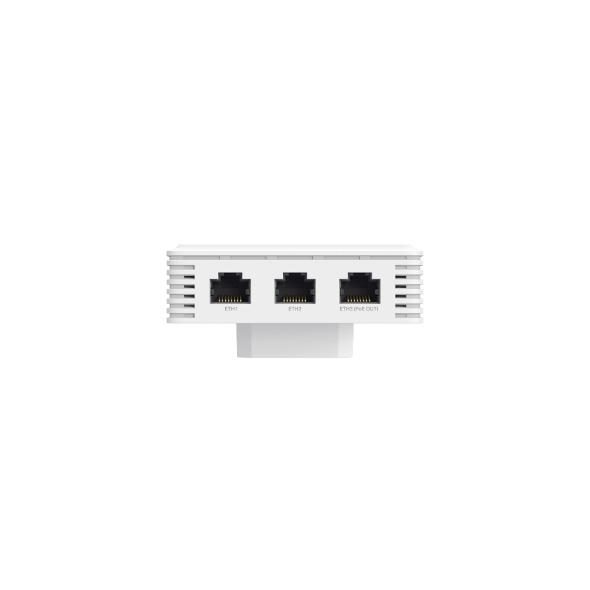

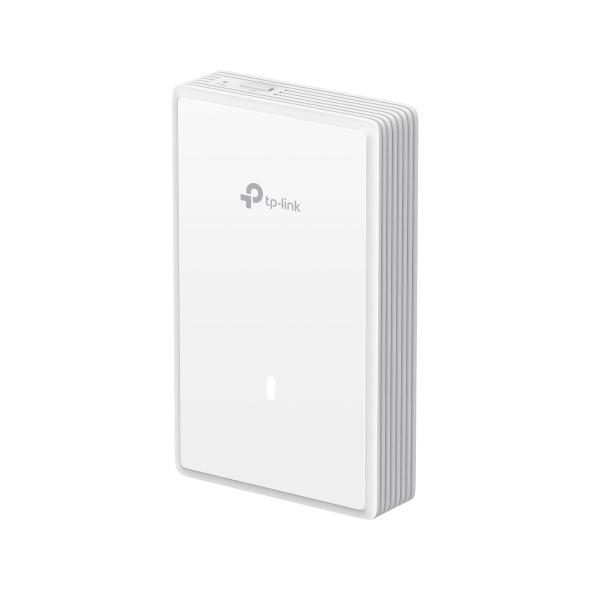

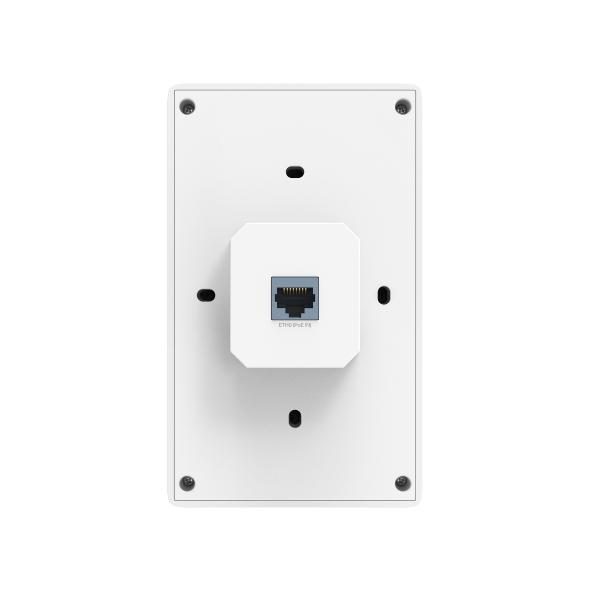

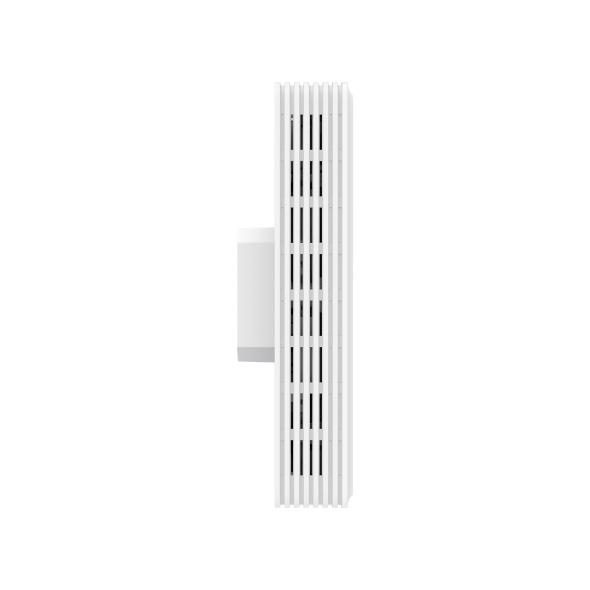

TP-Link Omada EAP725-Wall 5012 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP725-WALL
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 250 user(s)
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Ethernet LAN (RJ-45) ports
- 3
Overview
TP-Link Omada EAP725-Wall 5012 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a certification of FCC, RoHS and a ethernet lan (rj-45) ports of 3. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, RoHS. Ethernet LAN (RJ-45) ports is 3. Ethernet LAN data rates is 10,100,1000,2500 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Compatible operating systems is Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux. Security algorithms is WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Number of users is 250 user(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 250 user(s) |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Certification | FCC, RoHS |
| Quantity per pack | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 4 |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Power consumption (max) | 17 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Antenna type | Internal |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
|---|---|
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 5012 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Airtime Fairness (ATF) | Yes |
| Width | 86 mm |
|---|---|
| Depth | 40 mm |
| Height | 143 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| Access Control List (ACL) | Yes |
|---|---|
| Reset button | Yes |
Warranty
3 year limited warranty
