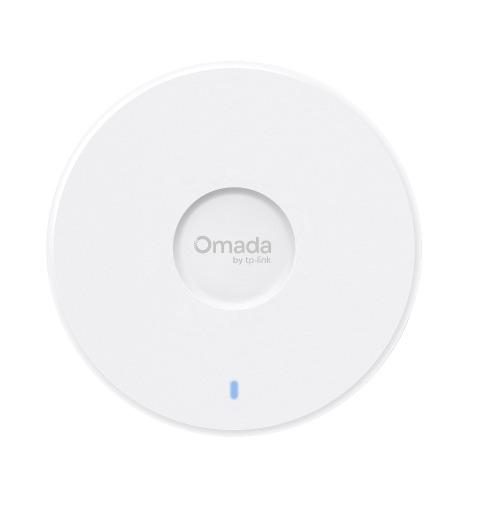

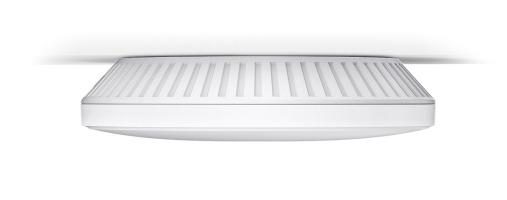

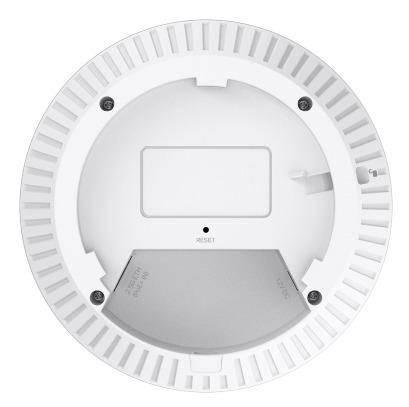

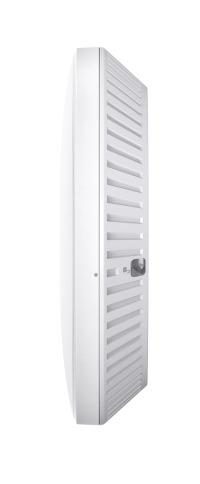

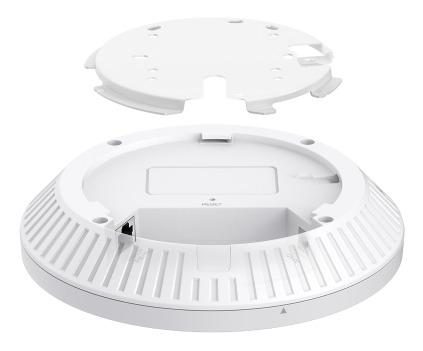

TP-Link Omada EAP727 wireless access point 5012 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP727
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 510 user(s)
- Compliance certificates
- CE, JRF, ICES
- Ethernet LAN data rates
- 10,100,1000,25000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link Omada EAP727 wireless access point 5012 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a country of origin of China and a management protocols of NMP v1, SNMP v2c, SNMP v3, SSH. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Country of origin is China. Management protocols is NMP v1, SNMP v2c, SNMP v3, SSH. Supported network protocols is IPv4, IPv6, LLDP, mDNS. Backup function is Yes. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000,25000 Mbit/s. Firmware upgradeable is Yes. Traffic statistics is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 510 user(s) |
|---|---|
| Compliance certificates | CE, JRF, ICES |
| Ethernet LAN data rates | 10,100,1000,25000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Country of origin | China |
|---|
| DHCP client | Yes |
|---|---|
| Management protocols | NMP v1, SNMP v2c, SNMP v3, SSH |
| Antenna features | Integrated antenna |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Antennas quantity | 5 |
| Transmitting power (CE) | 30 dBm |
| Power consumption (max) | 15.6 W |
|---|---|
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Power supply | 18 W |
| Web-based management | Yes |
|---|---|
| Command-line interface (CLI) | Yes |
| Access Control List (ACL) | Yes |
| Cloud-managed | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Wireless meshing | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Traffic statistics | Yes |
| Backup function | Yes |
| Ethernet LAN | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11ax |
| Cabling technology | 10/100/1000/2500Base-T |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Number of guest networks (2.4 GHz) | 8 |
| Security algorithms | WPA, WPA3, WPA2 |
| Full duplex | Yes |
| Supported network protocols | IPv4, IPv6, LLDP, mDNS |
| Guest access | Yes |
|---|---|
| Schedule access | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Channel bandwidth | 160 MHz |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 5012 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4324 Mbit/s |
| Coverage area | 185 m² |
| Duplex mode auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Spatial streams | 5 |
| Wi-Fi roaming | Yes |
| Fast roaming | Yes |
| Number of WLAN connections (max) | 16 |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 36.7 mm |
| Weight | 470 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 0 - 2000 m |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Antenna direction type | Omni-directional |
| Transmitting power (FCC) | 27 dBm |
| Wall mountable | Yes |
| LED indicators | Yes |
|---|
| Bluetooth | Yes |
|---|---|
| Bluetooth version | 5.2 |
| DC-in jack | Yes |
| Number of simultaneously connected devices (max) | 510 |
|---|---|
| BeamForming | Yes |
| Built-in processor | Yes |
| Bluetooth Low Energy (BLE) | Yes |
|---|
Warranty
3 year limited warranty
