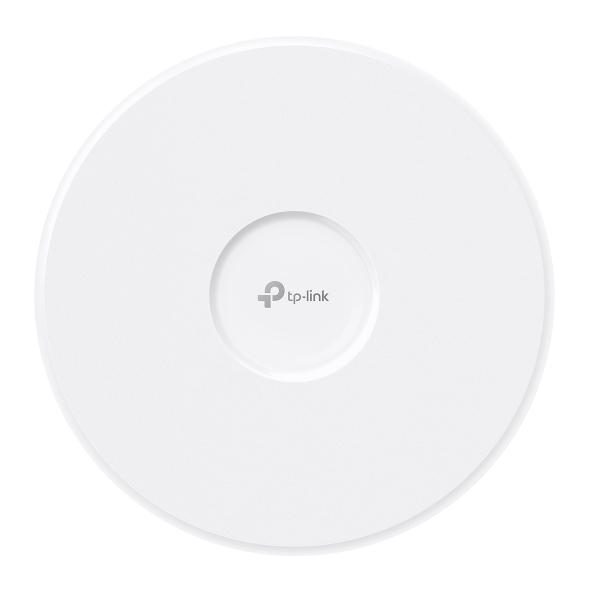

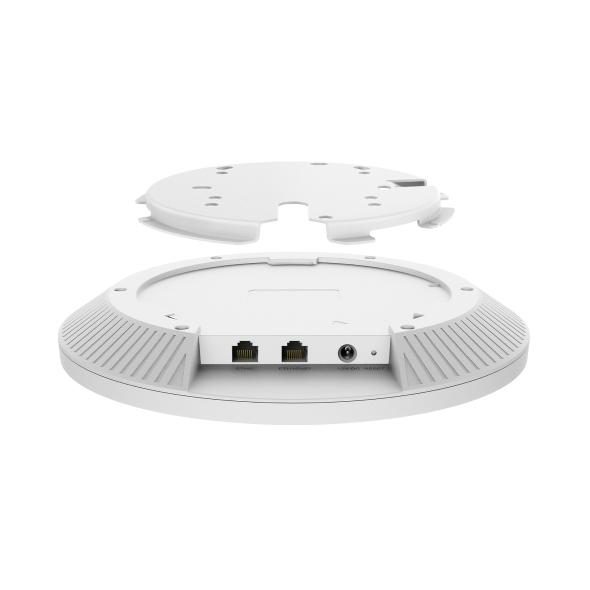

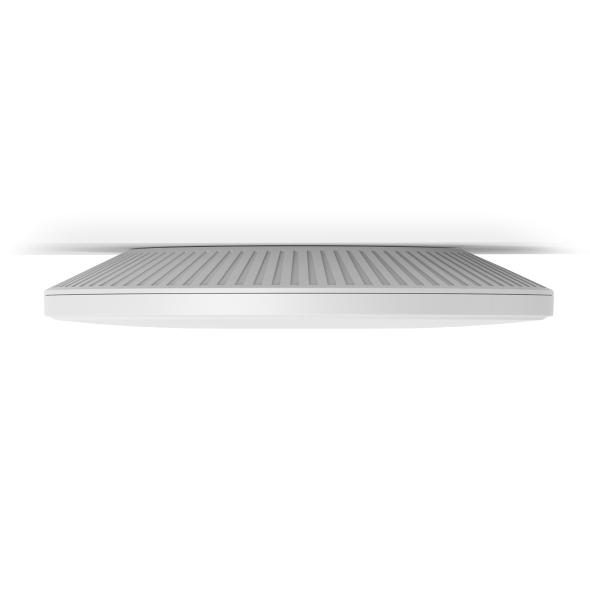

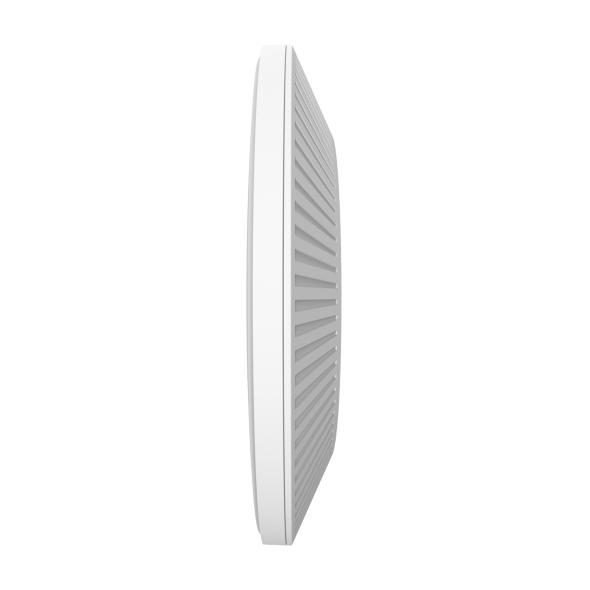

TP-Link Omada EAP783(EU) wireless access point 19000 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP783(EU)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of users
- 760 user(s)
- Ethernet LAN data rates
- 10000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 2
- Quantity per pack
- 1 pc(s)
Overview
TP-Link Omada EAP783(EU) wireless access point 19000 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 2 and a ethernet lan data rates of 10000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 2. Ethernet LAN data rates is 10000 Mbit/s. Reset button is Yes. DC-in jack is Yes. Flow control support is Yes. Security algorithms is WPA, WPA2, WPA3. Number of users is 760 user(s). Quality of Service (QoS) support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Number of users | 760 user(s) |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 12 V |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | WPA, WPA2, WPA3 |
| Flow control support | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Width | 280 mm |
|---|---|
| Depth | 280 mm |
| Height | 46.5 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|---|
| DC-in jack | Yes |
| Access Control List (ACL) | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 6 GHz |
|---|
Warranty
3 year limited warranty
