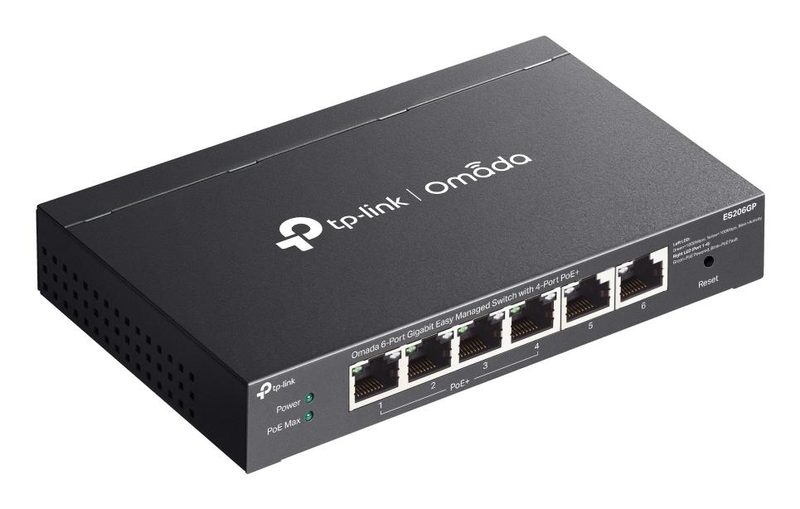

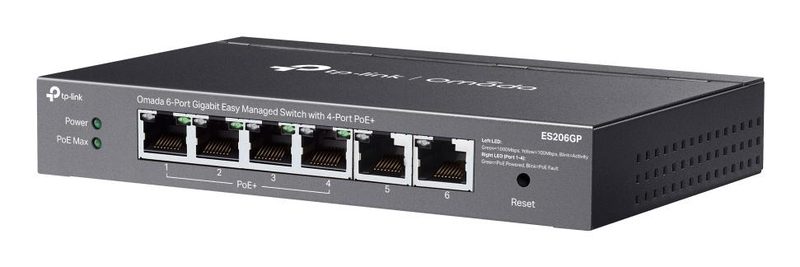

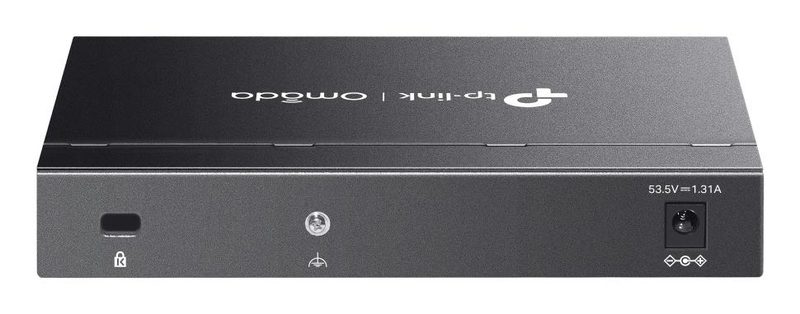

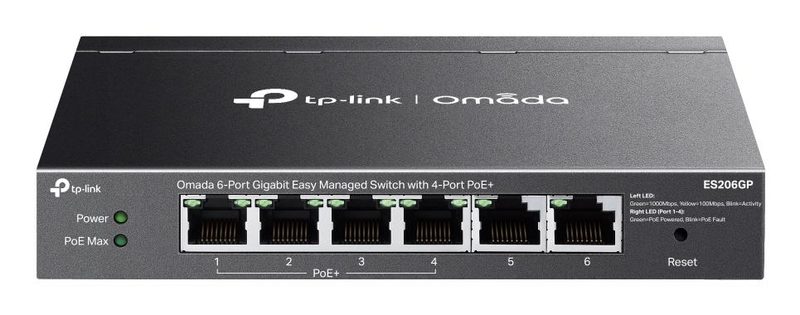

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LinkModel ES206GP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC adapter included
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- User guide
- Yes
Overview
TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a fanless of Yes and a firmware upgradeable of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Fanless is Yes. Firmware upgradeable is Yes. Surge protection voltage is 6 kV. User guide is Yes. Virtual LAN features is MTU VLAN, Port-based VLAN, Tagged VLAN. Reset button is Yes. Packet buffer memory is 4 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Switch type | Managed |
| User guide | Yes |
|---|
| Product colour | Black |
|---|---|
| Wall mountable | Yes |
| Auto MDI/MDI-X | Yes |
|---|---|
| Surge protection | Yes |
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Input current | 1.31 A |
|---|---|
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Surge protection voltage | 6 kV |
| Fanless | Yes |
|---|
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Loop protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| Transmission distance (max) | 0.25 km |
|---|
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Fast leave | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Web-based management | Yes |
|---|---|
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Unified static configuration | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
