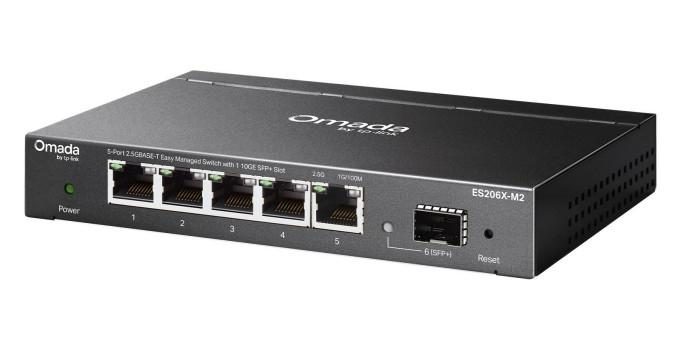

TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
TP-LinkModel ES206X-M2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Flash memory
- 64 MB
- Mean time between failures (MTBF)
- 1223587 h
Overview
TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a mean time between failures (mtbf) of 1223587 h. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Mean time between failures (MTBF) is 1223587 h. Firmware upgradeable is Yes. Virtual LAN features is MTU VLAN, Port-based VLAN. Packet buffer memory is 0.64 MB. Heat dissipation is 19.21 BTU/h. Switch type is Managed. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Flash memory | 64 MB |
|---|---|
| Mean time between failures (MTBF) | 1223587 h |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Power consumption (max) | 5.63 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Width | 158 mm |
|---|---|
| Depth | 100.7 mm |
| Height | 25.4 mm |
| Weight | 520 g |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 19.21 BTU/h |
|---|
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 45 Gbit/s |
| Forwarding rate | 33.48 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Packet buffer memory | 0.64 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 1 |
| Switch layer | L2 |
|---|---|
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Product colour | Black |
|---|---|
| Form factor | Desktop/Wall-Mounting |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
