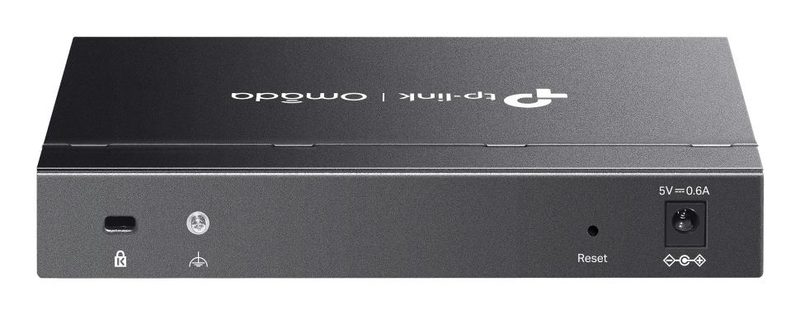

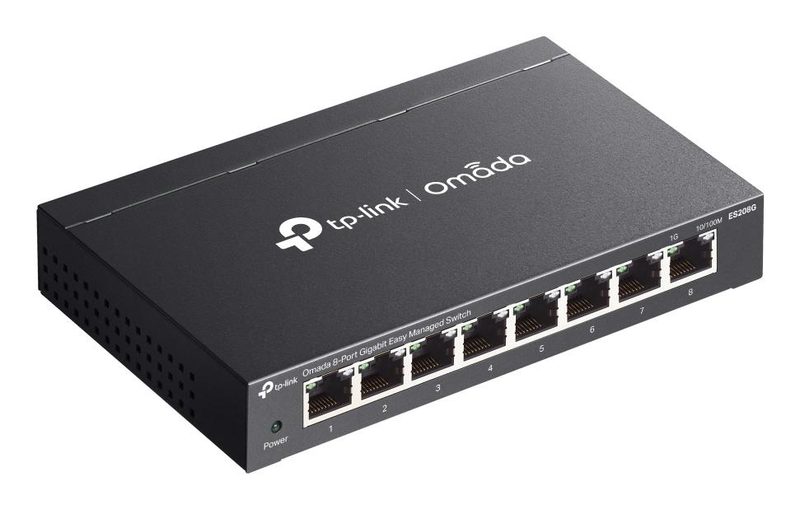

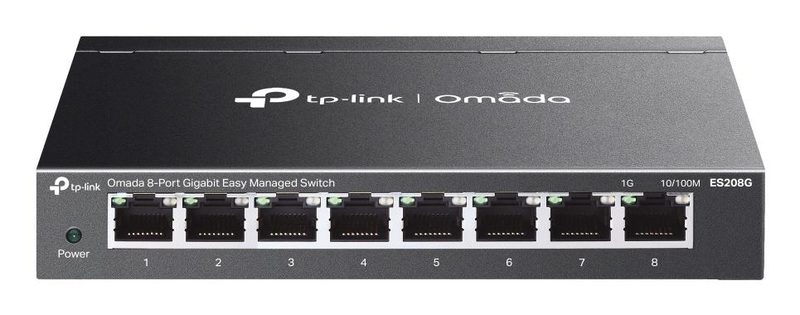

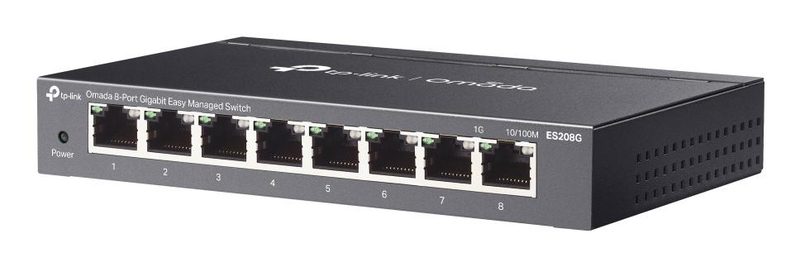

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-LinkModel ES208G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC adapter included
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- User guide
- Yes
Overview
TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a mean time between failures (mtbf) of 1141726 h and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Mean time between failures (MTBF) is 1141726 h. Fanless is Yes. Firmware upgradeable is Yes. Surge protection voltage is 6 kV. Number of VLANs is 32. User guide is Yes. Virtual LAN features is MTU VLAN, Port-based VLAN, Tagged VLAN. Packet buffer memory is 4 MB. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Switch type | Managed |
| User guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|---|
| Surge protection | Yes |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 1141726 h |
| Width | 158 mm |
|---|---|
| Depth | 100.7 mm |
| Height | 25.4 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 9.09 BTU/h |
|---|
| Power consumption (max) | 2.7 W |
|---|---|
| Input current | 0.6 A |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power source | DC |
| Power over Ethernet (PoE) | No |
| Surge protection voltage | 6 kV |
| Fanless | Yes |
|---|
| Stackable | No |
|---|---|
| Product colour | Black |
| Rack mounting | No |

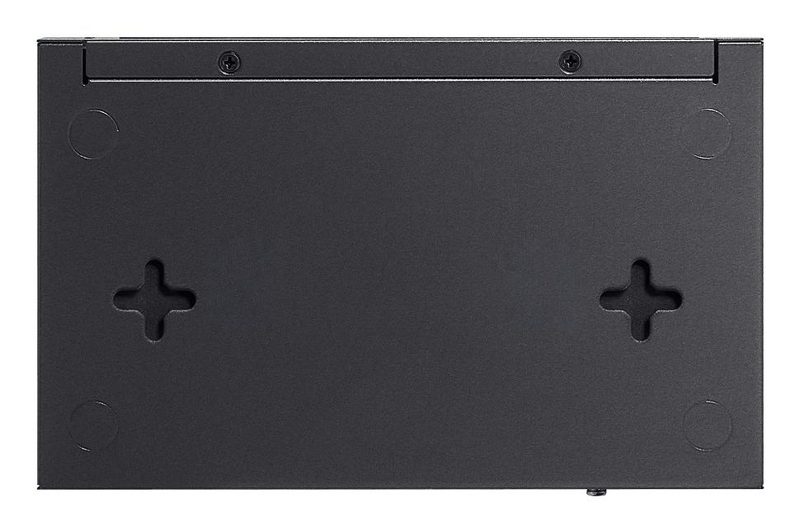

| Wall mountable | Yes |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Loop protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Fast leave | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Web-based management | Yes |
|---|---|
| Switch layer | L2 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Unified static configuration | Yes |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
