TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black
TP-LinkModel ES210GP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Product colour
- Black
Overview
TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black is a TP-Link switches & adapter with a ethernet lan data rates of 10,100,1000 Mbit/s and a number of vlans of 4000. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN data rates is 10,100,1000 Mbit/s. Number of VLANs is 4000. Virtual LAN features is MTU VLAN, Port-based VLAN, Tagged VLAN. Packet buffer memory is 0.5 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Managed |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | DIN rail |
| Cables included | Power |
|---|---|
| Quick start guide | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 63 W |
| Input current | 1.31 A |
|---|---|
| DC input voltage | 53 V |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Multicast support | Yes |
|---|
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 MB |
| Transmission distance (max) | 0.25 km |
|---|
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 4000 |

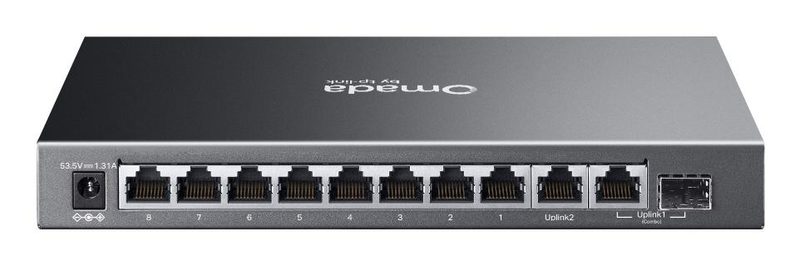

| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Web-based management | Yes |
|---|---|
| Switch layer | L2 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
