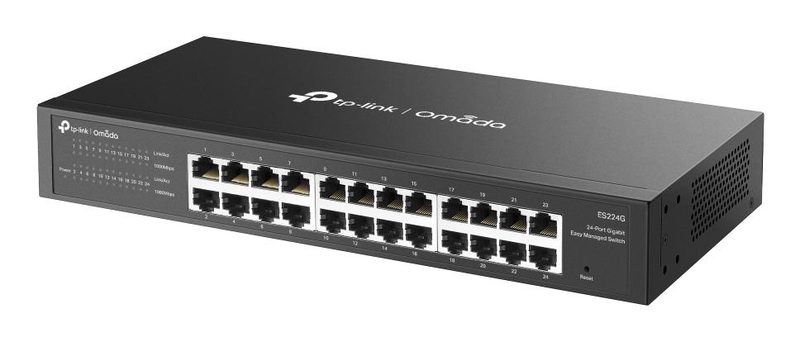

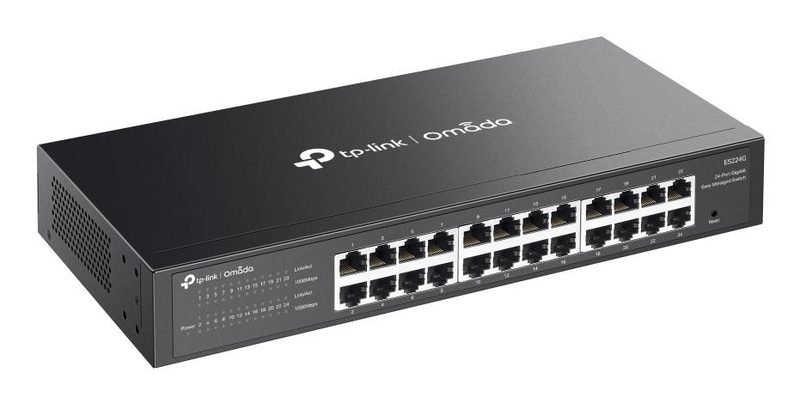

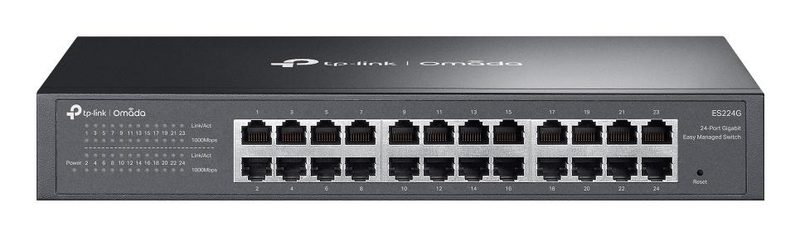

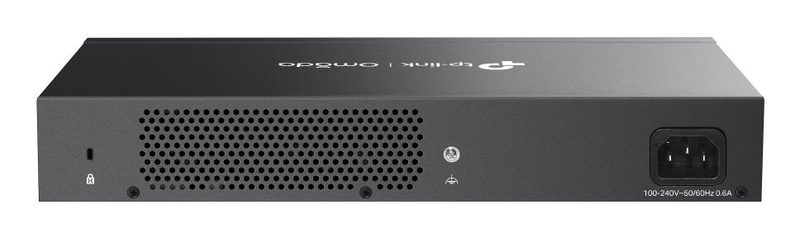

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-LinkModel ES224G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Managed
- Product colour
- Black
- Rack mounting
- Yes
Overview
TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a fanless of Yes and a firmware upgradeable of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Fanless is Yes. Firmware upgradeable is Yes. Surge protection voltage is 6 kV. Number of VLANs is 32. User guide is Yes. Virtual LAN features is MTU VLAN, Port-based VLAN. Packet buffer memory is 4 MB. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Switch type | Managed |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Auto MDI/MDI-X | Yes |
|---|---|
| Surge protection | Yes |
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Cables included | AC |
|---|---|
| Rack mount kit | No |
| User guide | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power source | AC |
| Surge protection voltage | 6 kV |
| Fanless | Yes |
|---|
| Multicast support | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| VLAN support | Yes |
|---|---|
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Fast leave | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Web-based management | Yes |
|---|---|
| Switch layer | L2 |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Unified static configuration | Yes |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
