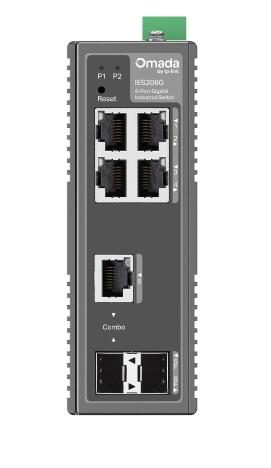

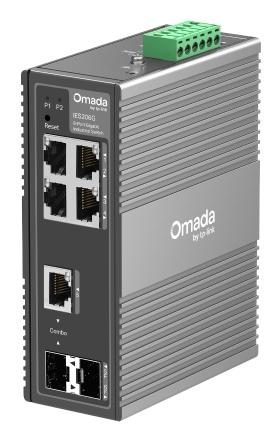

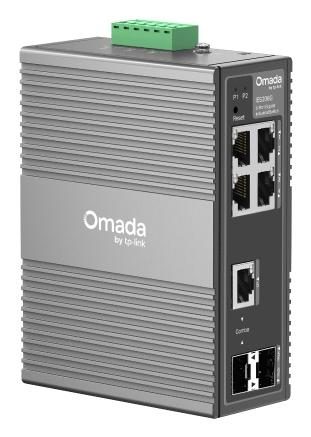

TP-Link Omada IES206G network switch Managed Gigabit Ethernet (10/100/1000) Black
TP-LinkModel IES206G
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- FCC, CE, RoHS
- Power supply included
- Yes
- DC input voltage
- 9 - 60 V
Overview
TP-Link Omada IES206G network switch Managed Gigabit Ethernet (10/100/1000) Black is a TP-Link switches & adapter with a certification of FCC, CE, RoHS and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHS. Fanless is Yes. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. Link aggregation is Yes. Spanning tree protocol is Yes. DIN rail mounting is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | FCC, CE, RoHS |
| Power supply included | Yes |
|---|---|
| DC input voltage | 9 - 60 V |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 129 mm |
|---|---|
| Depth | 95 mm |
| Height | 45 mm |
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Web-based management | Yes |
|---|---|
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Fanless | Yes |
|---|
| Product colour | Black |
|---|---|
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Multicast support | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
