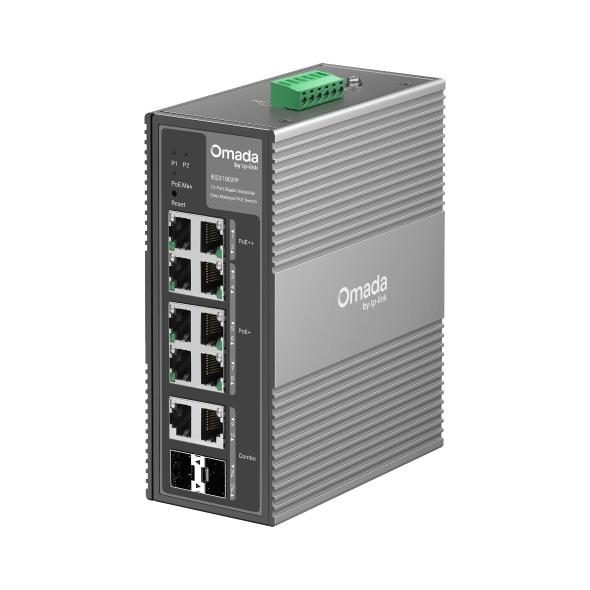

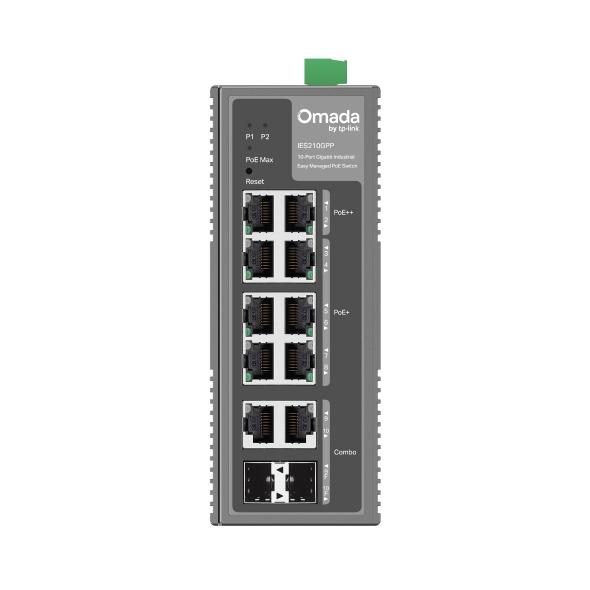

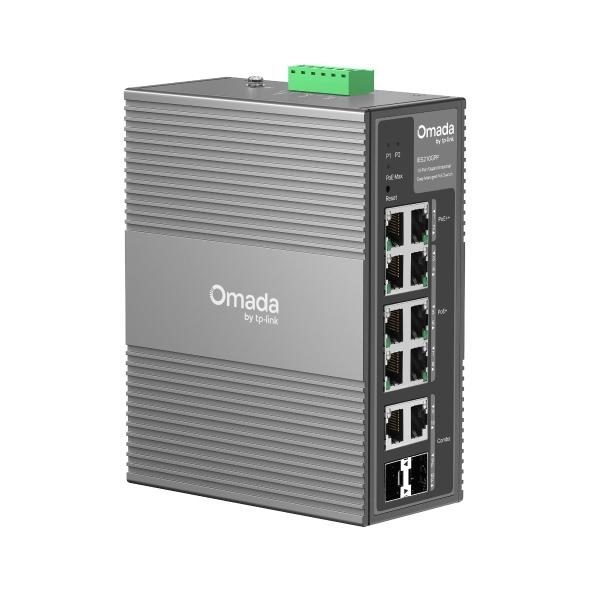

TP-Link Omada IES210GPP(UN) network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Grey
TP-LinkModel IES210GPP(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Product colour
- Grey
- Rack mounting
- Yes
Overview
TP-Link Omada IES210GPP(UN) network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Grey is a TP-Link switches & adapter with a ethernet lan data rates of 10,100,1000 Mbit/s and a number of vlans of 4000. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN data rates is 10,100,1000 Mbit/s. Number of VLANs is 4000. Packet buffer memory is 4000 MB. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. Total Power over Ethernet (PoE) budget is 240 W. Loop protection is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Grey |
|---|---|
| Rack mounting | Yes |
| Form factor | DIN rail |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 155 mm |
|---|---|
| Depth | 120 mm |
| Height | 60 mm |
| LED indicators | Yes |
|---|
| Web-based management | Yes |
|---|---|
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Total Power over Ethernet (PoE) budget | 240 W |
| DC input voltage | 12 - 57 V |
|---|---|
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Multicast support | Yes |
|---|
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4000 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
